Aqualisa SIERRA - Servicing and Maintenance Access

7

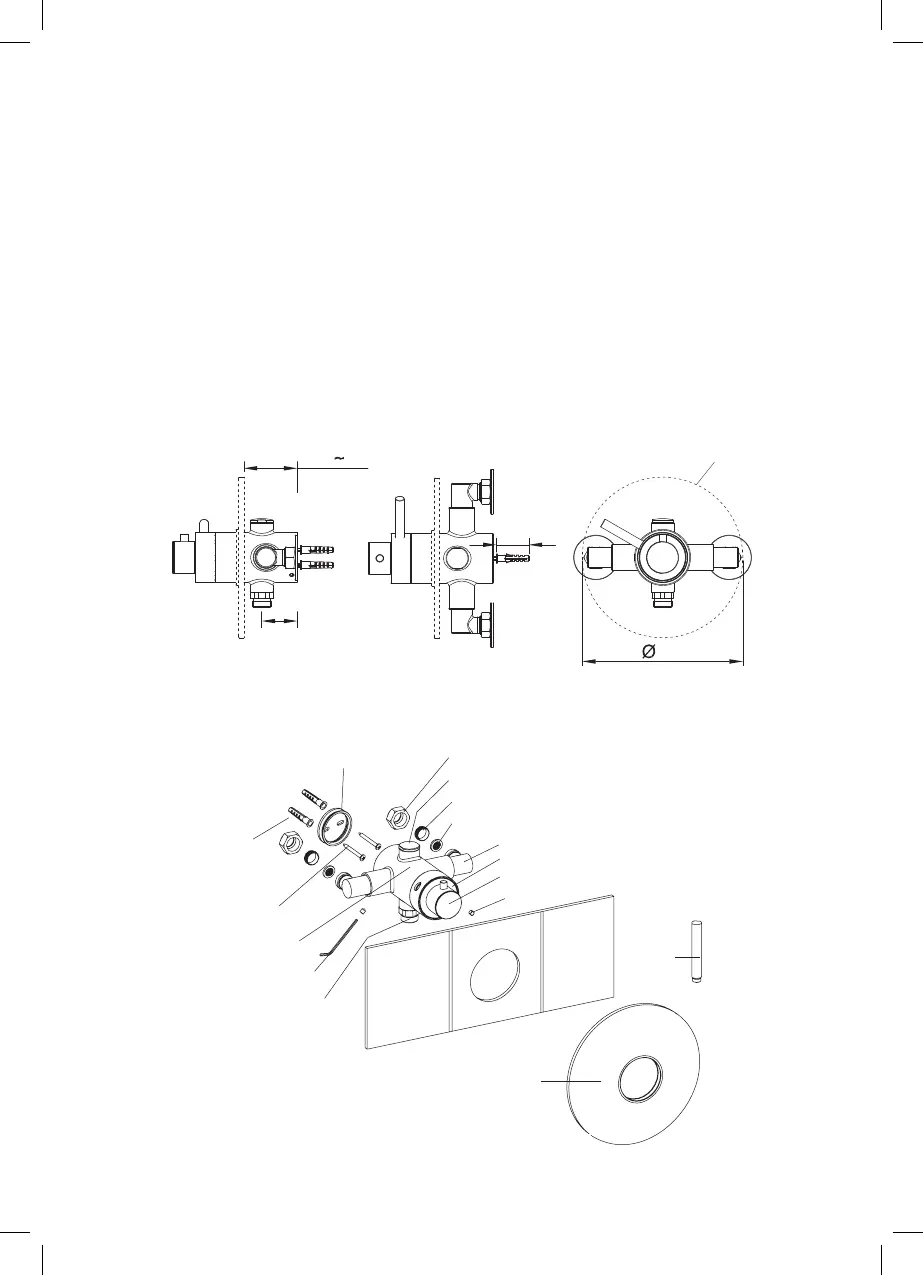

IMPORTANT: Servicing and Maintenance access
To enable sucient access for ease of installation, servicing and
maintenance ensure:
Hot and cold feeds to the inlet elbows of the valve are from
falling or rising pipe work. (i.e. Elbow connections pointing
upwards or downwards).
The inlet elbows are wound in as far as possible to keep the pipe
centres to a minimum.
54 75
40
29
180
Wall plate diameter
Valve body
Temperature control handle
Grub screws
Blanking plug
Fixing nuts
Wall screws
Hexagonal key
Outlet connector
Mounting bracket
Wall plugs
Filtered washers
Elbows
Wall plate
Copper olives
On/o and flow control handle
On/O
and flow
lever
Wall plate diameter
