12 Aquatic Industries, Inc.
PLEASE SEE DIAGRAMS 4A AND 4B. (PAGE 13)
BONDING WIRE: Connect a #8 bare copper bonding wire from the pump motor to the heater and
then to the cold water plumbing or other suitable ground. Grounding is required.
For built-in and custom units, install to permit access for servicing.

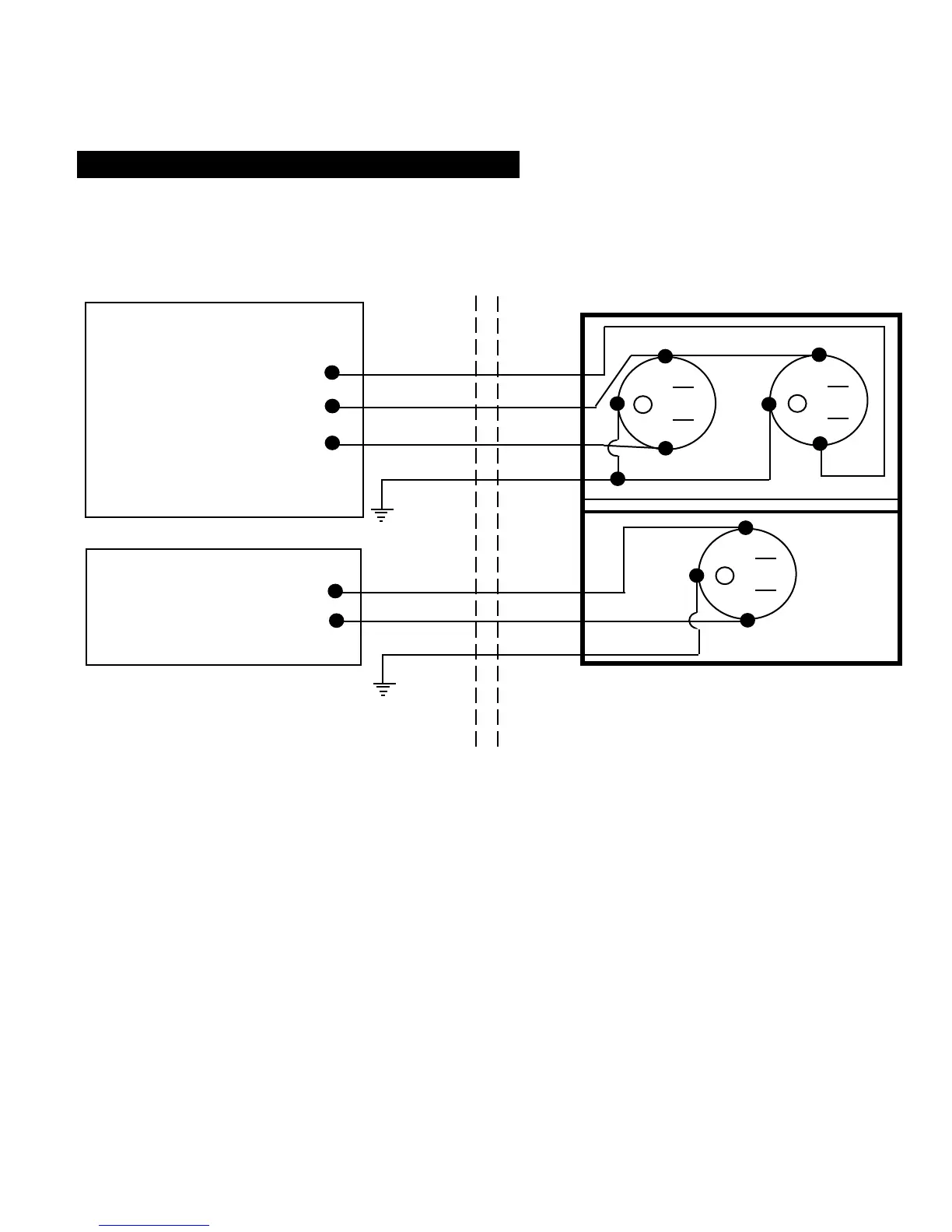

BREAKER PANEL
15 AMP
2 POLE
GFCI
BREAKER
15 AMP
1 POLE
GFCI BREAKER
BLOWER
MAIN
HEATER
WHITE
RED
BLACK
GROUND
WHITE
BLACK
GROUND
INSTALLATION INSTRUCTIONS
ELECTRICAL INSTALLATION (continued):
To Next Page
