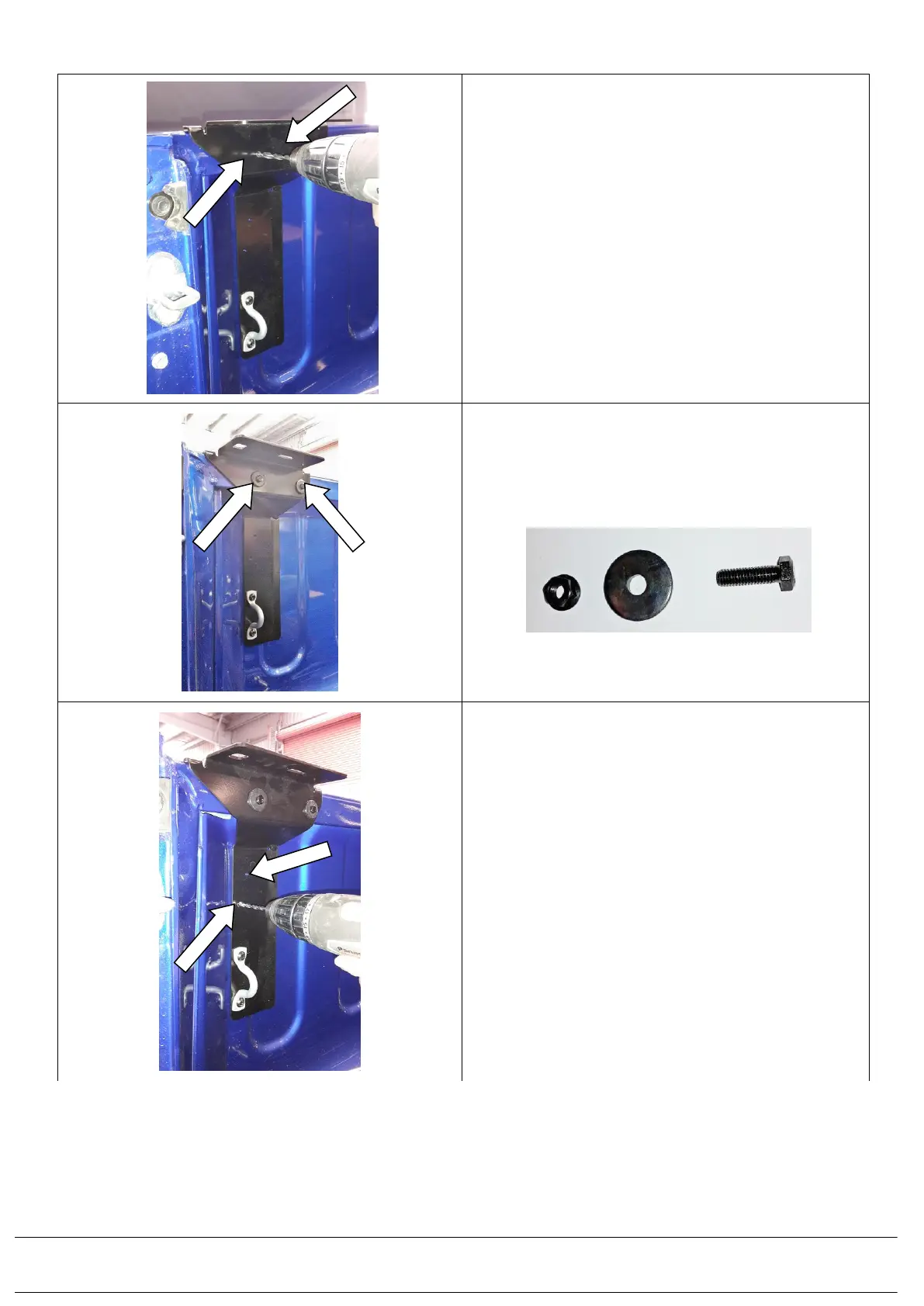

2.18) Drill 6.5mm holes with a 12mm deep drill stop
fitted through the existing holes at the top of the
rear brackets where they mate up to the channel
lip on the vehicle’s tub. Remove any swarf. Apply
rust inhibitor (665505) to the holes.
2.19) Fit M6 x 20 mm hex bolts (6151213) with M6 x
25mm flat washers (4584310) under their heads
through the bracket holes and on the inside of the
tub lip, secure these in place with M6 wizzlock
flange nuts (6151173). Do these up to 9Nm.
2.20) With a 8mm drill stop fitted (! IMPORTANT !
DO NOT EXCEED THIS LENGTH, TO AVOID
DRILLING THROUGH THE TUB OUTSIDE), drill
5.2mm holes through the 2 holes in the middle of
the rear brackets. Remove any swarf. Apply rust
inhibitor (665505) to the holes.
