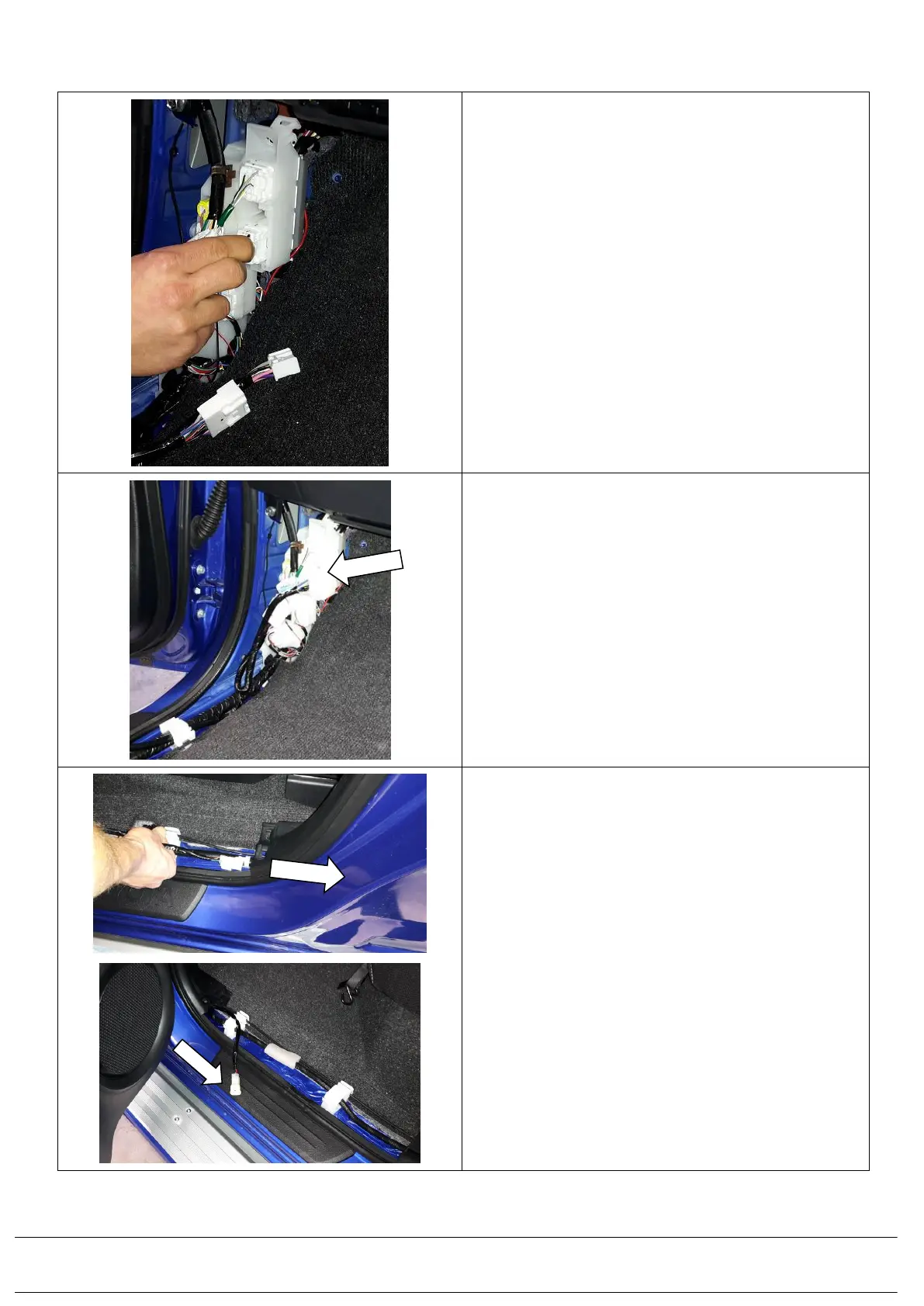

3.11) Disconnect the original vehicle connector from the
receptacle in the kick panel area as shown.
3.12) Connect the vehicle’s loom connector to the patch
loom and plug the canopy main patch loom into the
female socket in the car.
3.13) At the “B” pillar, at the rear of the front door, feed
the 4 pin rear end connector of the main patch
loom under the floor area of the inner “B” pillar
plastic trim panel and pull it out at the bottom of
the rear passenger door.
