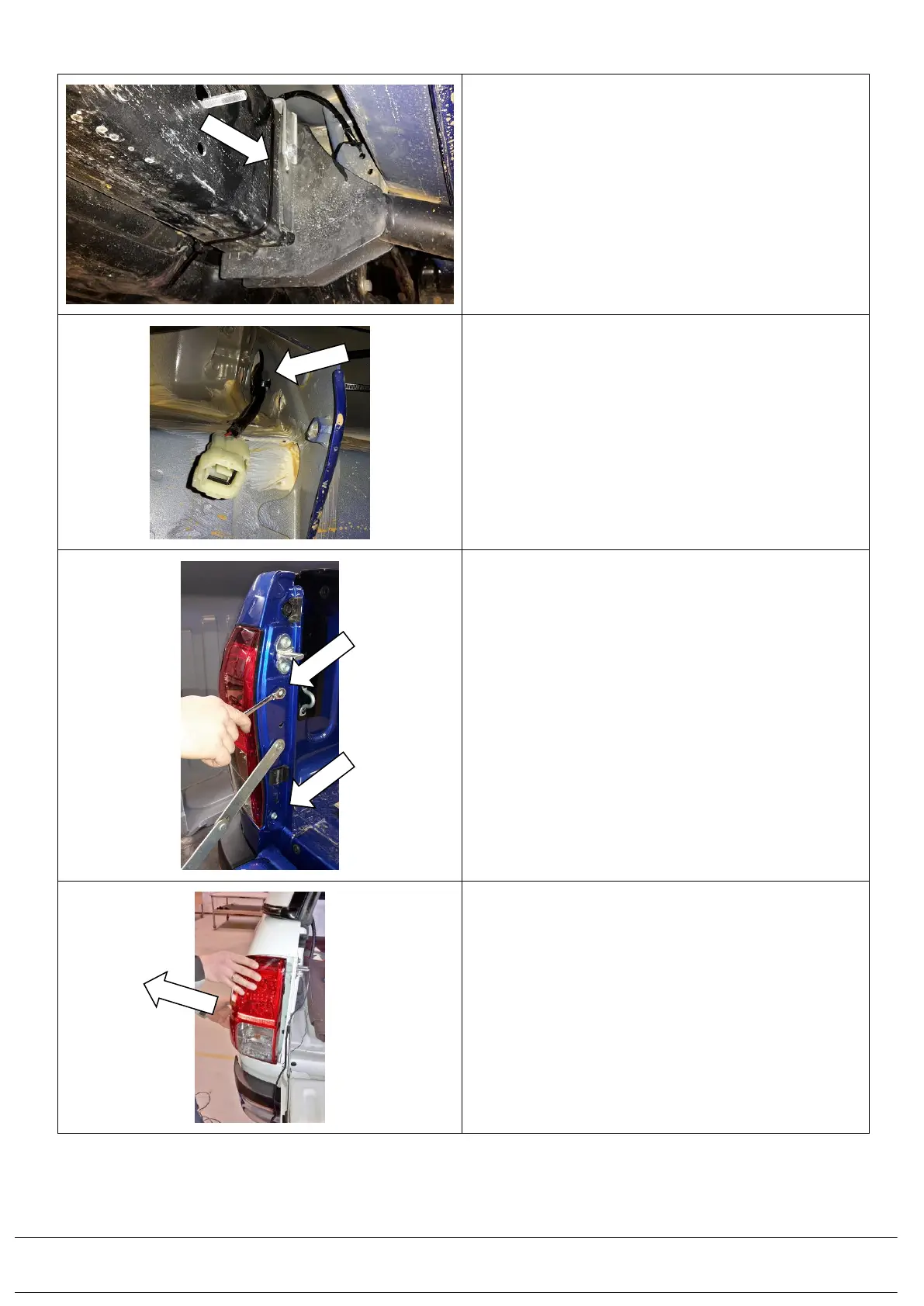

3.26) Assembly a second 450mm long cable tie to the
loom up on top of the chassis rail near the bracket
as shown, ensuring this is NOT tied to brake or
fuel lines.
3.27) Poke the main patch loom connector end through
the hole in the bracing panel in the LH lower rear
corner of the vehicle cabin sill area. Cable tie this
to the hole in the panel with a 200mm long cable
tie.
3.28) Undo the 2 rear screws holding the LH rear tail
light assembly.
3.29) Pull the light outwards to the side of the vehicle to
disengage it from the tub.
