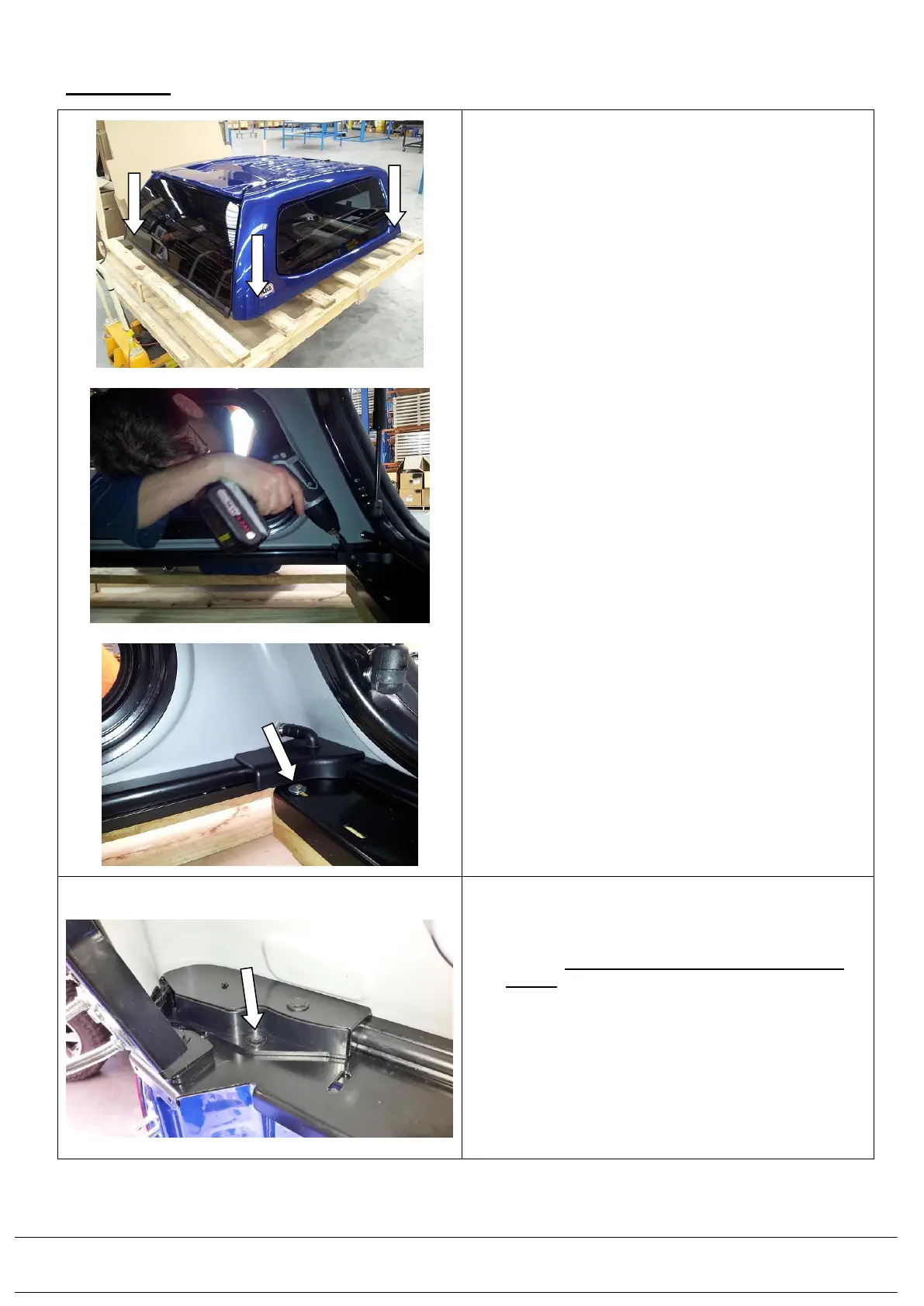

SECTION 4: FITTING THE CANOPY
4.0) Unscrew the canopy on the pallet by removing the 4
wood screws in each corner. Gain access to screws
via opening the rear door and front lift up window.
4.1) The front lift up window can be unlatched by
reaching in underneath the canopy on the pallet
and pushing forward on the glass towards the front
of the canopy to push the latch buttons upwards on
both latches to unlock the window, to gain access.
4.2) With the rear door of the canopy open, unscrew the
M6 x 25 bolt and nut retaining the plastic injection
moulding on the inside LH rear corner of the
canopy. Retain the screw, nut and washers for
re-use.
Repeat on the RH side of the canopy.
!! THIS MUST BE DONE BEFORE THE
CANOPY IS FITTED OR IT WILL FOUL
ON THE MOUNTING BRACKETS !!
