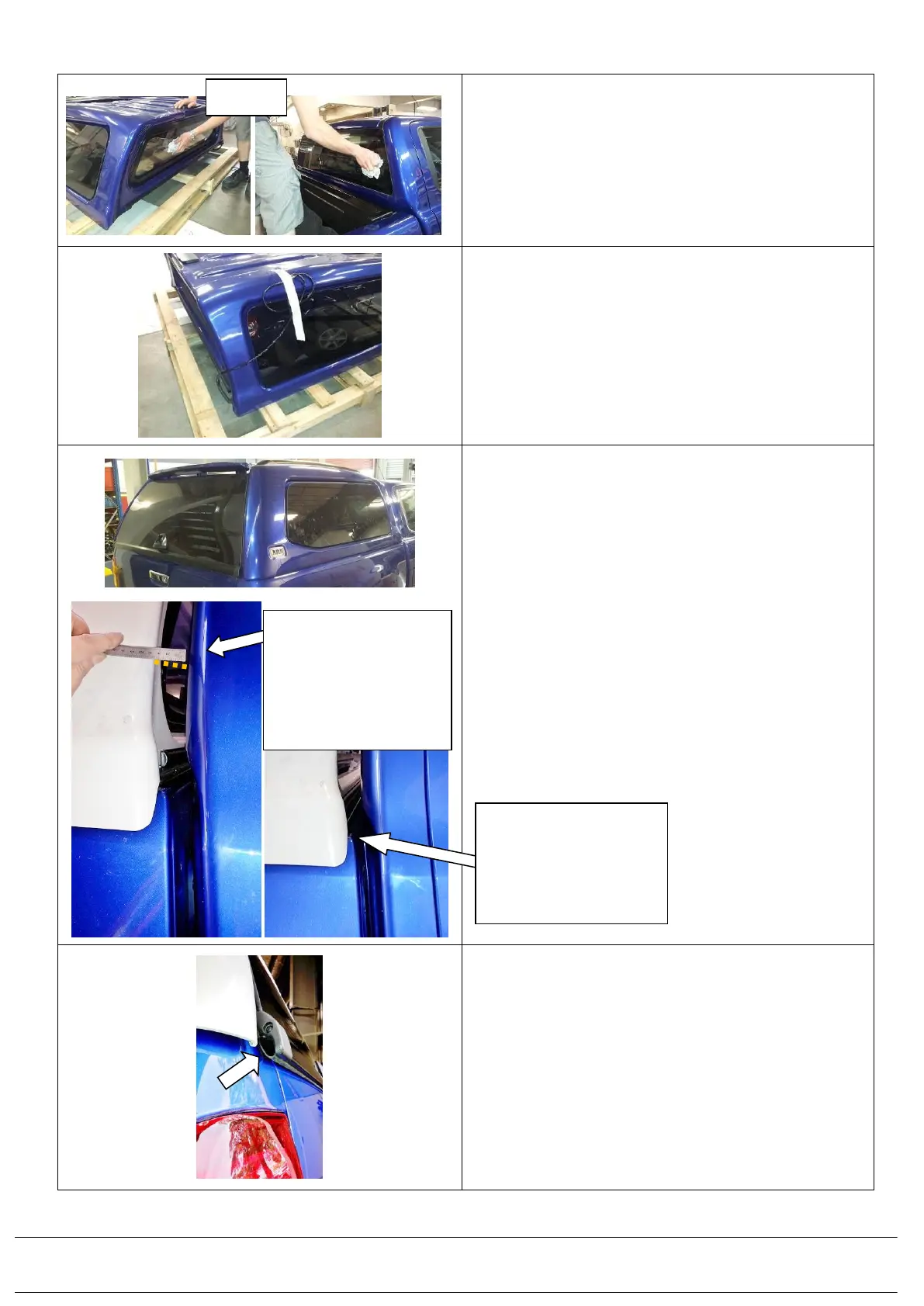

4.3) Clean the front window of the canopy on the
outside.
4.4) Clean the rear window of the vehicle’s cabin.
4.5) Close the vehicle’s tailgate.
4.6) Cut the cable tie holding the wiring harness to the
window frame bracket inside the front corner of the
canopy. Using masking tape, tape the harness up
over the front LH corner of the canopy.
4.7) Close the canopy’s rear door. Using 4 people, lift
the canopy from the pallet and place it carefully
down onto the vehicle’s tub with the front rail
moulding at the front of the canopy, level to the front
rail on the vehicle’s tub.
Be careful not to dislodge the foam tape around
the inside edge of the canopy shell’s lip
perimeter.
Take care during this process to ensure the trim
edge of the canopy shell is lowered down evenly
and is not contacting the vehicle tub to avoid
paint damage.
When re-positioning the canopy lift the canopy,
to avoid dislodging the weather seal
underneath.
4.8) Position the canopy rearward so the lower rear door
sash seal contacts the edges of the tub corners
above the brake lights on the tub evenly. Measure
with a ruler between the lower door sash to the tub
to ensure this is even on both sides.
Between the cabin
and the canopy,
there should be
35mm gap or
more from the front
pillar.
The lower edge of
the canopy sits
3mm to 4mm back
from the front corner
of the tub.
