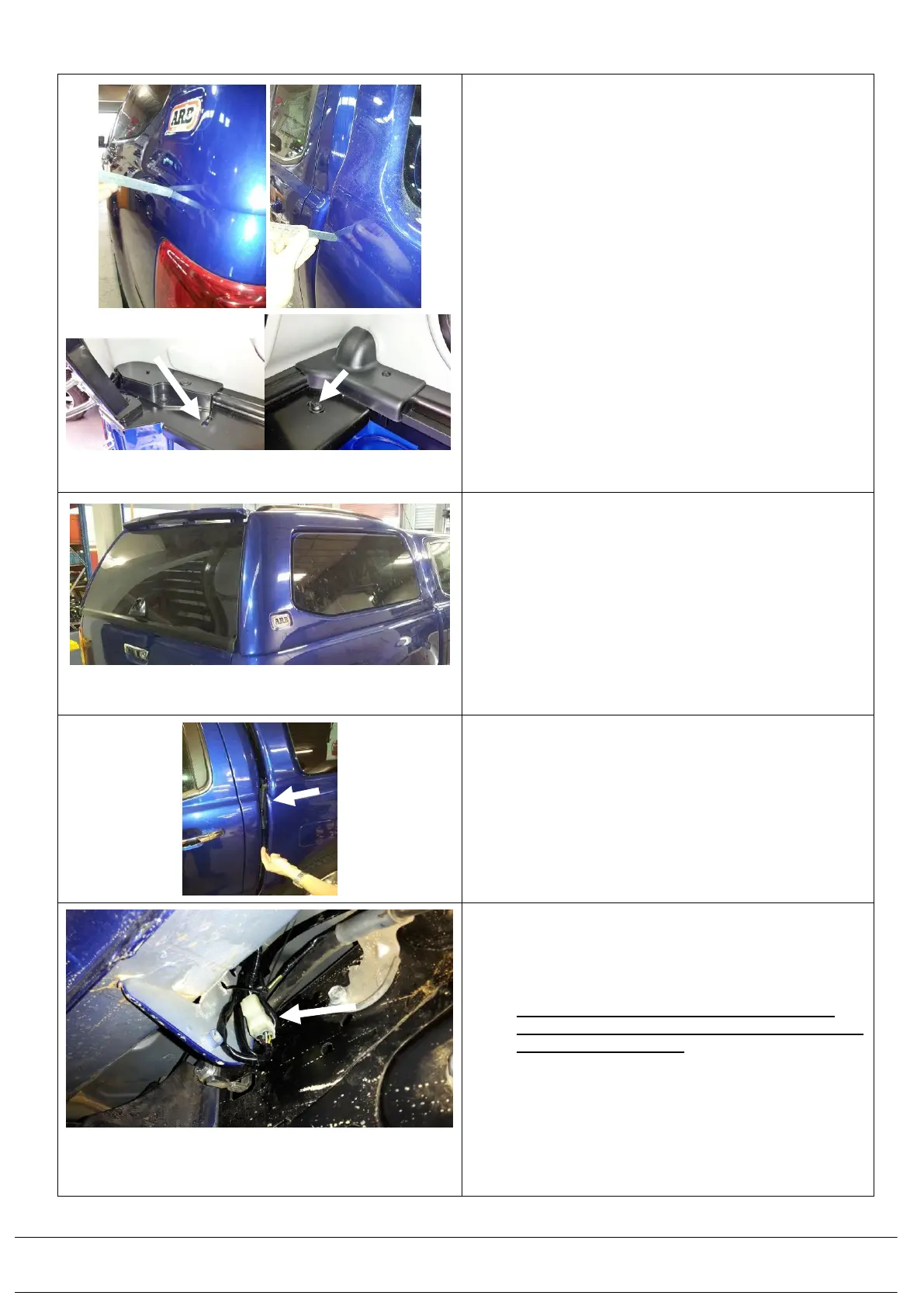

4.9) Measure the trim edges of the canopy at the rear
sides and at the front both sides, to the vehicle’s
tub and make this measurement even on both
sides of the canopy.
Look in the interior and ensure the mounting holes
in the steel mount rails on the canopy align to
holes in front tub corner mounting brackets and
the rear corner tub mounting brackets on both
sides of the vehicle.
4.10) Stand back and walk around the canopy and
check uniform balanced fit to the tub and cabin.
• The canopy is central on the Ute body.
• Alignment between cab and canopy is even both
sides
• The rear door seals against the tailgate evenly
both sides without excessive force on glass to
close.
• The gap is even between the door and shell on
both sides.
4.11) Drop the canopy harness loom down between the
cabin and the tub on the LH side.
4.12) Connect the canopy wiring connector to the 4 pin
connector of the canopy main patch wiring
harness (668PJ019), at the rear lower LH corner
of the sill area at the rear of the vehicle’s cabin.
4.13) !! Press the key fob of the car to the unlock
position TWICE. If this is NOT done the canopy
door will not operate !!
4.14) Go to the door and press the door push button
pad. Check the door opens and the actuator
functions to unlock the canopy door
4.15) Turn the interior light to the position that the
interior light turns off when the door is closed and
comes on when the door is opened.
