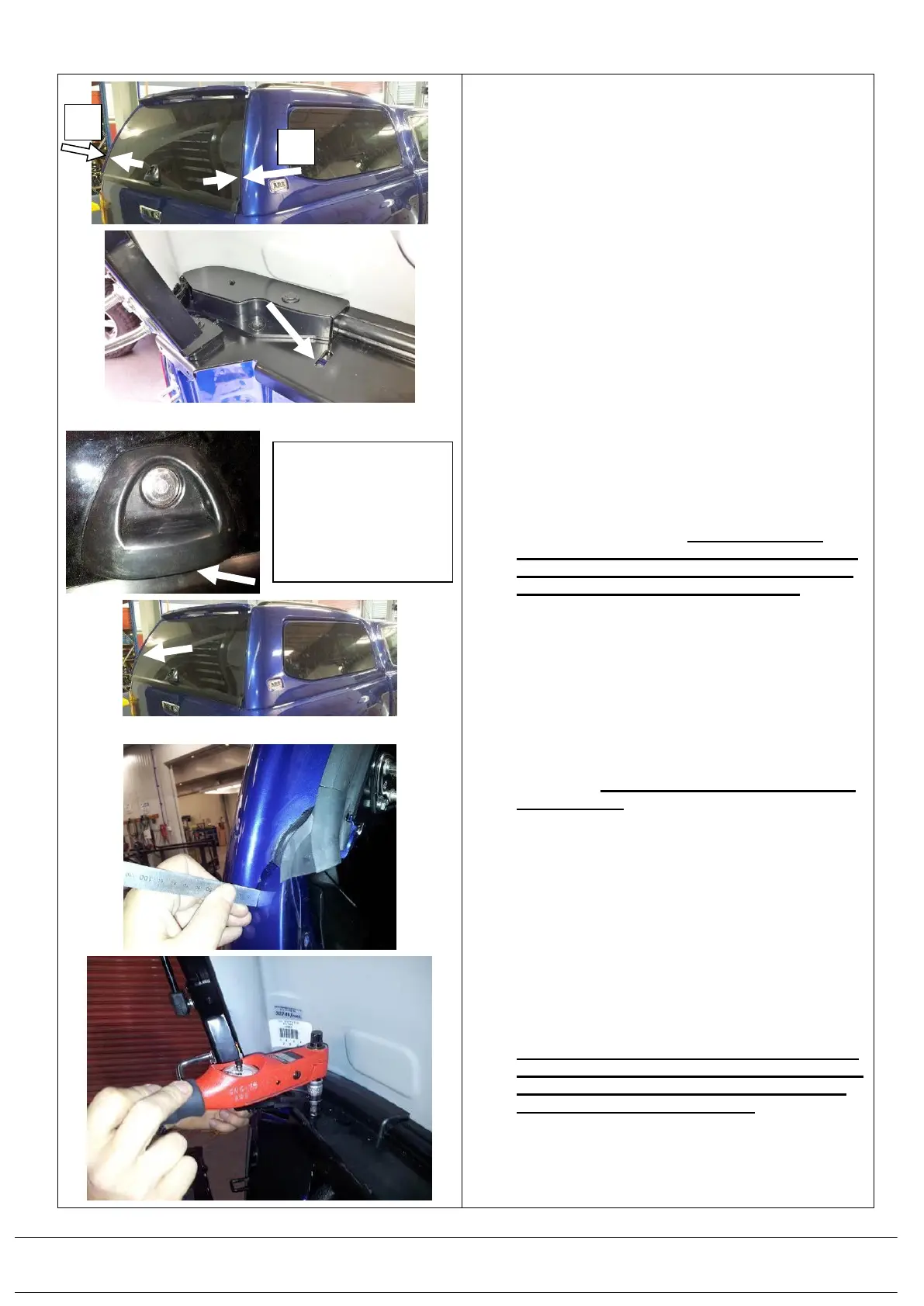

4.16) 2 people are required for this step. Check the gap
on the rear door on the sides of the glass is even
to the canopy shell. This can be made even by
pushing out or in on the canopy shell mount rails
inside and doing up the screws.
Using M8x25 Torx pan head screw and M8x19mm
(smaller) washer under the head, screw the
canopy down at the rear, tightly, through the
canopy mount rail holes to the rear corner tub
mounting brackets with an M8 nyloc nut and M8
x25mm (larger) washer on the underside.
Repeat this on the opposite side.
4.17) It may be necessary now to adjust the canopy
aft to reduce the pressure on the lower door
edge seal and therefore the door actuator
mechanism to allow the door to open properly
and evenly both sides. In doing so please
ensure the best seal between the tailgate sash
seal on the canopy’s lower door edge and the
vehicle tub at the sides is maintained. 2 people
will be required for this to re-adjust the door glass
gap at the sides if the canopy has to be moved.
4.18) Check the gap of the canopy shell to the tub in the
rear corners. !!IMPORTANT!! The gap must not
be below 5mm. It should be even on both sides of
the canopy.
4.19) Once satisfied with door operation and the canopy
is even and set to the gaps required above, do up
the M8 Torx screws to 22Nm.
If there are issues with the rear door operation
being uneven on each side, refer to the section
entitled “Operational checks and adjustment
options for doors and windows”
