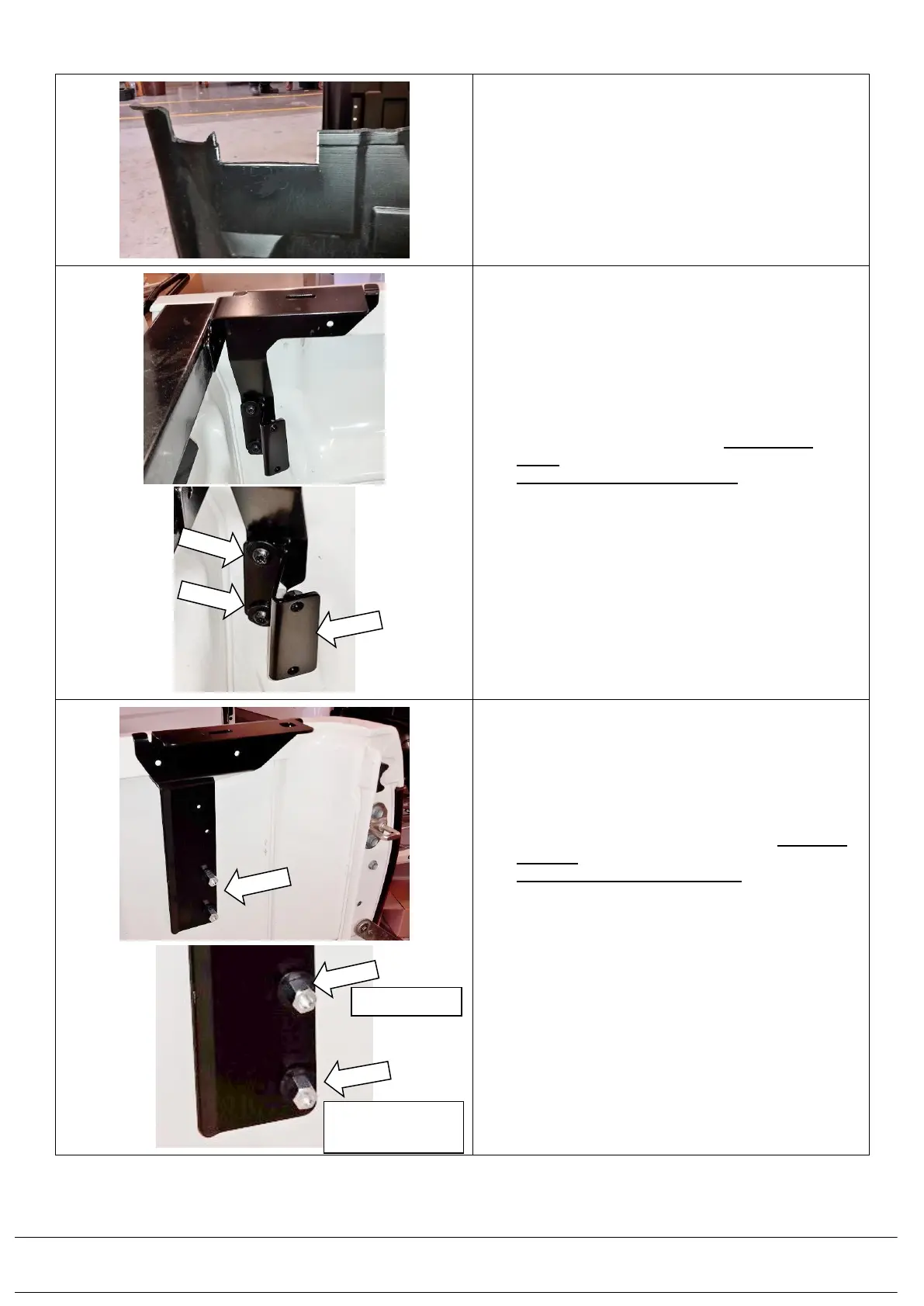

6.7) The completed trim in the rear corner should look
like that in the picture opposite.
6.8) Complete step 2.7 first. Ensure the bed liner
kit’s front corner brackets are mounted over the
canopy front corner tub mounting brackets. Place
the M8 x 25mm Torx bolts (6151625) from the
canopy hardware kit though the bed liner
front corner bracket (with no washers) on top
of the canopy front corner tub mounting
bracket. Ensure bolts holding the lower end of
the front corner bracket are tightened to
22Nm.
Complete all steps 2.8 to 2.15 to complete
assembly of the front tub mounting brackets.
6.9) Complete step 2.16 first. Then mount the lower
ends of the rear canopy tub mounting brackets
using the hex studs from the bed liner hardware
kit with the washer on the lower hex stud
against the bracket as per the bed liner fitting
instructions. Ensure bolts holding the lower
end of the rear corner brackets are tightened
to 22Nm.
Complete all steps 2.17 to 2.21 to finish the
assembly of the rear tub mounting brackets.
