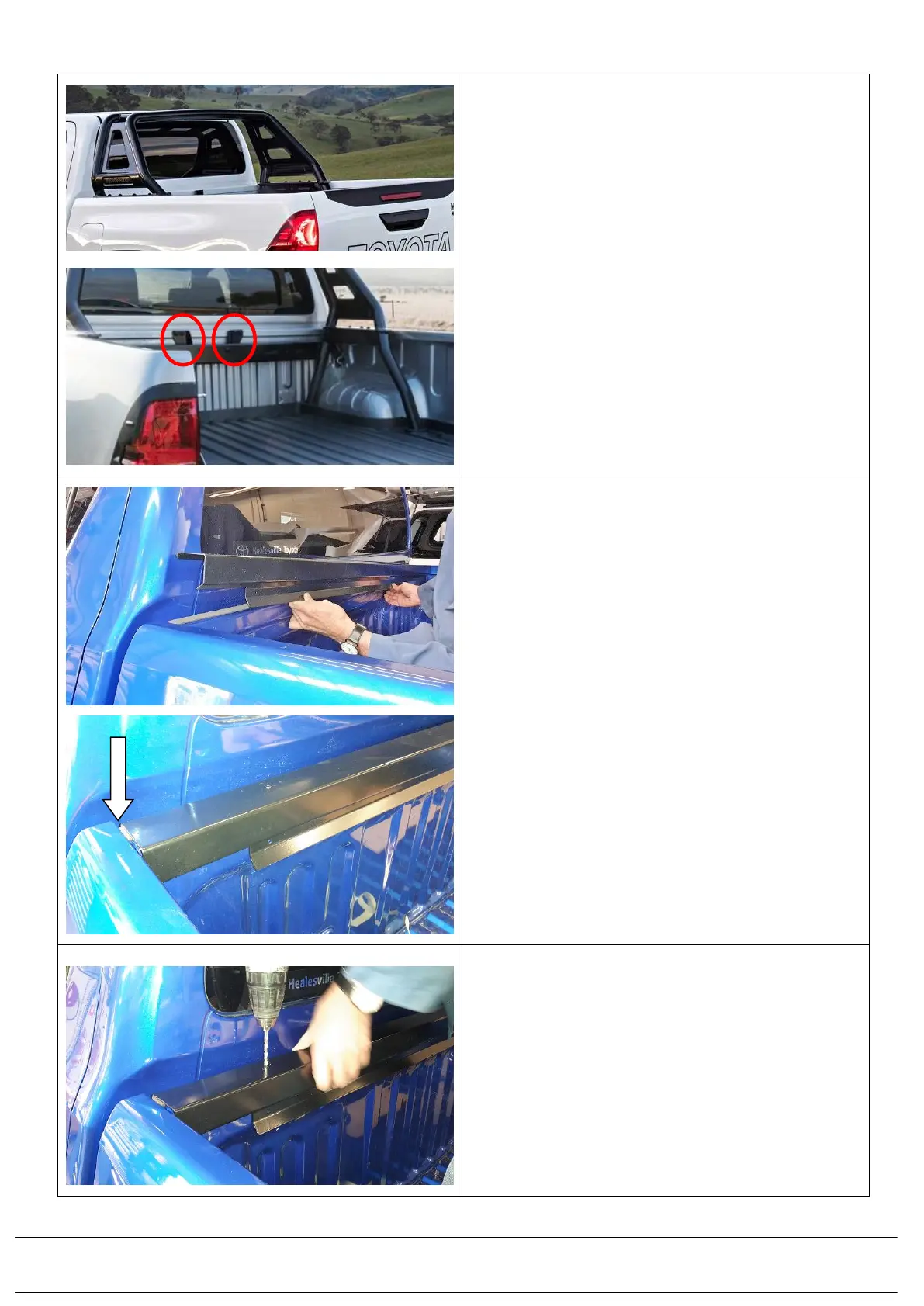

2.2) With Toyota Hilux Rugged, Rugged X and Rogue
Hilux models released in June 2018, once the sports
bar is removed there will be holes left in the front
head board of the tub. Cover the holes by using the
black sticker 665046, cut into two pieces to cover
the holes.
2.3) Fit the front head board rail bracket (668PD067)
down onto the front of the vehicle’s tub front panel.
Ensure the ends of this bracket align with an even
gap at the ends to the sides of the tub and the long
flange is facing inwards.
2.4) Drill down through the top side of the front head
board rail bracket through the 2 existing holes in
the bracket, to 5.2mm with a 12mm deep drill stop
fitted. Remove any swarf. Apply rust inhibitor
(665505) to the holes.
