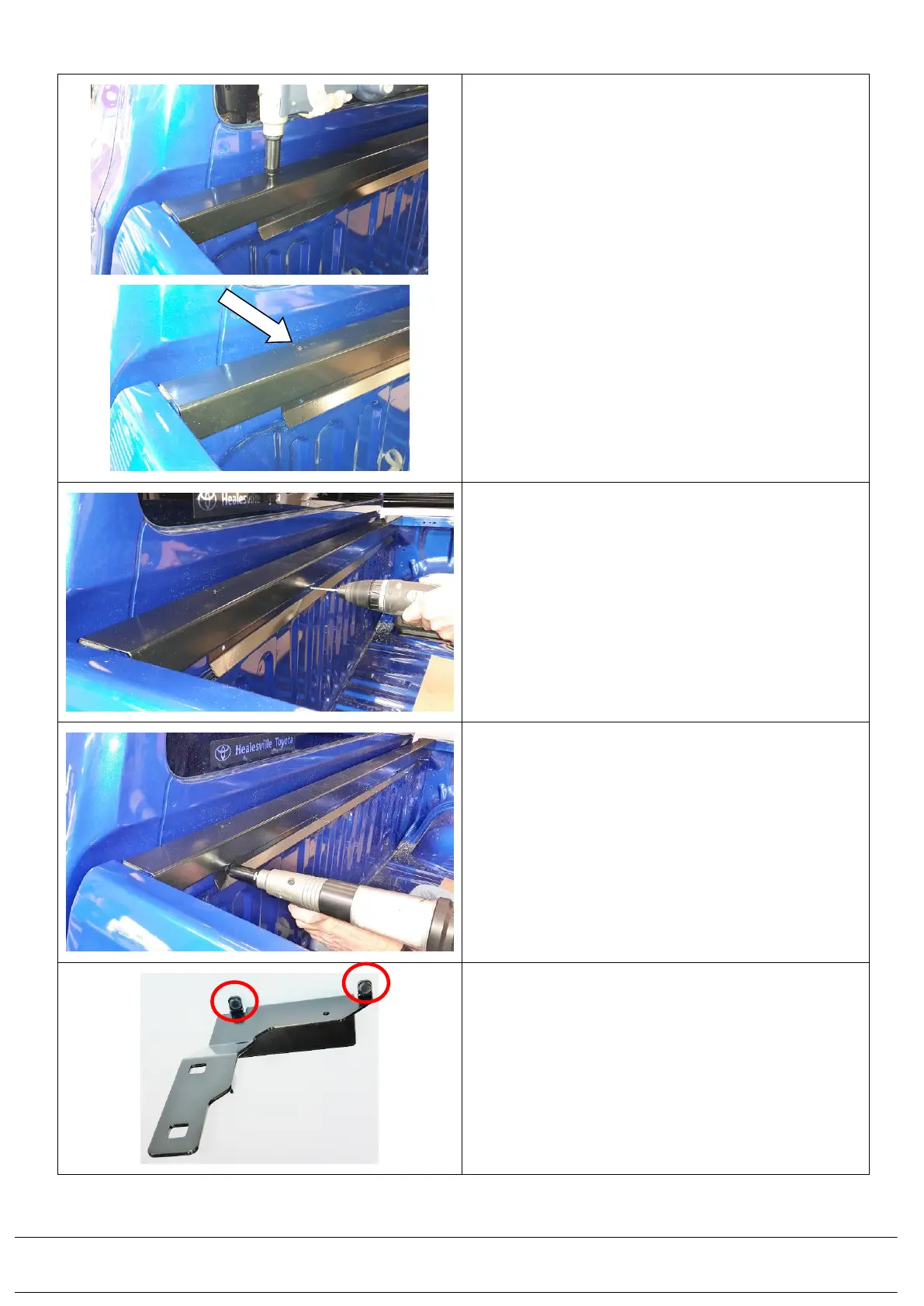

2.5) Install 2 rivets (6609087) down into the 2 holes,
through the front head board rail bracket and into
the front tub panel.
2.6) Drill through the 5 existing holes on the lower inside
flange of the front head board rail bracket with a
5.2mm drill with a 12mm deep drill stop fitted.
Remove any swarf. Apply rust inhibitor (665505) to
the holes.
2.7) Install 5 rivets (6609087) into the 5 holes drilled
through the front head board rail bracket into the
front tub panel.
2.8) To a pair of front corner tub mounting brackets
(668PD061R&L), apply self-adhesive bumpons
(665076) to the two tags on each bracket.
