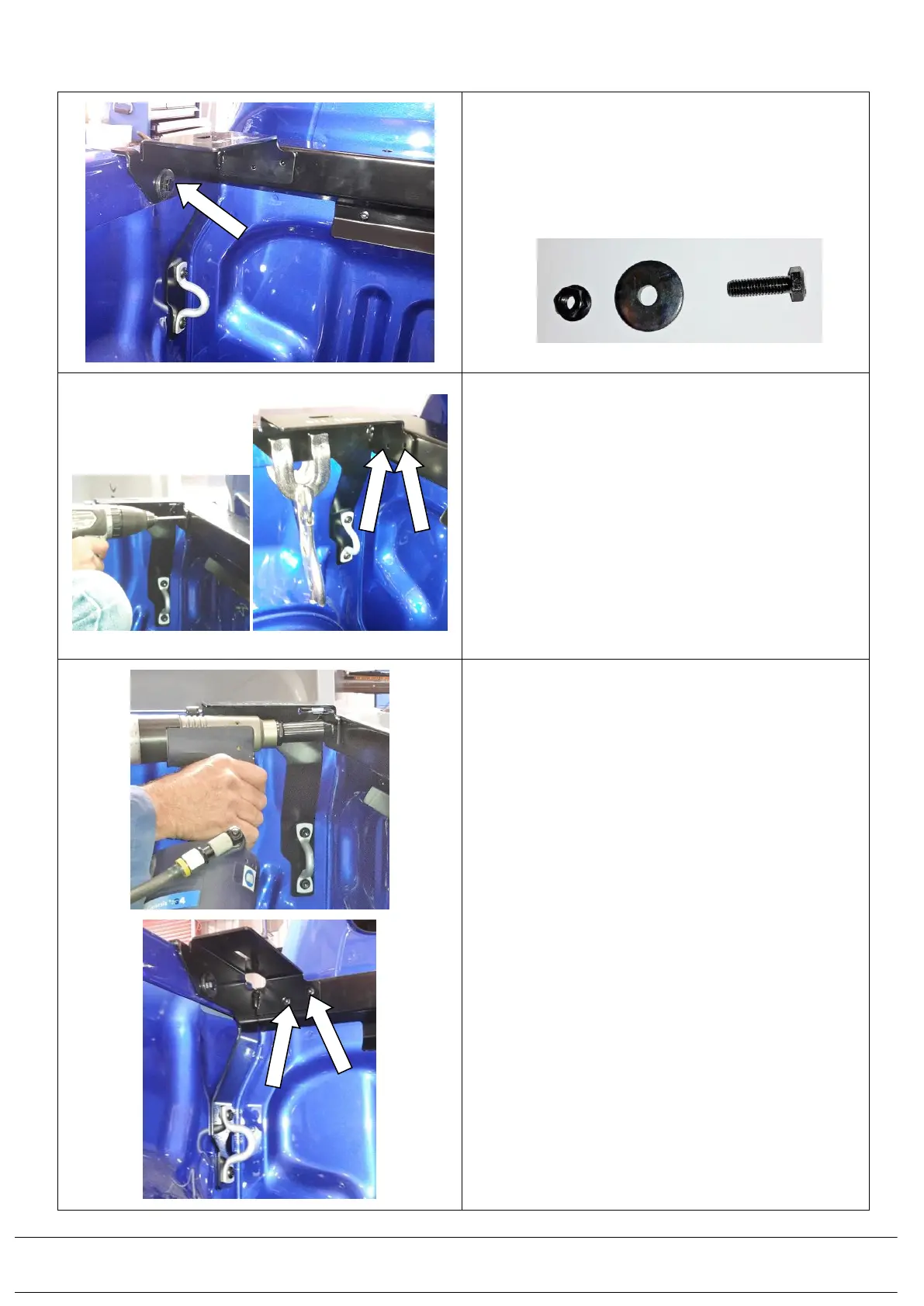

2.11) Fit an M6 x 20 mm hex bolt (6151213) with M6 x
25mm flat washer (4584310) under its head
through the bracket holes and inside the tub lip,
secure these in place with M6 wizzlock flange
nuts (6151173). Do these up to 9Nm on both
sides of the tub.
2.12) Drill through the 2 existing holes in the front
corner brackets in the face that rests against the
front head board rail bracket. Drill these 2 holes
out to 5.2mm drill with a 12mm deep drill stop
fitted. Remove any swarf. Apply rust inhibitor
(665505) to the holes.
2.13) Install 2 rivets (6609087) into the 2 holes drilled
through the front corner bracket into the front
head board rail bracket.
Repeat on the opposite corner of the tub.
