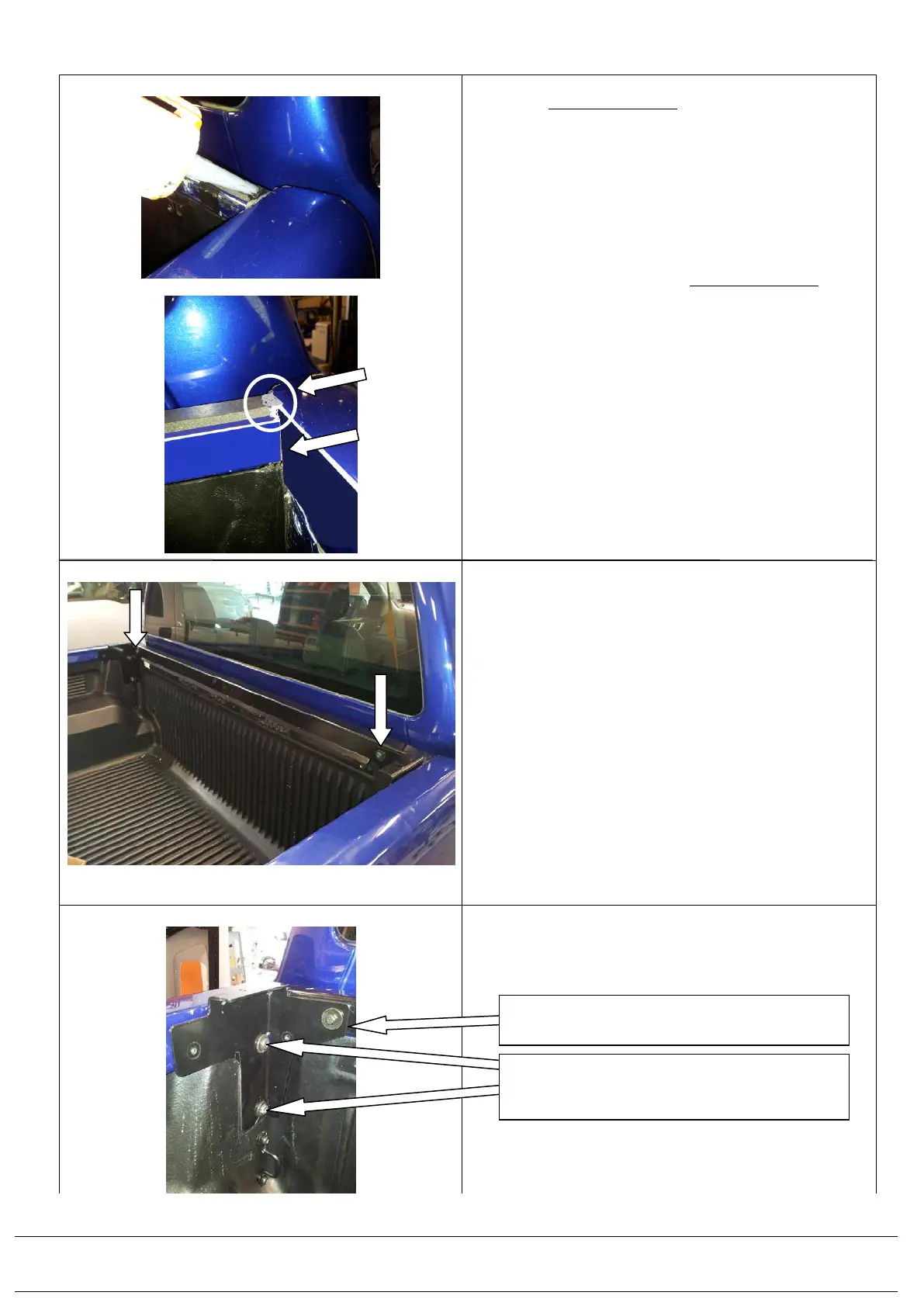

3.1) Apply neutral cure silicon to the ends of the foam
tape on both sides of the tub, and spatula this down
level to the top of the foam tape.
It is important that the area between the tape and the
sheet metal is also well sealed on the vertical end
faces of the foam tape about the width of the tape, in
front and behind the tape.
Spray water using a spray bottle, down the front
internal corner junction of the tub, to aid in applying
silicon cleanly. Then apply neutral cure silicon
around all sheet metal panel gaps and clean up.
Repeat this on the opposite side.
3.2) Place 668PD011 front tub mount rail over the front
of the tub, foam tape and top lip of the bed liner. The
“C” section shape of the bracket is to point down and
the small flange lip on the bracket is to be orientated
to the inside of the tub to retain the top edge of the
bed liner.
Align the holes in the end of the bracket with the 2
holes in the vertical face of the tub and locate it
centrally on the vehicle’s front tub rail.
3.3) Place in the LH front corner of the tub the front tub
mounting brackets (668PD027L) loosely fit screws
as shown.
Repeat using front tub mount bracket
(668PD027R) on the opposite RH side of the tub.
M6 x 20 Hex screw, M6 spring washer and M6
x 25mm flat washer. Do this up first.
Reuse from the bed liner hardware M8 x 25
Torx head screw (use T40 bit) and a new M8
x 25.4mm flat washer, in these 2 places.
