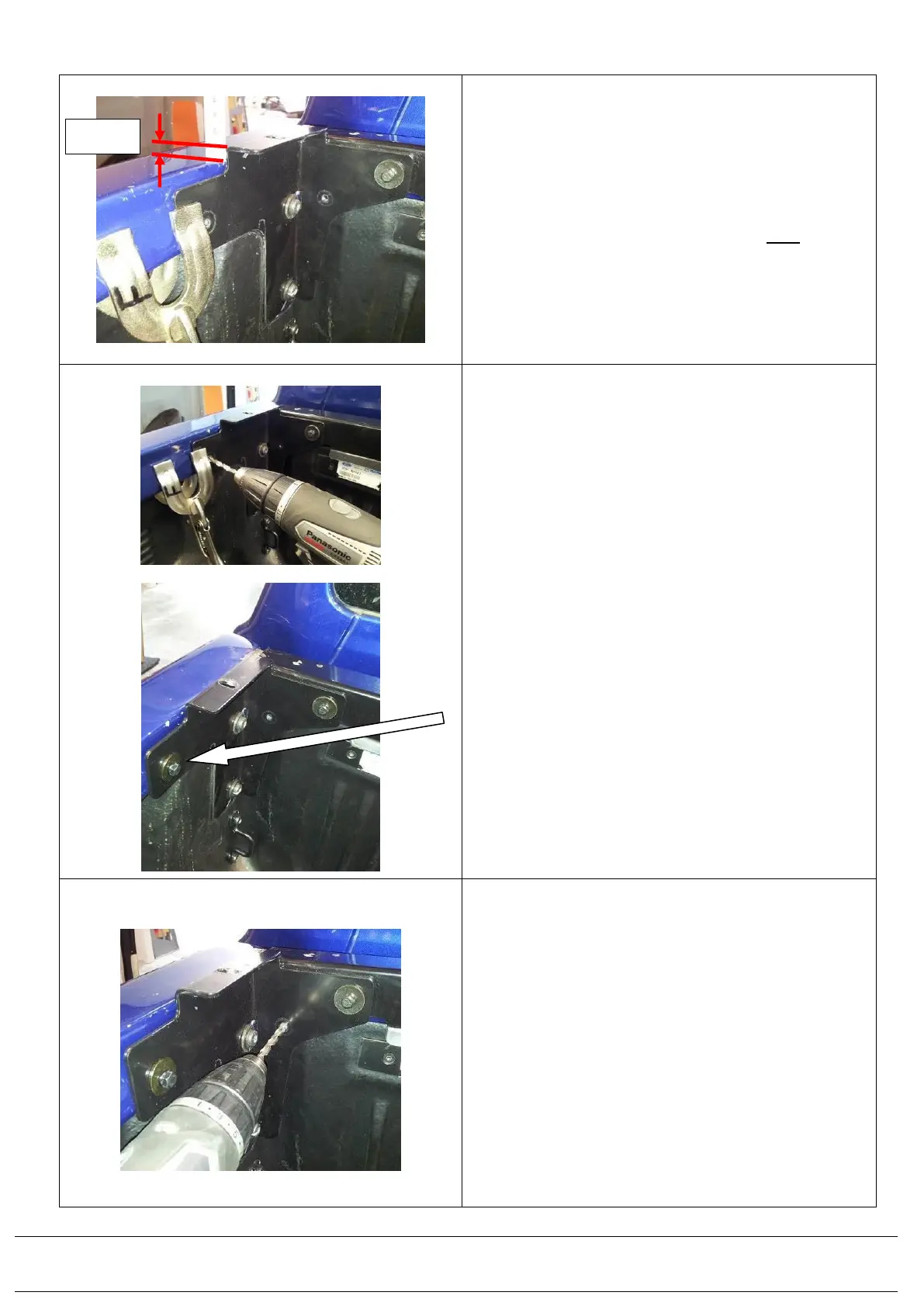

3.4) Clamp the front corner brackets in position as shown
once the height of the bracket from the top of the tub
to the top face of the bracket is to set at 10mm.
Maximum 11mm, Minimum 9mm.
Level the height of the front mount rail’s top face
(668PD011) to the height of the sides of the tub.
Tighten the M6 Hex screws to 9Nm first.
Then tighten the M8 Torx screws to 22Nm.
Repeat on the opposite RH side of the tub.
3.5) Using a drill fitted with a 12mm deep drill stop to
prevent drilling into the outside tub sheet metal skin,
drill with 6.5mm bit through the rear hole in the front
corner bracket through the flange on the tub sheet
metal.
Apply rust inhibitor around the hole and on the
tub on the inside after drilling.
3.6) Insert into the hole an M6x20mm hex screw with M6
x 25mm flat washer with M6 flange nut on the back,
inside the tub lip flange.
Do up to 9Nm.
Repeat on the opposite RH side of the tub.
3.7) Using a drill fitted with a 12mm deep drill stop to
prevent drilling into the front tub sheet metal skin,
drill with 6.5mm bit through the hole in the front
corner bracket through into the front mount rail
bracket (668PD011).
Apply rust inhibitor to prevent corrosion inside
the hole after drilling.
