FITTING THE CANOPY IS UNDERTAKEN IN 6 STAGES:
1. Removing any sports bars, cabin guards, bed liners and trimming the bed
Liner.
2. Sealing the front corners of the vehicle’s tub and obscuring the vehicle’s cabin
mounted stop lamp.
3. Fitting the tub mounting brackets.
4. Fitting vehicle wiring.
5. Fitting the canopy to the vehicle
6. Operational checks and adjustment options for doors and windows.
7. Recording of key code and owner’s manual supplement.
8. Check list and sign off.
NOTE: DURING THE INSTALLATION IT IS NECESSARY TO DRILL SOME HOLES THROUGH
THE VEHICLE’S TUB SHEET METAL. IT IS RECOMMENDED THAT THESE ARE DE-
BURRED AND THE RUST INHIBITOR THAT IS PROVIDED BE USES TO AVOID RUST
& ANY SWARF LEFT OVER SHOULD BE CLEANED FROM TUB.
!! IMPORTANT !! other than specifically specified in this instruction
REQUIRED SCREW TORQUES: M6=9Nm M8=22Nm
Screw torques must be adhered to avoid warranty issues and should be checked at
vehicle service intervals.
THE FITTING KIT CONTAINS:
Packed under the canopy are:

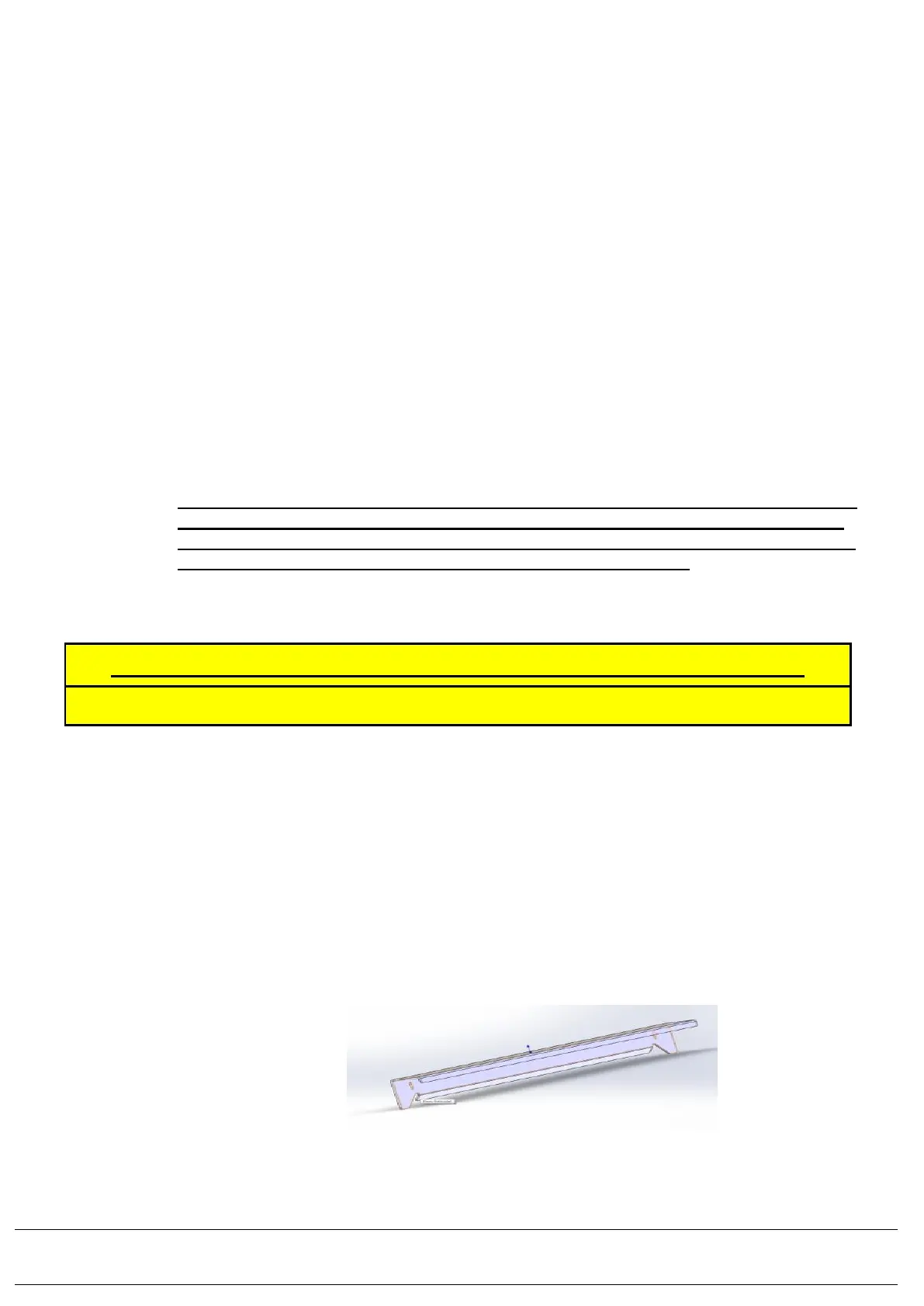

Qty 1 Front Mount Rail (Part no 668PD011),
and Qty 1 Carton containing hardware (Part no 6173597) which contains the following:
