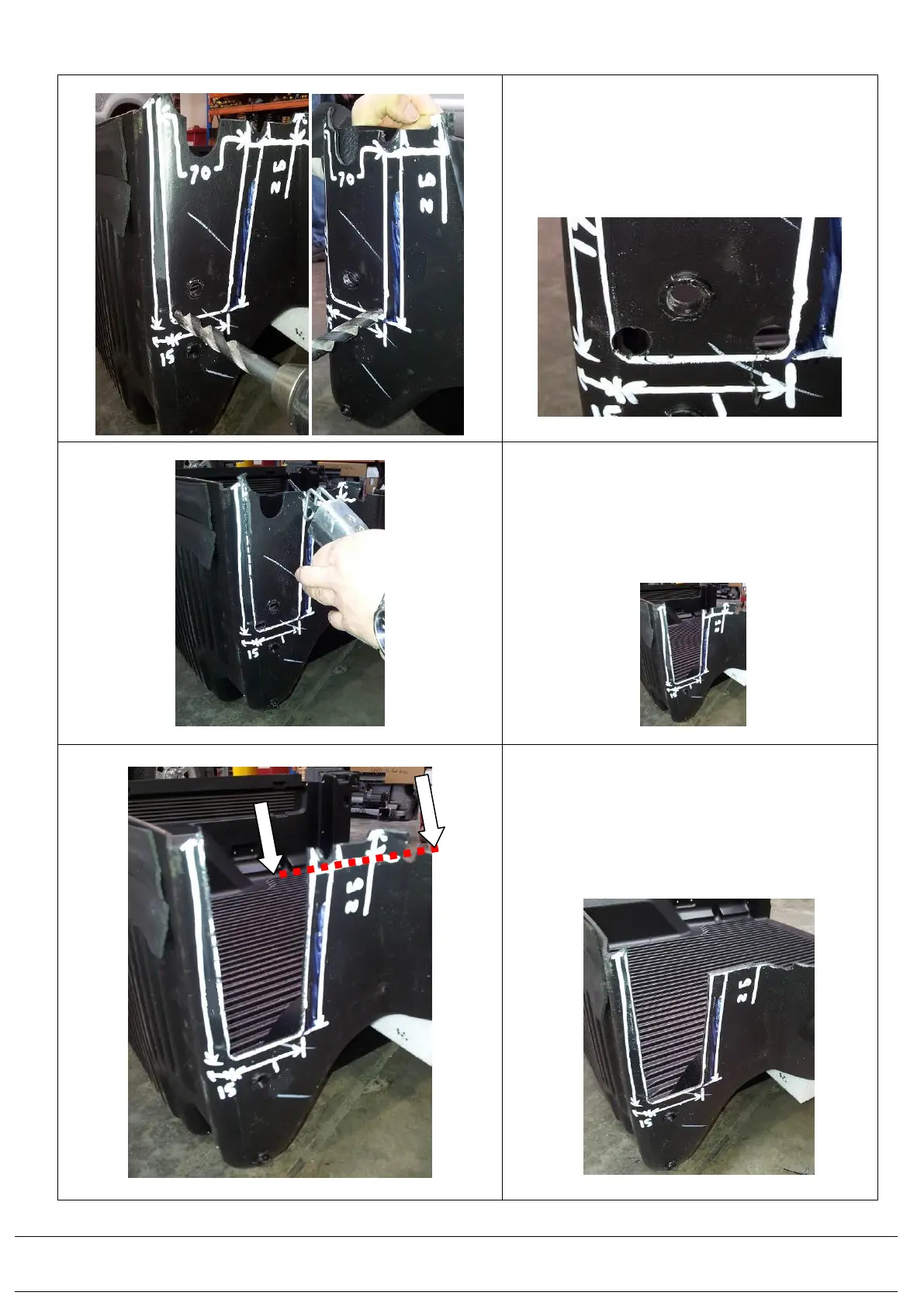

1.9) Drill the lower corners of the bed liner with
10mm drill bit to make neat corners as shown.
Repeat this on the opposite corner in
mirror image.
The cut out should look like this at this point.
1.10) Using a jig saw, cut the bed liner along the
marked lines.
Repeat this on the opposite corner in
mirror image.
The cut out should look like this at this point:
1.11) Trim the top edge as show using a jig saw, cut
the bed liner along the remaining marked
lines.
Repeat this on the opposite corner in
mirror image.
The finished front corner cut out should look
like this at this point:
To Next Page
