4 Installing the Air System
To attach the air line to the push-in fitting of the solenoid; insert the
line firmly into the fitting, pull outward on the flange of the fitting
while holding the line as far into the fitting as possible, and then
gently pull outward on the air line to clamp the line in place.
4.3 Connection to the Bulkhead Fitting
In the case of an IFS axle assembly or in the case that the axle
assembly has been completely removed from the vehicle, the
assembly will have to be remounted in order to position the
bulkhead fitting in its correct location for air line access.
Trim the air line to length using a sharp knife.
Assemble an aluminium washer onto the banjo bolt and insert
through the banjo fitting. Assemble second aluminium washer and
tighten into bulkhead fitting using a 14mm [9/16”] spanner. (Fig.17.)
Apply thread sealant to the tapered thread of the compression
fitting body and screw into the banjo fitting. Tighten using a 12mm
spanner.
Insert the outer compression nut and ferrule over the air line.
Ferrule should be orientated as per Fig.17.

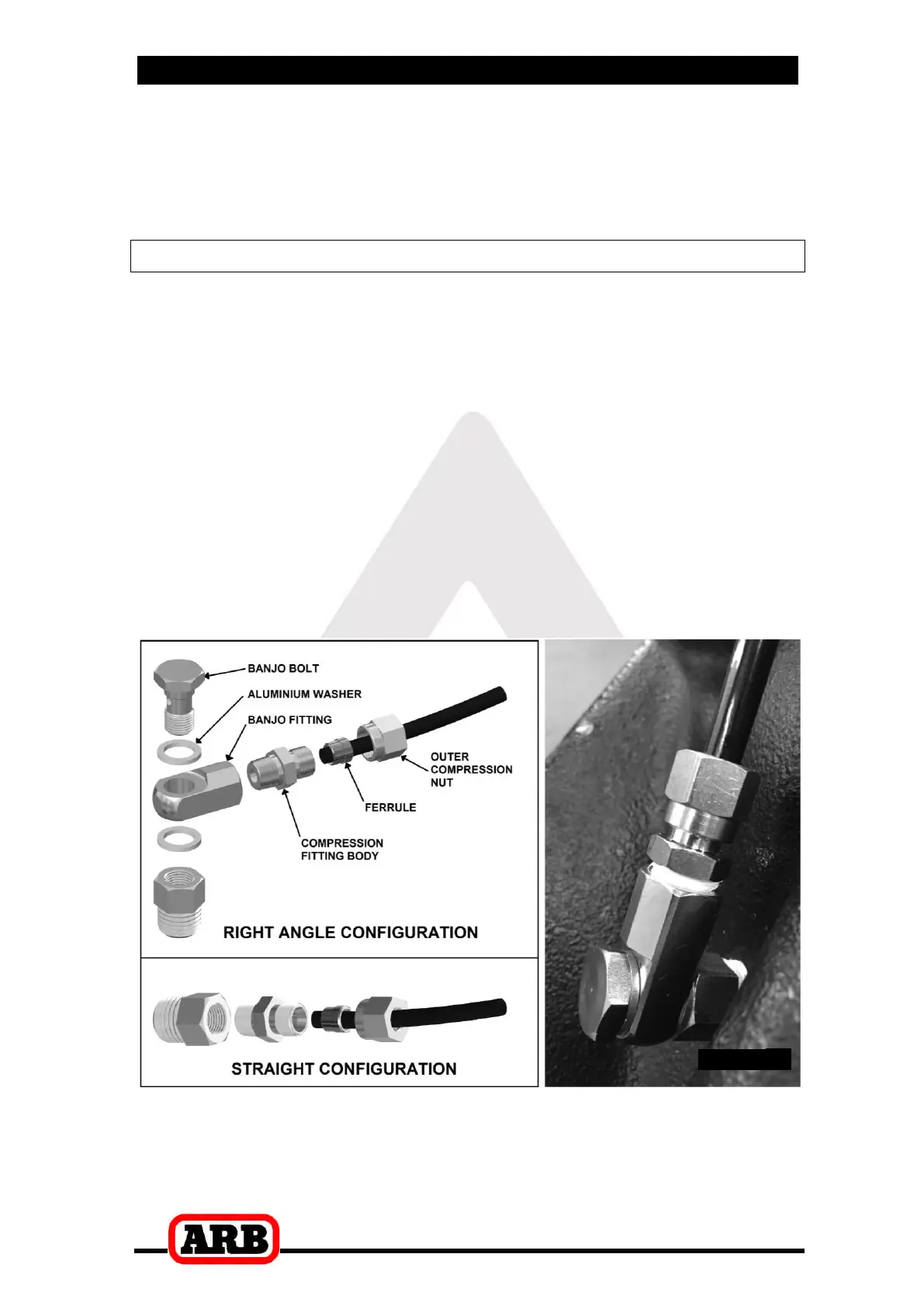

Figure 17.
