7 Parts List
41

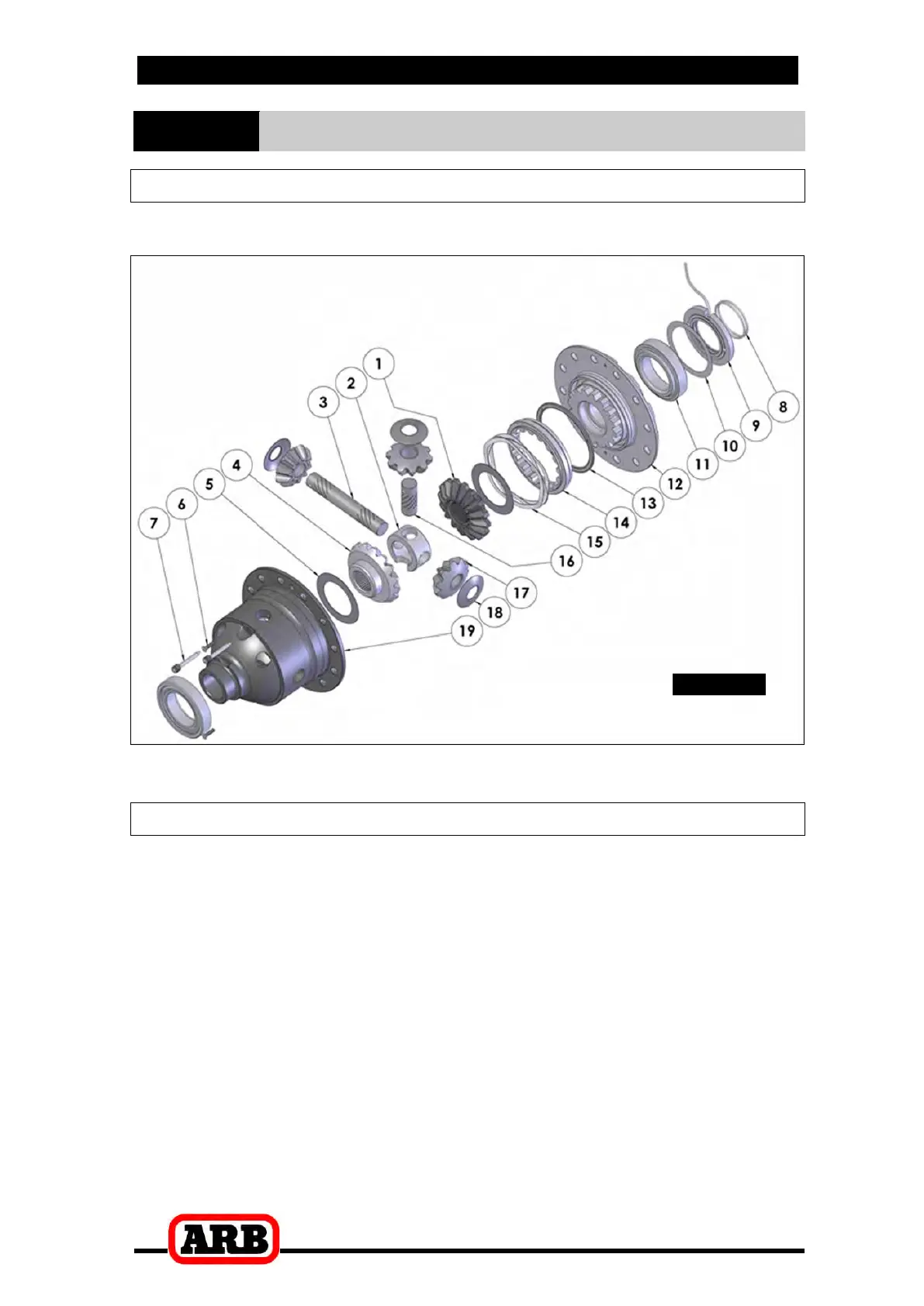

7.1 Exploded Assembly Diagram
(See itemized parts list overleaf)
Figure 26.
7.2 Specifications
RD168
Dana 60HD,C-Clip,35 SPL,4.56 & UP
Axle Spline
35 tooth, Ø38.1mm [1.50”]
Ratio Supported
4.56:1 & up
Ring Gear ID
162.0mm [6.38”]
Ring Gear OD
248mm [9.75”]
Ring Gear Bolts
12 bolts on Ø191mm [7.50”]
Ring Gear Torque
149Nm [110 ft-lb]
Backlash
0.15-0.25mm [0.006-0.010”]
Bearing Cap Torque
108Nm [80 ft-lb]
