96 Using a Surge Arrester

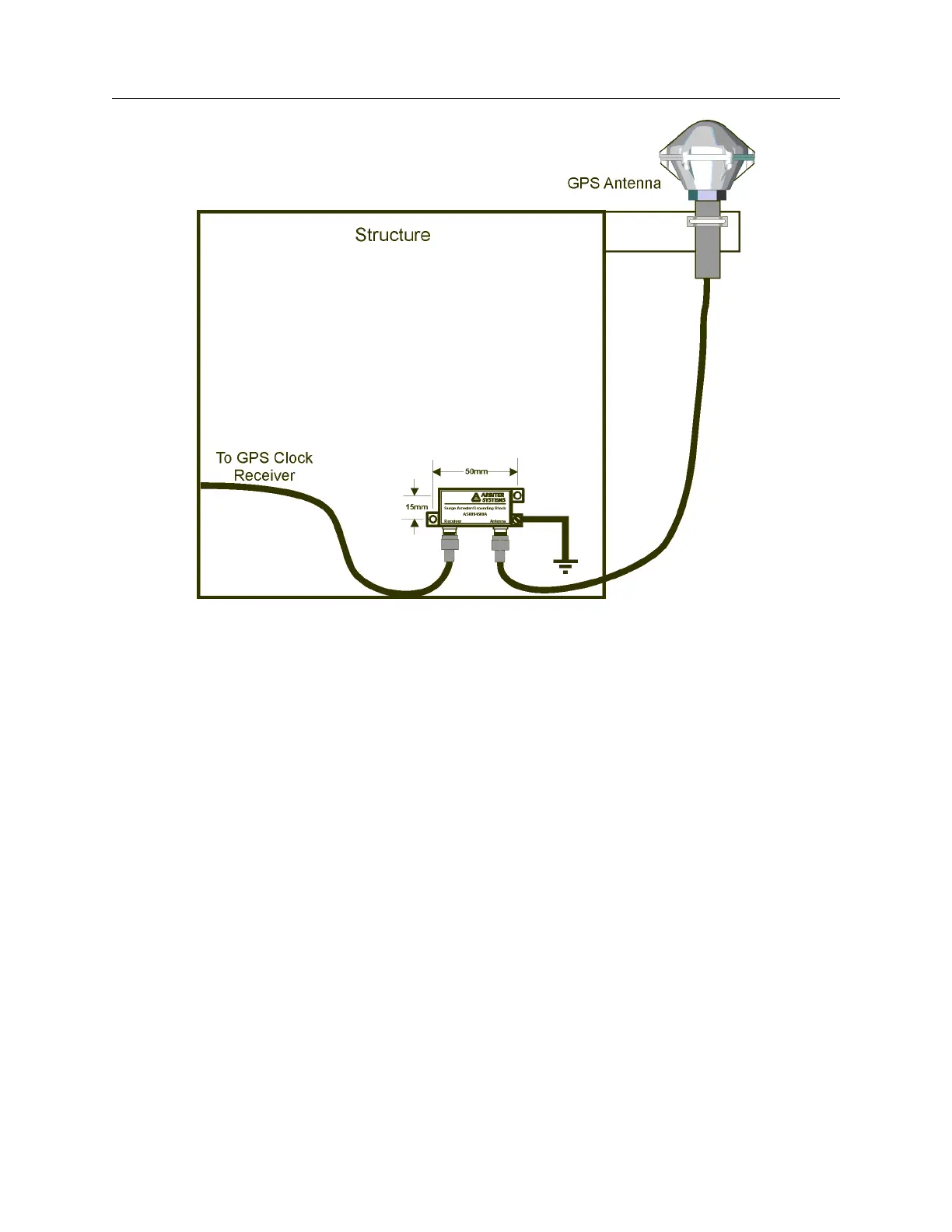

Figure B.2: Suggested Mounting of the AS0094500 Surge Arrester
B.4 Physical Dimensions
Overall: 59mm x 38mm x 18mm (2.32in x 1.49in x 0.71in) LxWxH
Mounting Hole Dim: 50mm x 15mm
Mounting Hole Dia: 4mm (0.157in)
F Connector Dim: 24mm, center to center
Weight: 48.2 g (1.7 oz)
