186 Options List
C.21 Option 95: Four BNC Connectors
Model 1093A/B/C Only
C.21.1 General Description
This document describes the BNC output connectors option; which is used in the Arbiter Systems
Model 1093 satellite-controlled clocks (order P/N 1093opt95). Option 95 is installed in option slot
A. Option 95 is not field installable.
BNC Output Connectors Option
The BNC output connectors option provides the Model 1093A/B/C with three BNC output connec-
tors and one BNC input connector. The three BNC outputs are connected in parallel with the ex-
isting pluggable terminal strip outputs, while the fourth connector provides a BNC event/deviation
input. The standard pluggable terminal strip outputs are still usable, but both connectors now
share the drive capability.
Physical Configuration
The connectors are mounted on an option plate connected to the rear panel with four M3 Kepnuts
and connected to the main board with a five-pin connector (J3). The signals on the output are
(when viewing the rear of the clock):

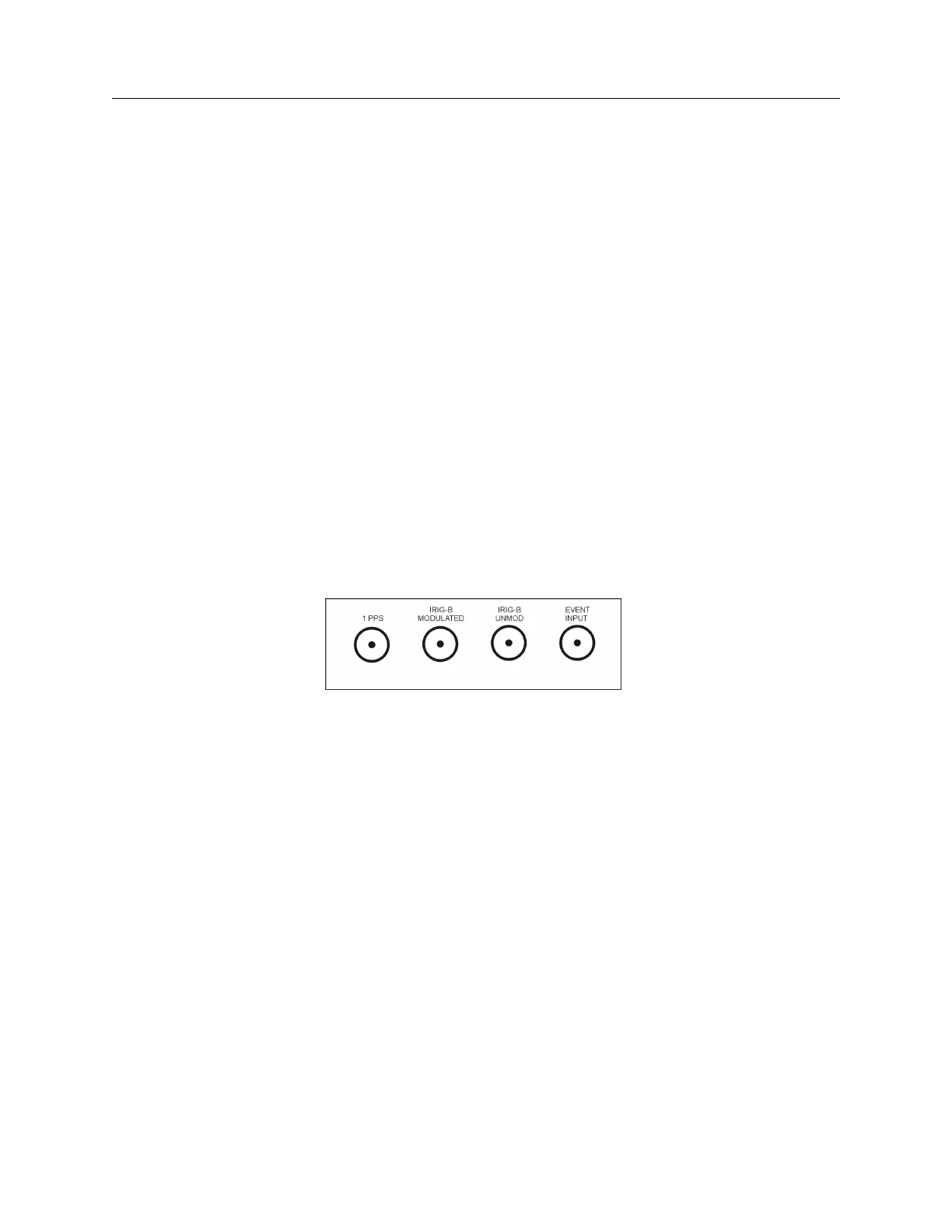

Figure C.44: Option 95 Rear-Panel Layout
C.22 Option 96: Programmable Pulse Output
Model 1092A/B/C and Model 1093A/B/C
The 1-PPS output at J4 is converted to programmable pulse, and marked on rear plug-style,
strip connector. For programmable pulse information, see Section 7.8, the Setup Menus, and
10.2.12, Programmable Pulse Output Commands.
