Arcam AVR300 Service Manual

AVR300 SURROUND SOUND RECEIVER
- 2 -
DISASSEMBLY INSTRUCTIONS
7
6
5
1
3
2
4
9
8
8
2. Pull both sides of the TOP COVER slightly outwards 8 and tilt approx. 35° and then remove in the direction as
indicated by the arrow 9 . Refer to Figure No.2.

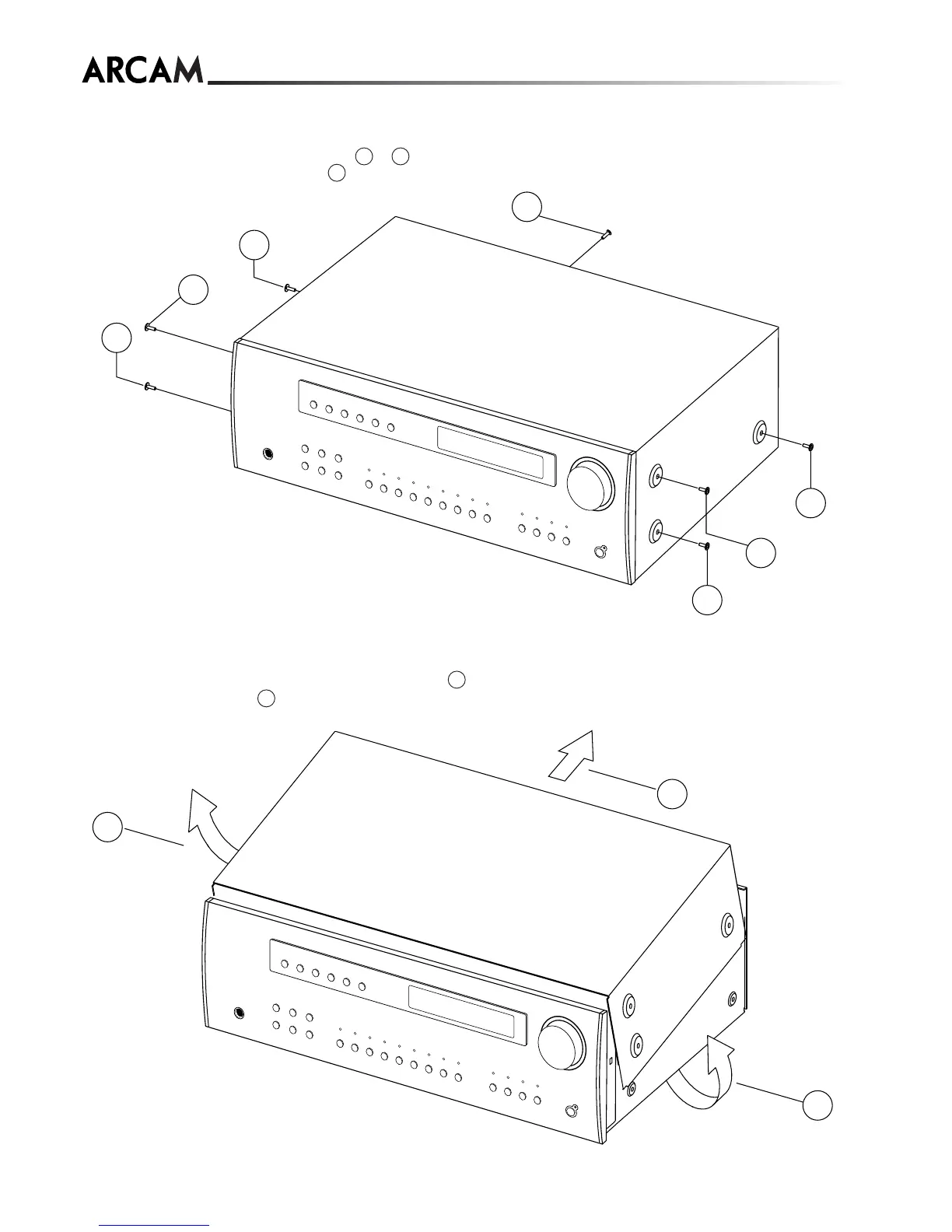

1. Remove machine screws M 4.0 x 6.0 ( 1 to 6 ) from the side panels.
Remove tapping screw 3.0 x 8.5 ( 7 )from the back panel.
Refer to Figure No.1.
Figure No.1
Figure No.2
