Arcam AVR300 Service Manual

AVR300 SURROUND SOUND RECEIVER
- 6 -

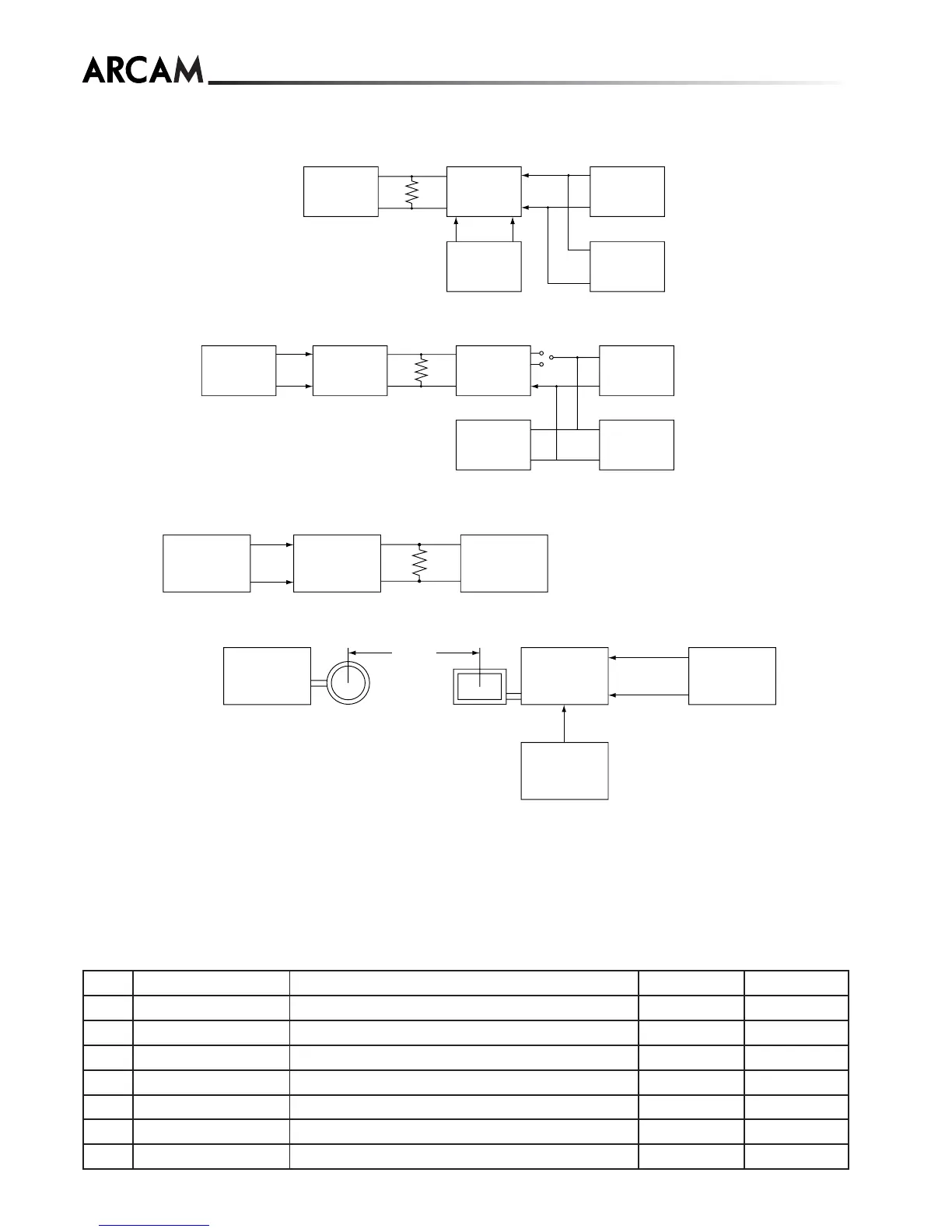

INSTRUMENT SETUP
1
.
FM
MEASUREMENT
Fig. 1
Fig. 2
2. RDS MEASUREMENT
Fig. 3
3. AM MEASUREMENT
Fig. 4
FM
SIGNAL
GENERATOR
ANTENNA
TERMINAL
OUTPUT
TERMINAL
DISTORTION
ANALYZER
DISTORTION
ANALYZER
AC
VOLTMETER
OSCILLOSCOPE
AC
VOLTMETER
OR
OSCILLOSCOPE
AC
VOLTMETER
OR
OSCILLOSCOPE
OUTPUT
TERMINAL
OUTPUT
TERMINAL
L
R
ANTENNA
TERMINAL
ANTENNA
TERMINAL
ANTENNA
TERMINAL
AM LOOP
ANTENNA
(Accessory)
AM LOOP
ANTENNA
60cm
DIGITAL
MILLIVOLT
METER
VT-J954
FM
SIGNAL
GENERATOR
AM
SIGNAL
GENERATOR
FM
SIGNAL
GENERATOR
RDS
GENERATOR
FM
STEREO
GENERATOR
P-901
DC
MILLIVOLT
METER
UNIT
UNIT
UNIT
UNIT
ALIGNMENT PROCEDURES
AMPLIFIER SECTION
Idle Current: Volume at min value, at 8 ohm and 10 min burn in
Step Item Connection Adjustment Adjust for
1FL Channel Voltmeter to P101 on AMP2 Board VR101 10mV±2mV
2 FR Channel Voltmeter to P401 on AMP1 Board VR401 10mV±2mV
3C Channel Voltmeter to P201 on AMP2 Board VR201 10mV±2mV
4SL Channel Voltmeter to P301 on AMP2 Board VR301 6mV±1.5mV
5 SR Channel Voltmeter to P501 on AMP1 Board VR501 6mV±1.5mV
6 BSL Channel Voltmeter to P701 on AMP1 Board VR701 6mV±1.5mV
7 BSR Channel Voltmeter to P601 on AMP1 Board VR601 6mV±1.5mV
