VIPER Detailed hardware description
VIPER-FPIF1 details

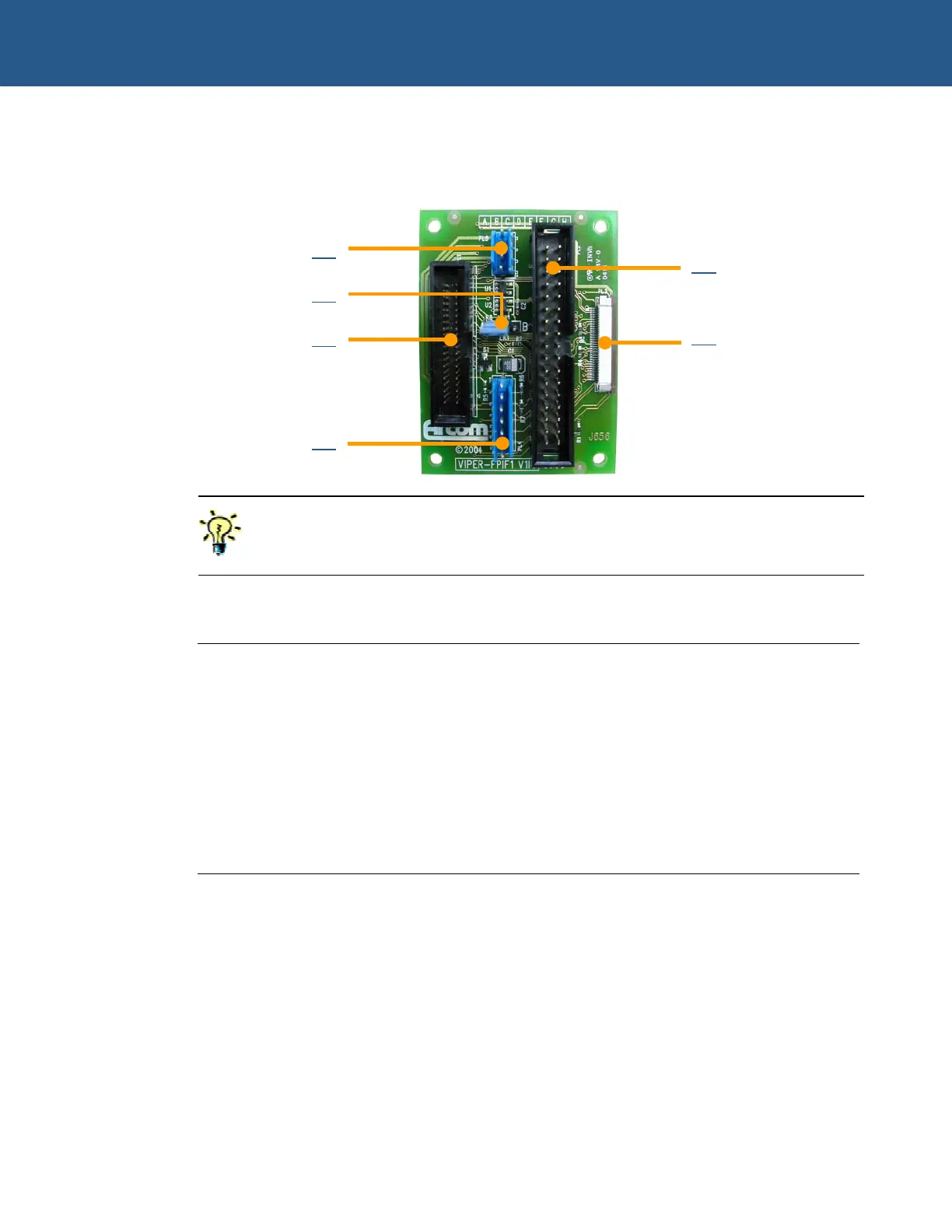

The VIPER-FPIF1 allows easy connection between the VIPER and a TFT or STN LCD
flat panel display.
PL5
PL2
PL3
LK1
PL1
PL4
The connectors on the following pages are shown in the same orientation as the
picture above.
Connector Function
LK1 TFT Clock Delay Selection
PL1 Connects to the VIPER
PL2 Generic LCD Connector
PL3 Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT Display
PL4 Connects to Backlight Inverter
PL5 STN Bias Voltages
© 2004 Arcom Issue H 33
