33
Division II - Operation/
Maintenance
Previous Main Table of Contents Section Table of Contents NextPrevious Main Table of Contents Section Table of Contents Next
General Information

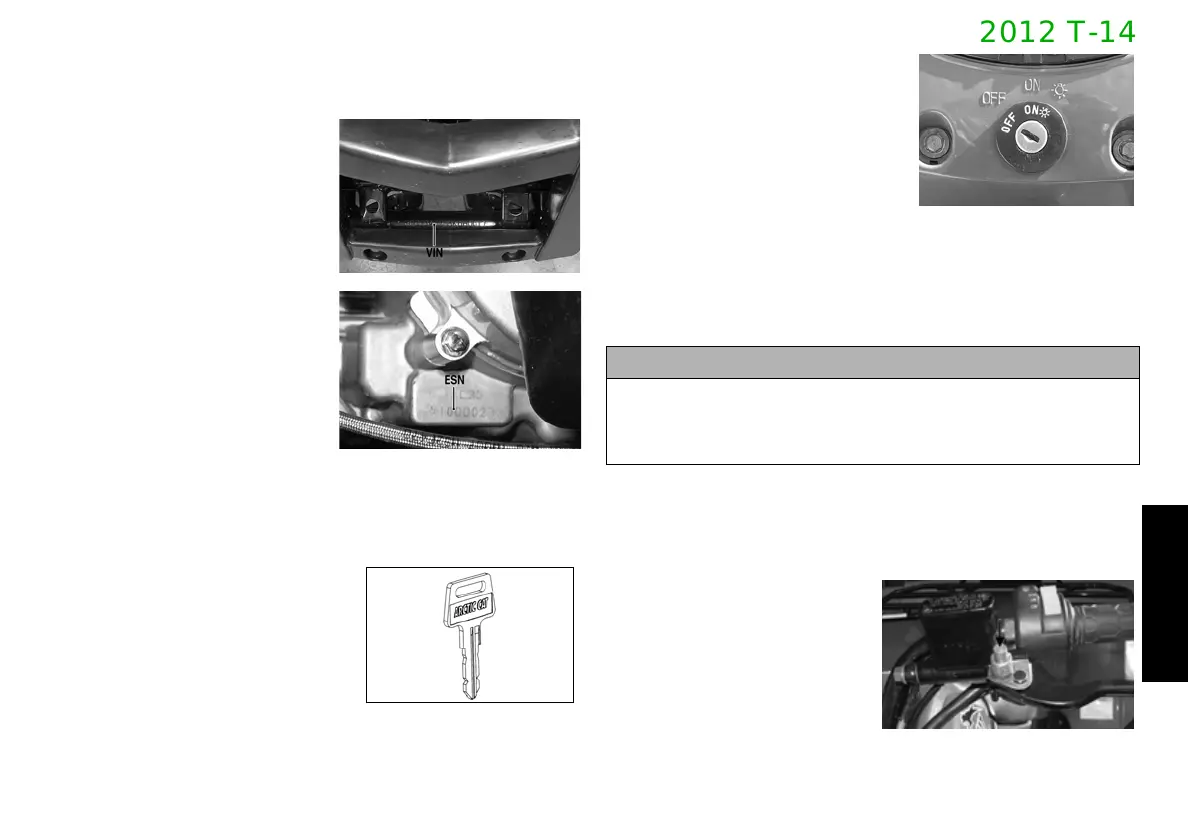

ATV Identification Numbers
The Arctic Cat ATV has two identi-
fication numbers: Vehicle Identifica-
tion Number (VIN) and Engine
Serial Number (ESN).
The VIN is located on the horizontal
frame bar.
The ESN is located on the left-side
of the engine crankcase near the
lower front.
These numbers are required by the
dealer to complete warranty claims
properly. No warranty will be
allowed by Arctic Cat if the VIN or
ESN is removed or mutilated in any
way.
Always provide the ATV name,
VIN, and ESN when contacting an authorized Arctic Cat ATV dealer
for parts, service, accessories, or warranty. If a complete engine must
be replaced, ask the dealer to notify Arctic Cat for correct registration
information.
Ignition Switch Key
Two keys come with the ATV. Keep the
spare key in a safe place.
Control Locations and
Functions
Ignition Switch
The ignition switch has three positions.
OFF position — All electrical circuits
are off. The engine will not start. The
key can be removed in this position.
ON position — The ignition circuit is complete, the engine can run.
The key cannot be removed in this position.
LIGHTS position — The ignition circuit is complete and the parking
lights and taillights are on. The headlight switch is active and the key
cannot be removed in this position.
Hand Brakes
The hand brakes should be applied whenever a braking situation is
needed.
Apply the brakes by compressing the brake levers toward the handlebar.
Brake Lever Lock
To engage and release the brake
lever lock, use the following proce-
dure.
1. Compress the left hand brake
lever.
2. Depress and hold the brake
lever lock.
CAUTION
Leaving the ignition switch in the ON or LIGHTS position for a
long period of time when the engine is not running may cause the
battery to discharge. Always leave the ignition switch in the OFF
position when engine is not running.
