6. Observe each headlight beam aim.
Proper aim is when the most intense
beam is centered on the vertical mark
5 cm (2 in.) below the horizontal
mark on the aiming surface.

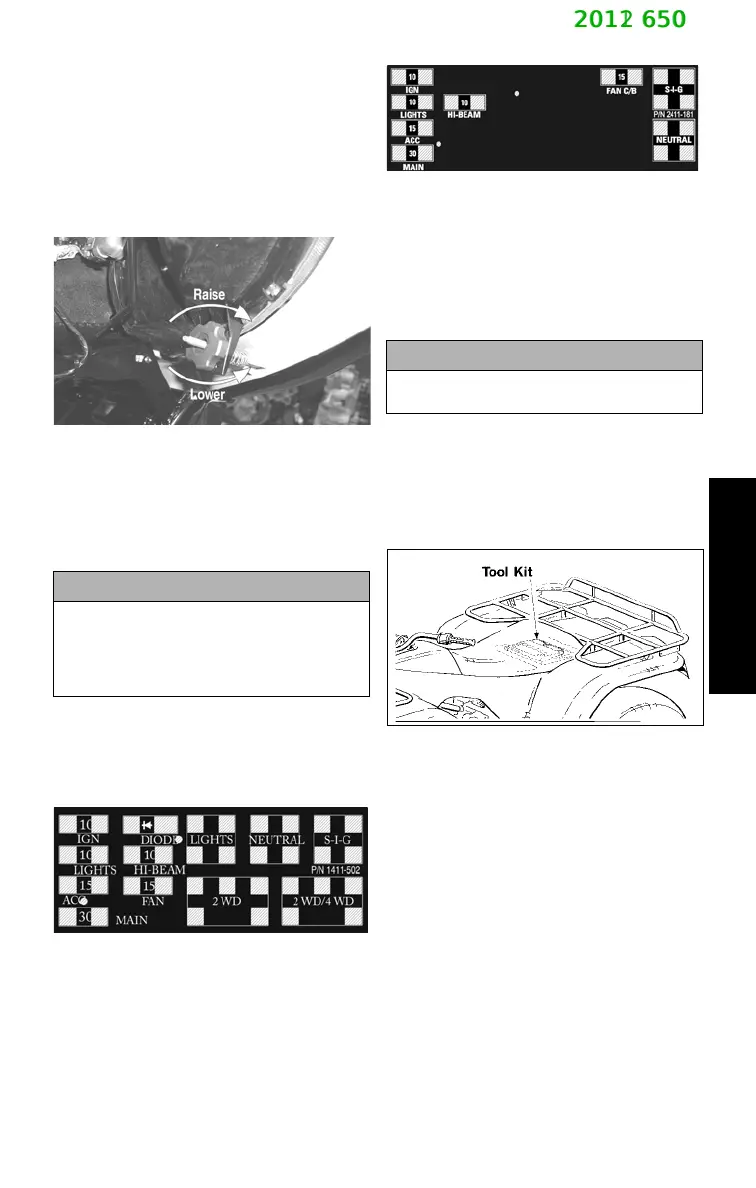

7. Adjust each headlight until correct
aim is obtained by turning the knob
clockwise to raise or counterclock-
wise to lower the beam.
CD714A
Fuses
The fuses are located in a power distribu-
tion module under the seat. If there is any
type of electrical system failure, always
check the fuses first.
NOTE: To remove the fuse, com-
press the locking tabs on either side
of the fuse cover and lift out.
1411-502
2411-181
Electrical Output
Terminals
Two output terminals for electrical acces-
sories are located on the front and rear
wiring harnesses. The accessory plug is
located on the instrument pod.
Storage Compartment/
Tools
A basic tool kit is provided with the ATV.
Maintain the tool kit with the ATV at all
times.
ATV-1097
The storage compartment is above the
engine in front of the seat.
CAUTION
Always replace a blown fuse with a
fuse of the same type and rating. If
the new fuse blows after a short
period of use, consult an authorized
Arctic Cat ATV dealer immediately.
CAUTION
Always use electrical accessories
less than 180W.
