7. Dry the element.
8. Put the element in a plastic bag; then
pour in air filter oil and work the oil
into the element.
9. Squeeze the element to remove
excess oil; then install in the frame.
10. Clean any dirt or debris from inside
the air filter housing.
11. Place the filter in the air filter hous-
ing making sure it is properly in
position and seated; then install the
cover and secure with the fasteners.

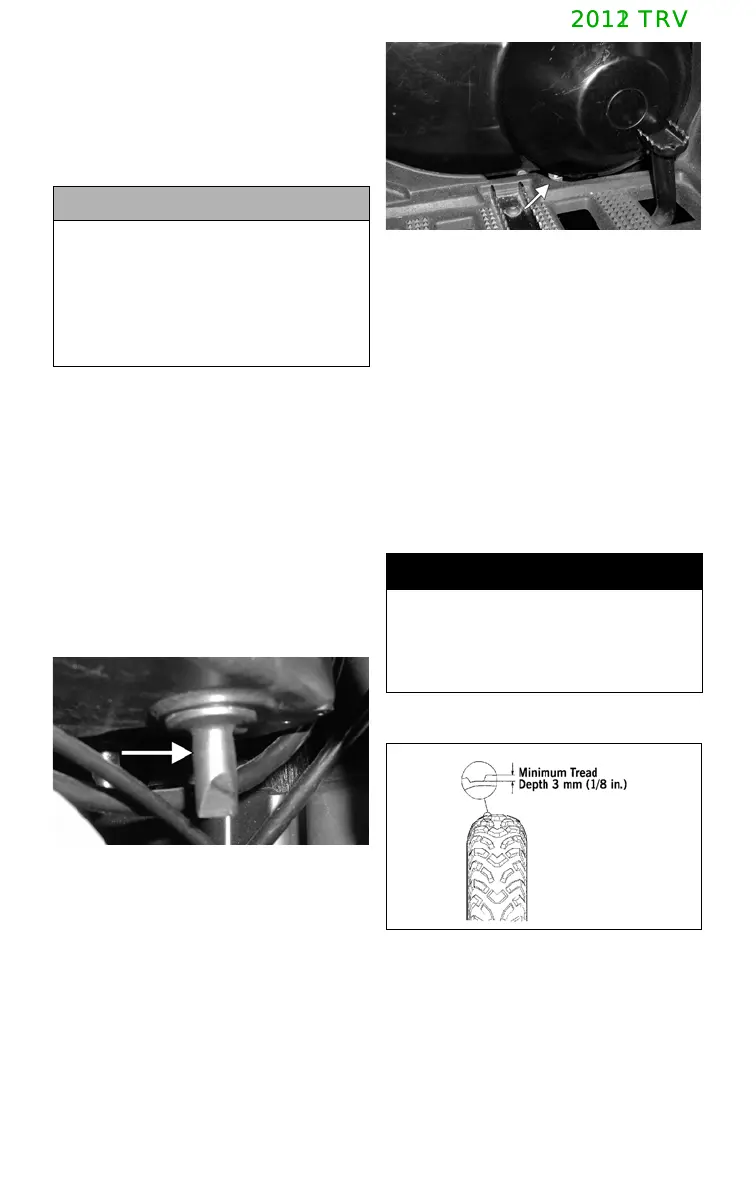

Air Filter Housing
Drains
Inspect the “duck bill” drain beneath the
main housing for debris and for proper
sealing.
PR141A
Draining V-Belt Cover
NOTE: If the ATV has been driven
through water, the V-belt cover
must be drained of any water.
1. Place the ATV on a level surface.
2. Remove the drain bolt from the cover
and allow the water to drain out.
CF110A
3. Shift the range lever to the neutral
position; then start the engine.
4. Increase and decrease engine RPM
several times to “blow out” any
water; then stop the engine.
5. Install the drain bolt and tighten
securely.
NOTE: The V-belt and clutches
should be inspected every 500
miles and the belt replaced (if nec-
essary).
Tires
Tire Tread Condition
0732-649
The use of worn-out tires on a ATV is
very dangerous. A tire is considered to be
worn out when the depth of the tread is
less than 3 mm (1/8 in.). Be sure to
replace the tires before reaching this min-
imum specification.
CAUTION
A torn air filter can cause damage to
the engine. Dirt and dust may get
inside the engine if the element is
torn. Carefully examine the element
for tears before and after cleaning it.
Replace the element with a new one
if it is torn.
! WARNING
Always use the size and type of tires
as specified. Refer to the specifica-
tions chart for proper tire inflation
pressure, and always maintain proper
tire inflation pressure.
