Tubeless Tire Repair
Should a leak or flat tire occur due to a puncture, the tire may be
repaired using a plug-type repair. If the damage is from a cut or if the
puncture cannot be repaired using a plug, the tire must be replaced.
When operating the ATV in areas where transportation or service
facilities are not readily available, it is strongly recommended to
carry a plug-type repair kit and a tire pump along.
Wheels
1. Park the ATV on level ground and engage the front brake lever
lock.
2. Loosen the wheel nuts on the wheel to be removed.
3. Elevate the ATV.
4. Remove the wheel nuts.
5. Remove the wheel.
6. Install the wheel and install wheel nuts.
7. Tighten in a crisscross pattern to 30 ft-lb.
8. Remove the jack.

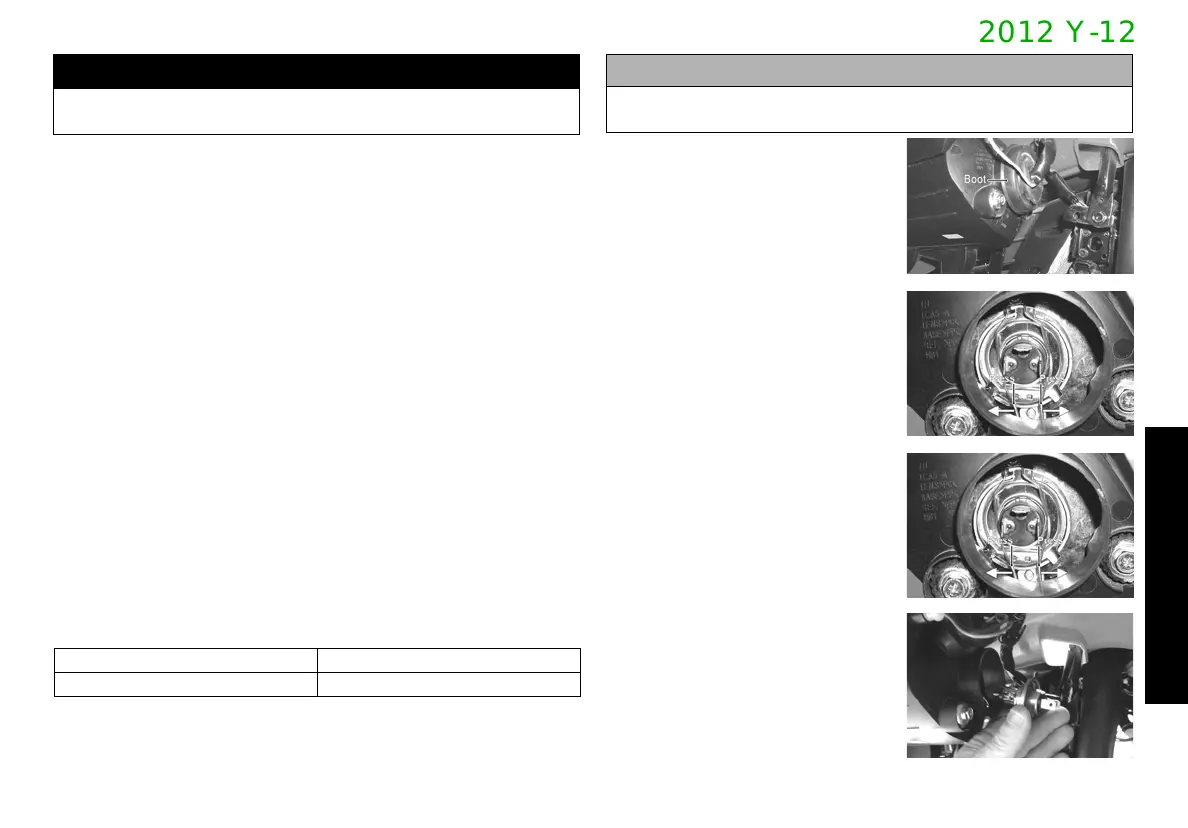

Bulb Replacement
The wattage rating of the bulb is shown in the chart. When replacing
a burned bulb, always use the same wattage rating.
NOTE: The bulb portion of the
headlight is fragile. HANDLE WITH
CARE. When replacing the head-
light bulb, do not touch the glass
portion of the bulb. If the glass is
touched, it must be cleaned with a
dry cloth before installing. Skin oil
residue on the bulb will shorten
the life of the bulb.
To replace the headlight bulb, use the
following procedure.
1. Remove the rubber boot from the
back of the headlight housing;
then remove the three-wire con-
nector from the bulb.
2. Release the two ends of the
springclip from the headlight
housing taking care not to bend
or deform the clip; then remove
the bulb from the housing.
3. Install the new bulb into the
housing; then secure with the
spring clip.
4. Connect the three-wire connector
to the bulb; then install the rub-
ber boot.
5. Install the wiring harness con-
nector.
! WARNING
Use only Arctic Cat approved tires when replacing tires. Fail-
ure to do so could result in unstable ATV operation.
Headlights 12V/35W
Brakelight 12V/5W
CAUTION
Use only specified bulb indicated in the chart as replacement
bulb.
