Liquid Cooling System
The cooling system capacity is approxi-
mately 5.6 L (5.9 U.S. qt). The cooling
system should be inspected daily for
leakage and damage. If leakage or dam-
age is detected, take the ATV to an autho-
rized Arctic Cat ATV dealer for service.
Also, the coolant level should be checked
periodically.
When filling the cooling system, use a
coolant/water mixture which will satisfy
the coldest anticipated weather condi-
tions of the area in accordance with the
coolant manufacturer’s recommenda-
tions. While the cooling system is being
filled, air may become trapped; therefore,
elevate the rear of the ATV 30-40 cm
(12-16 in.) to allow air to bleed from the
filler neck. Run the engine for several
minutes; then shut off the engine and fill
with coolant to the top of the filler neck.
NOTE: Use a good quality, biode-
gradable glycol-based, automotive-
type antifreeze.
NOTE: High engine RPM, low vehi-
cle speed, or heavy load can raise
engine temperature. Decreasing
engine RPM, reducing load, and
selecting an appropriate transmis-
sion gear can lower the temperature.
To check/add coolant, use the following
procedure.

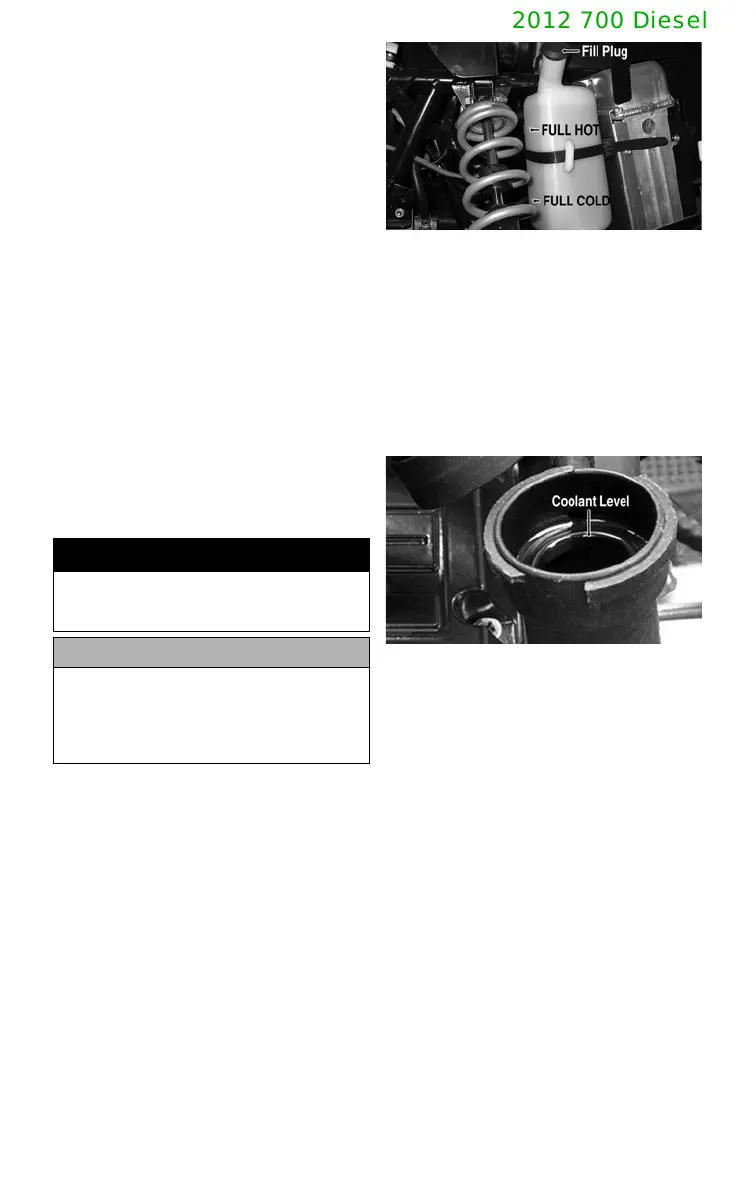

1. Check the level of coolant in the cool-
ant expansion tank located under the
right front fender. The coolant level
should be between the Full Cold and
Full Hot lines.
DE019A
2. Remove the rubber plug from the
neck of the coolant expansion tank
and add coolant as necessary; then
install the plug.
3. Remove the filler cap located under
the engine access cover and add cool-
ant as necessary to bring to the top of
the filler neck. Install and tighten the
filler cap securely.
DE582A
Shock Absorbers
Each shock absorber should be visibly
checked weekly for excessive fluid leak-
age (some seal leakage may be observed
but it does not indicate the shock is in
need of replacement), cracks or breaks in
the lower case, or a bent shock rod. If any
one of these conditions is detected,
replacement is necessary.
NOTE: When the ATV is operated
in extremely cold weather (-23° C/
-10° F or colder), a small amount of
leakage may be present. Unless the
leakage is excessive, replacement
is not necessary.
! WARNING
Never check the coolant level when
the engine is hot or the cooling sys-
tem is under pressure.
CAUTION
After operating the ATV for the initial
5-10 minutes, stop the engine, allow
the engine to cool down, and check
the coolant level. Add coolant as nec-
essary.
