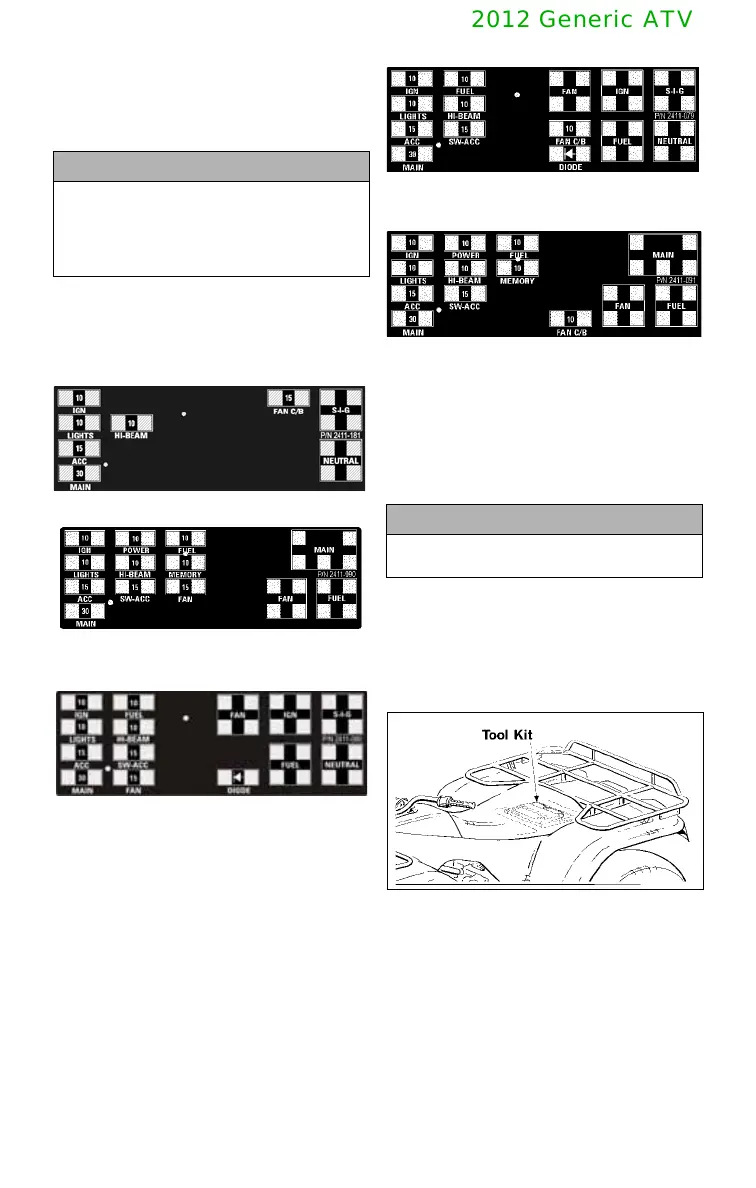

Fuses
The fuses are located in a power distribu-
tion module under the seat. If there is any
type of electrical system failure, always
check the fuses first.
NOTE: To remove the fuse, com-
press the locking tabs on either side
of the fuse cover and lift out.
450 H1
2411-090
550/700/700 TBX/1000
2411-080
700 H1 Mud Pro
2411-079
1000 H2 Mud Pro
2411-091
Electrical Output
Terminals
Two output terminals for electrical acces-
sories are located on the front and rear
wiring harnesses. The accessory plug is
located on the instrument pod.
Storage Compartment/
Tools
A basic tool kit is provided with the ATV.
Maintain the tool kit with the ATV at all
times.
ATV-1097
The storage compartment is above the
engine in front of the seat.
CAUTION
Always replace a blown fuse with a
fuse of the same type and rating. If
the new fuse blows after a short
period of use, consult an authorized
Arctic Cat ATV dealer immediately.
CAUTION
Always use electrical accessories
less than 180W.
