3. Tighten the knurled nut against the
throttle cable adjuster securely; then
slide the rubber boot over the adjuster.

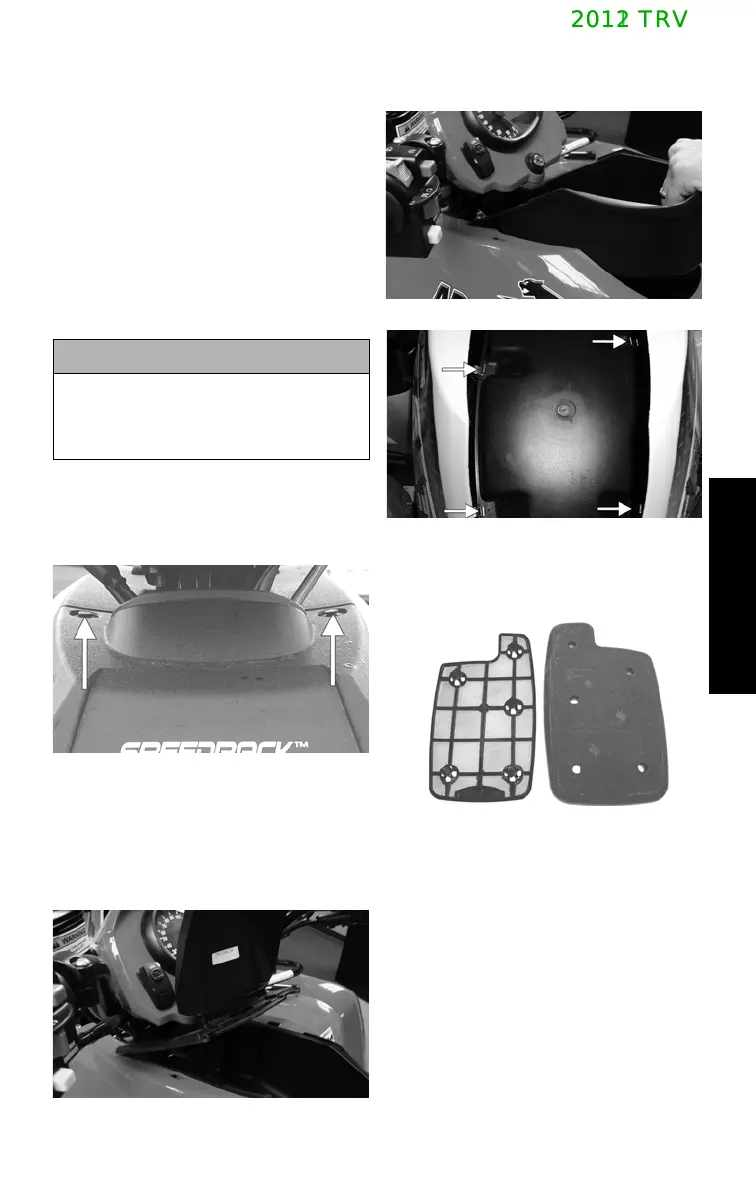

Air Filter
The air filter inside the air filter housing
must be kept clean to provide good
engine power and gas mileage. If the
ATV is used under normal conditions,
service the filter at the intervals speci-
fied. If operated in dusty, wet, or muddy
conditions, inspect and service the filter
more frequently. Use the following pro-
cedure to remove the filter and inspect
and/or clean it.
1. Remove the reinstallable rivets at
the rear of the steering post cover;
then unlatch the storage compart-
ment lid.
CF260A
2. Lift up on the rear of the steering
post cover and slide the storage com-
partment cover assembly forward to
disengage the mounting lugs; then
lift and remove the cover assembly
from the storage compartment.
FI467
3. Lift out the storage box; then unsnap
the four spring-clips and remove the
air filter cover.
FI468
CD675A
4. Remove the air filter assembly and
separate the foam filter from the
frame.
CD747
5. Fill a wash pan larger than the ele-
ment with a non-flammable cleaning
solvent; then dip the element in the
solvent and wash it.
NOTE: Foam Air Filter Cleaner
and Foam Air Filter Oil are avail-
able from Arctic Cat.
6. Squeeze the element by pressing it
between the palms of both hands to
remove excess solvent. Do not twist
or wring the element or it will
develop cracks.
CAUTION
Failure to inspect the air filter fre-
quently if the ATV is used in dusty,
wet, or muddy conditions can dam-
age the engine.
