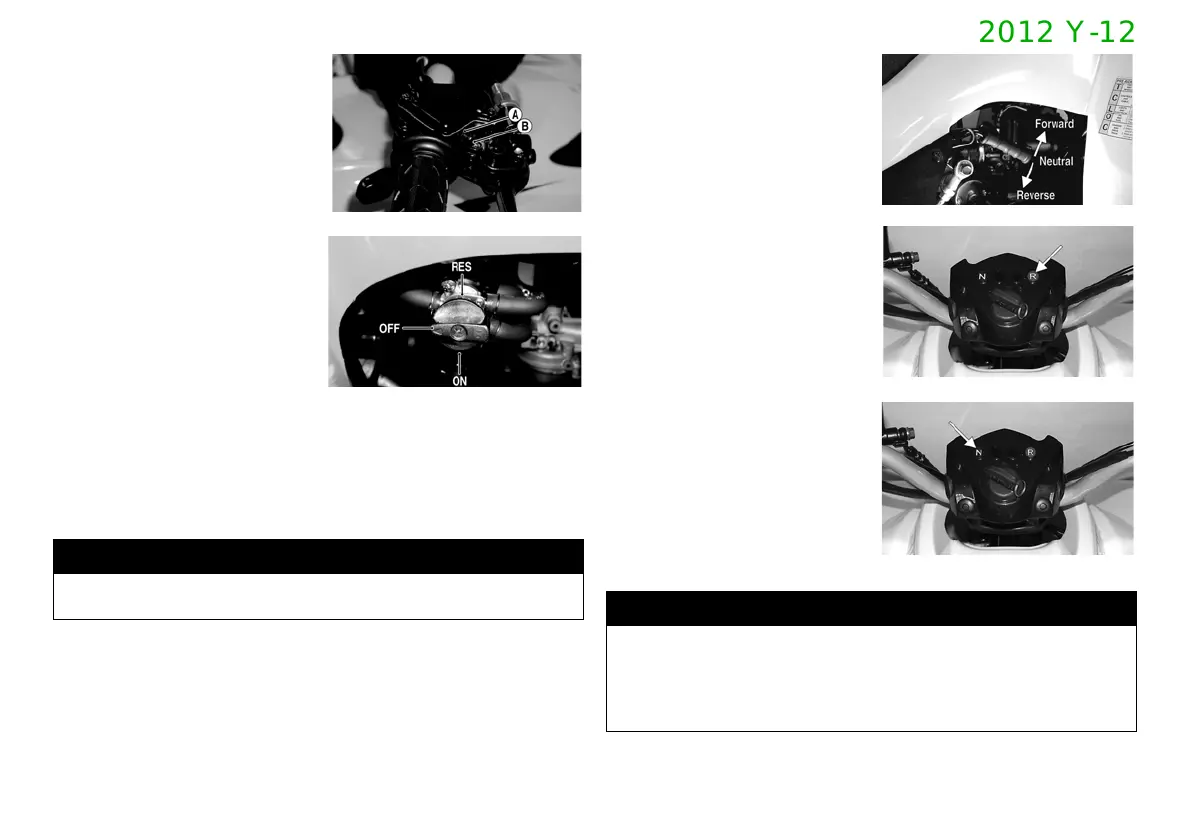

1. Loosen the jam nut (A).
2. Turn the throttle limiter screw
(B) clockwise to decrease
engine RPM maximum or
counterclockwise to increase
engine RPM maximum.
3. Tighten the jam nut (A)
securely.
Fuel Valve
The fuel valve is incorporated in
the gas tank. There are three posi-
tions: ON, RES, and OFF.
In the OFF position, the valve will
not allow gasoline to flow to the
carburetor. In the ON position (the
normal operating position), gaso-
line will flow from the tank to the carburetor. In this position, 1.3 L
(0.34 U.S. gal.) will remain in the tank as a reserve quantity.
Moving the valve to the reserve (RES) position will allow the opera-
tor to use the remaining gasoline in the tank. When turning the valve
to any of the three positions, be sure the indicator is pointed directly
at the position desired.
Shift Lever
1. To shift into forward gear, pull
out and upward on the shift
lever until the transmission
engages in the forward gear.
2. To shift into reverse gear, pull
out and push downward on
the shift lever until the trans-
mission engages the reverse
gear. When in reverse with
the ignition switch in the ON
position, the reverse indica-
tor light will illuminate.
3. To shift into neutral from
either forward or reverse gear,
push or pull the lever to the
center position. When in neu-
tral with the ignition switch in
the ON position, the neutral
indicator light will illuminate.
! WARNING
Never leave the valve in the ON or RES position when the
engine is not running.
! WARNING
Always come to a complete stop with the engine at idle before
moving the shift lever. Changing gears while moving or shift-
ing from neutral with the engine above idle could cause sud-
den change of direction resulting in loss of control or being
thrown from the ATV causing severe injury or death.
