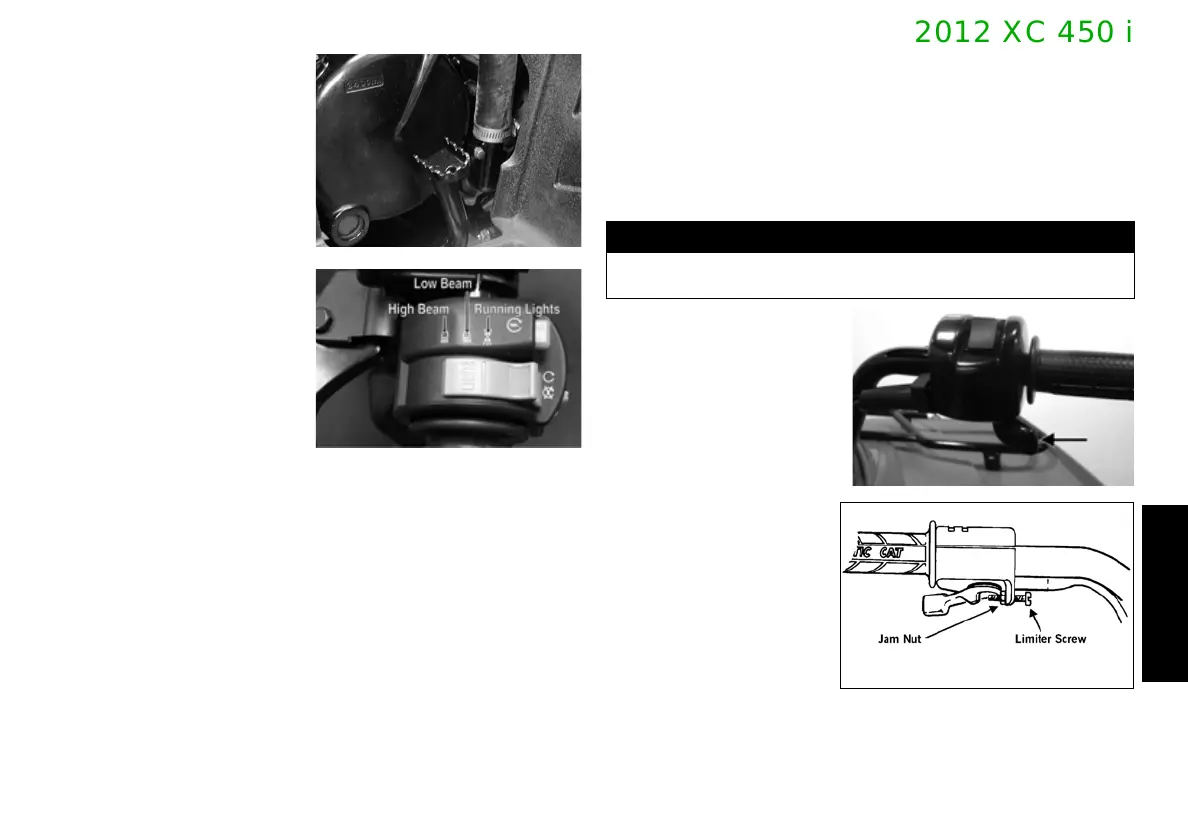

Rear Foot Brake
Pressing the rear foot brake
downward will apply the brake to
the rear wheels.
Headlight HI/LO
Switch
Use the headlight HI/LO switch
to select the running lights/tail-
light and high or low headlight
beam when the ignition switch is
in the LIGHTS position. When
the switch is in the HI position,
the high beam will illuminate.
When the switch is in the LO
position, the low beam will illu-
minate. When the switch is in the Running Light position, the tail-
lights and running lights will illuminate.
Engine Stop Switch
OFF position — The ignition circuit is off. The engine cannot be started
or will not run. If the engine stop switch is used to stop engine without
turning off ignition switch, the battery may discharge.
RUN position — The ignition circuit is on. The engine can start and run.
Starter Button
Pushing in on this button activates the starter motor. Before starting
the engine, make sure the ignition switch is in the ON position, the
transmission is in neutral, and the brake lever lock is engaged.
NOTE: This ATV has safety interlock switches which pre-
vent the starter motor from activating when the transmis-
sion is not in neutral.
Reverse Override Switch
This ATV is equipped with a reverse speed limiter system. When
additional RPM is needed in reverse, depress and hold the override
switch.
Throttle Lever
Control engine RPM with the
position of the throttle lever.
Operate this lever with the
thumb. Pushing it forward
increases engine RPM and
allowing it to retract decreases
engine RPM.
Throttle Limiter
Screw
Throttle lever travel may be
limited by adjusting the throt-
tle limiter screw. The throttle
limiter should be adjusted
according to the operator’s
skill and experience. To
adjust the throttle limiter, use
the following procedure.
1. Loosen the jam nut.
! WARNING
Never activate the override switch while the throttle is open
as a loss of control may result.
