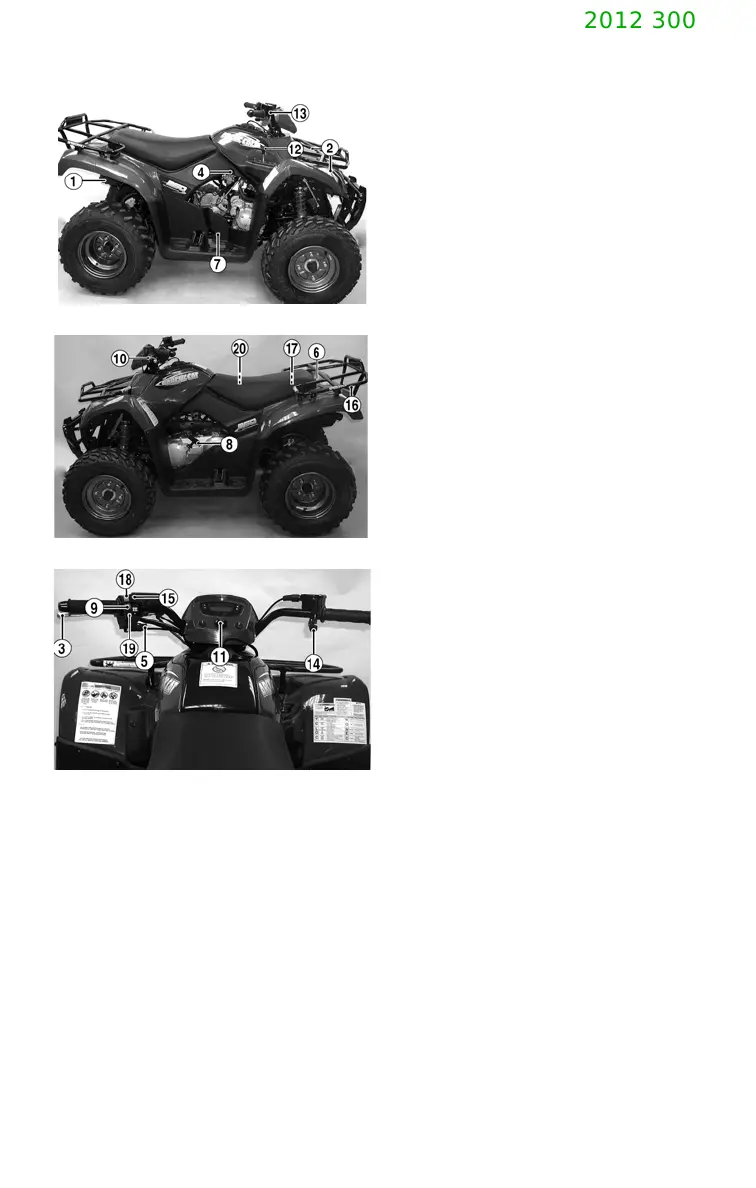

Location of Parts and Controls
(Utility)
KM091A
KM119A
KM120A
1. Battery
2. Headlights
3. Hand Brake Lever
4. Fuel Valve
5. Choke Lever
6. Seat Lock Lever
7. Rear Foot Brake
8. Kick Starter
9. Engine Stop Switch
10. Brake Lever Lock
11. Key Switch
12. Shift Lever
13. Throttle Limiter
14. Throttle Lever
15. Starter Button
16. Taillight/Brakelight
17. Operator’s Manual Location
18. Headlight OFF/HI/LO Switch
19. Reverse Override Button
20. Tool Kit
