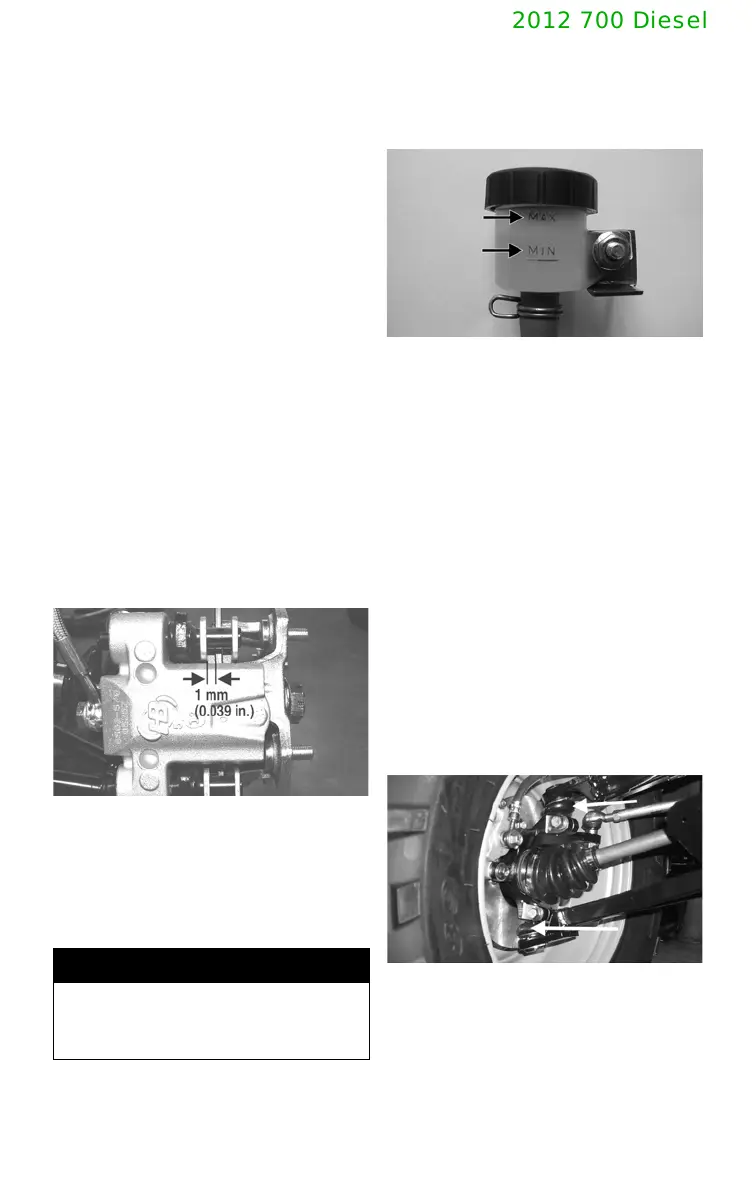

NOTE: The brake lever lock must
lock the wheels. If it doesn’t, take
the ATV to an authorized Arctic Cat
ATV dealer for service.
Brake Hoses
Carefully inspect the hydraulic brake
hoses for cracks or other damage. If
found, take the ATV to an authorized
Arctic Cat ATV dealer to have the brake
hoses replaced.
Brake Pads
The clearance between the brake pads
and brake discs is adjusted automatically
as the brake pads wear. The only mainte-
nance that is required is replacement of
the brake pads when they show excessive
wear. Check the thickness of each of the
brake pads as follows:
1. Remove a front wheel.
2. Measure the thickness of each brake
pad.
3. If thickness of either brake pad is less
than 1.0 mm (0.039 in.), take the ATV
to an authorized Arctic Cat ATV
dealer to have brake pads replaced.
PR376B
4. Install the wheel and tighten to 40 ft-
lb.
Rear Foot Brake
The rear foot brake must be properly
maintained to be fully functional.
1. Check the brake fluid level in the res-
ervoir. The fluid level must be main-
tained between the MAX and MIN
level marks. If the level in the reser-
voir is low, add DOT 4 brake fluid.
CD474A
NOTE: The brake fluid reservoir is
located on the electrical panel
beneath the operator’s seat.
2. Press the rear foot brake several times
to check for firmness.
3. If the brake is not firm, the system
must be bled.
NOTE: Take the ATV to an autho-
rized Arctic Cat ATV dealer for this
service.
Protective Rubber
Boots
The protective boots should be inspected
periodically according to the Mainte-
nance Schedule.
Ball Joint Boots (Upper
and Lower/Right and Left)
CC791
1. Secure the ATV on a support stand to
elevate the front wheels.
2. Remove both front wheels.
3. Inspect the four ball joint boots for
cracks, tears, or perforations.
! WARNING
Be sure to inspect the rear foot brake
system before each use. Always
maintain brakes according to the
Maintenance Schedule.
