6 Mechanical Information
The Arduino Portenta Mid Carrier is a one-sided 114 mm x 86.5 mm board with several connectors overhanging its
edges. Portenta family boards and Mini PCIE cards are placed on the carrier using dedicated connectors.
6.1 Carrier Dimensions

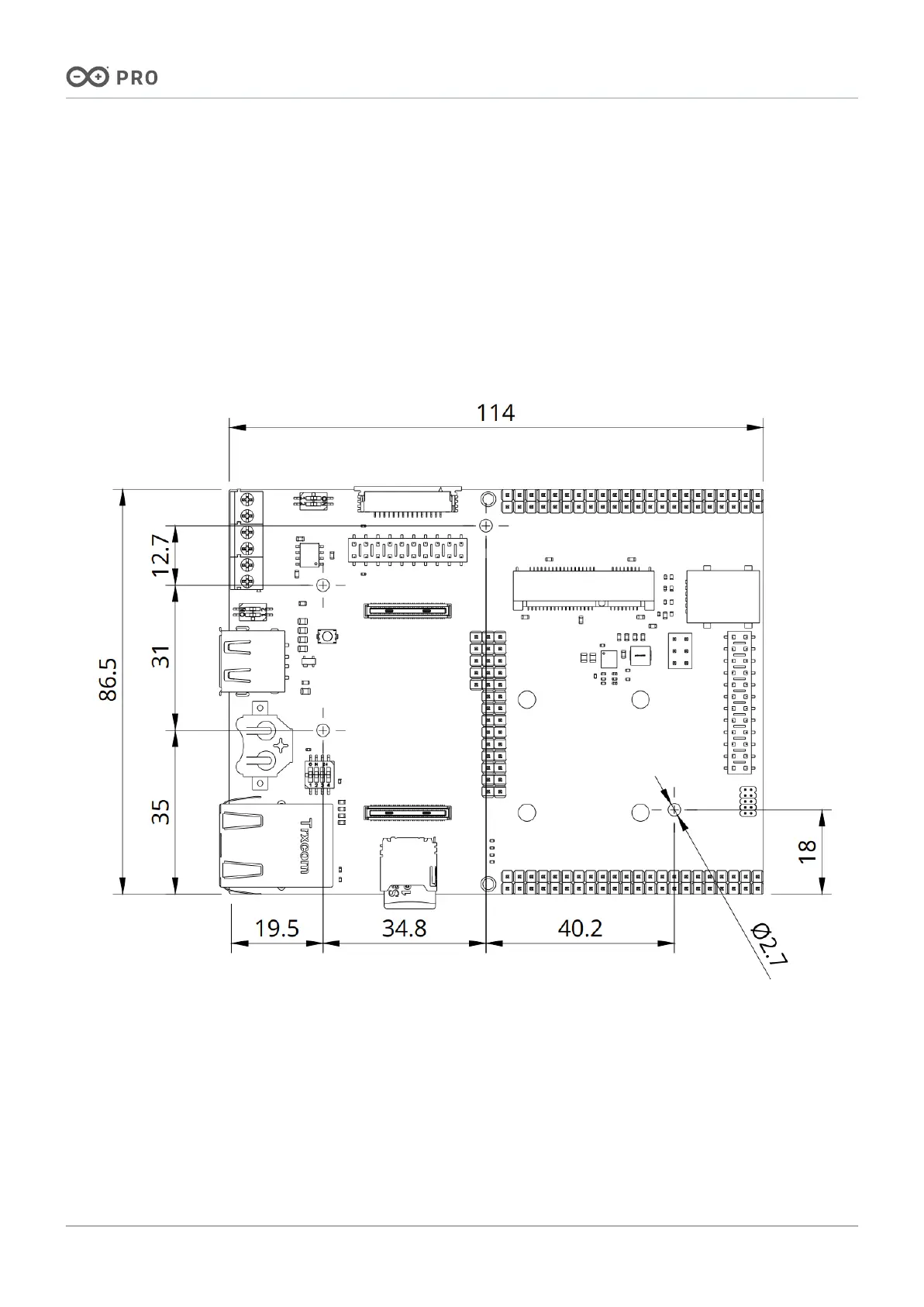

The Portenta Mid Carrier board outline and mounting hole dimensions are shown in the figure below; all the
dimensions are in millimeters (mm).
The carrier has four 2.7 mm drilled mounting holes for mechanical fixing.
