6.2 Carrier Connectors

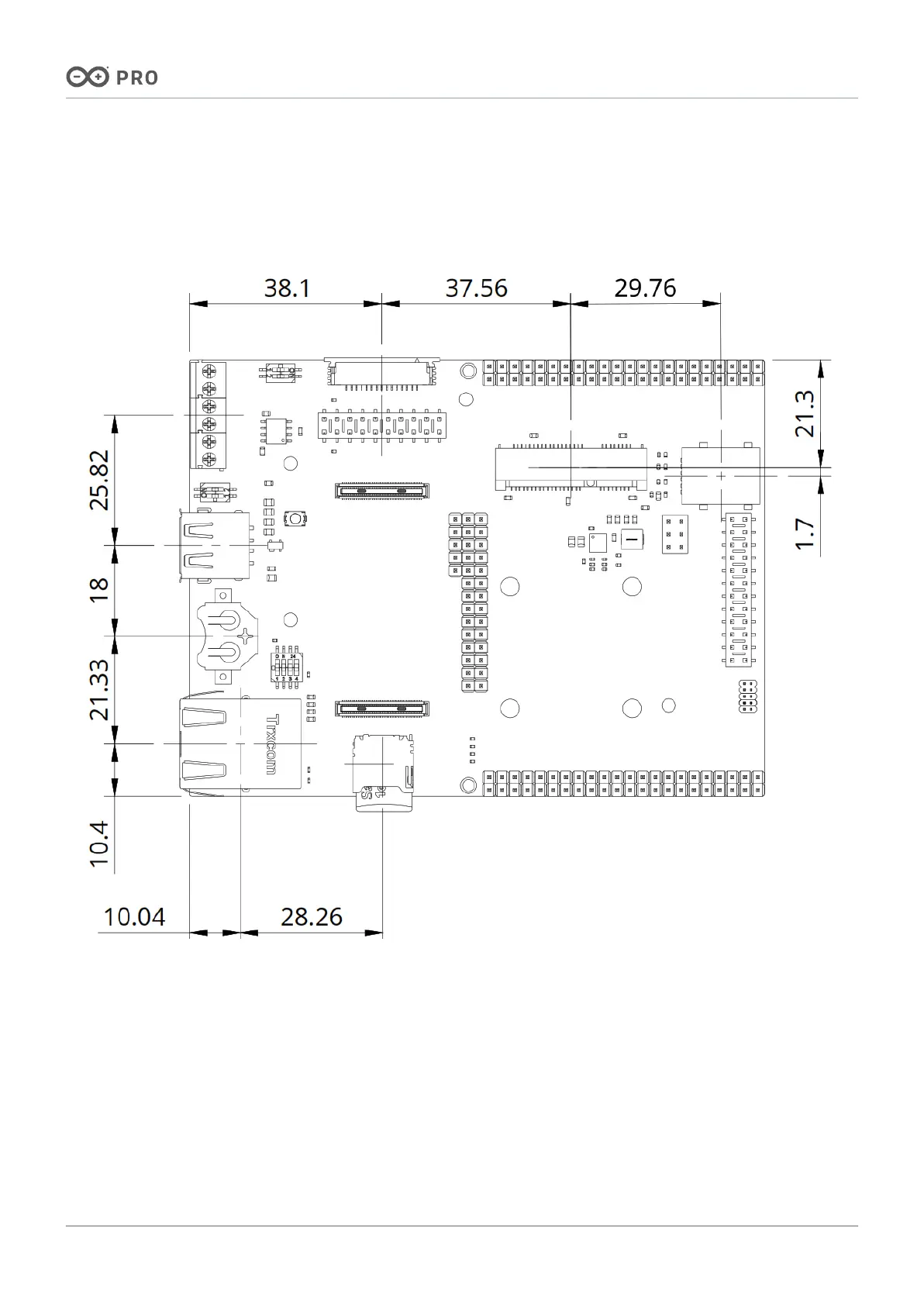

Connectors of the Portenta Mid Carrier are placed primarily on its edges, but there are also some connectors
placed inside of the carrier; their placement is shown in the figure below. All the dimensions are in millimeters
(mm).
