User Manual – Arenal PCS – QA03-SDA Page 12/74
2.4 Panel cut‐out
In case the HMI is not mounted in Arenal’s standard enclosure, the HMI shall be mounted in another
enclosure to protect it against dust and water. Due to the lack of components on the market, Arenal offers
several HMI’s. Each has different panel cut outs. Find below the panel cut‐out specification of ProFace
GP4301‐TAD and GP4301‐TADW:
Length: 156 mm (6.14 in)
Hight: 123.5 mm (4.86 in)
Panel thickness 1.6...5 mm (0.06...0.2 in)
Radius in each corner: 3 mm (0.12 in) maximum

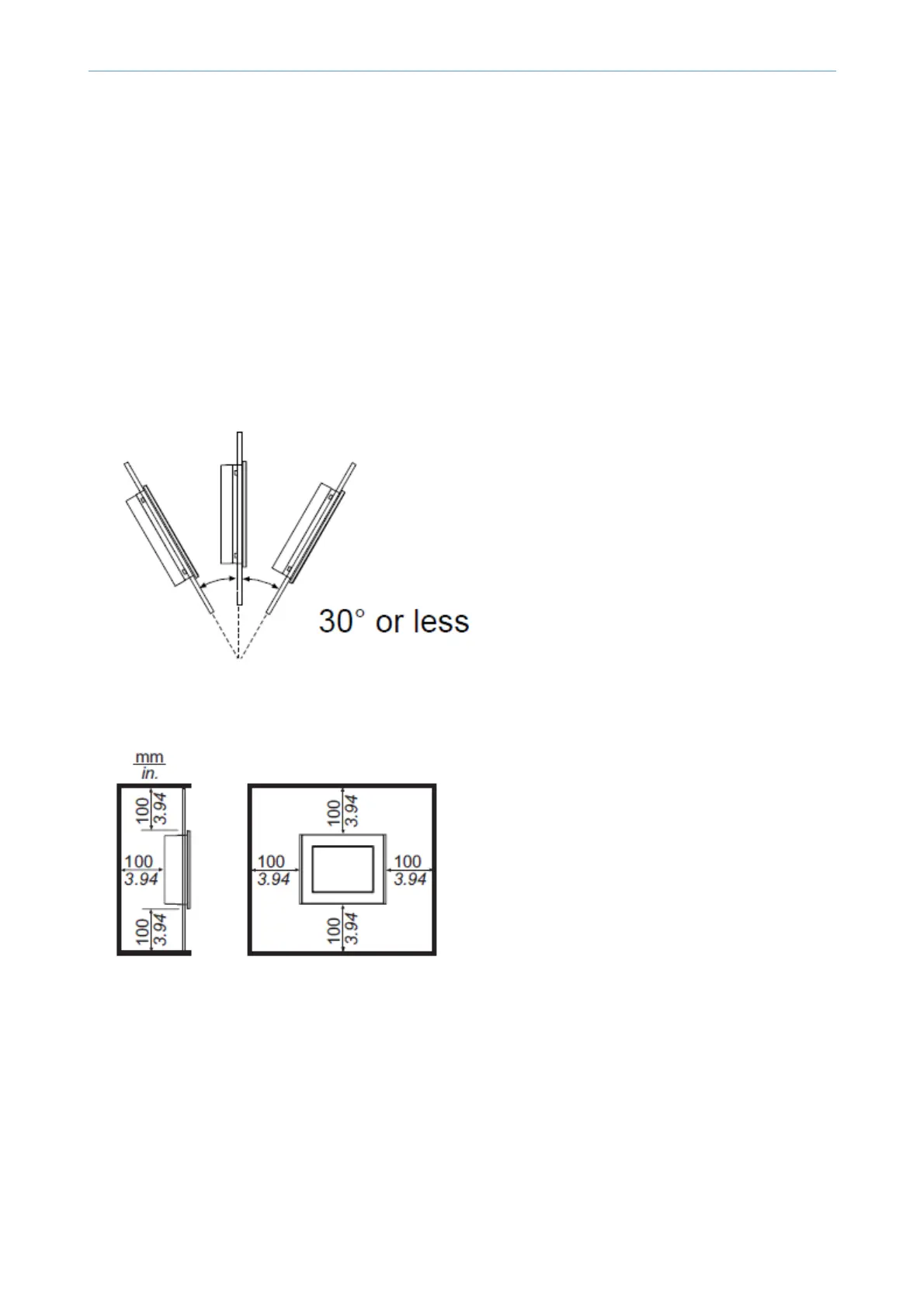

When installing the GP unit in a slanted position, the GP unit face should not incline more than 30°.
For easier maintenance, operation and improved ventilation, install the GP unit at least 100 mm (3.94 in.)
away from adjacent structures and other equipment as shown in the following illustration.
