User Manual – Arenal PCS – QA03-SDA Page 51/74

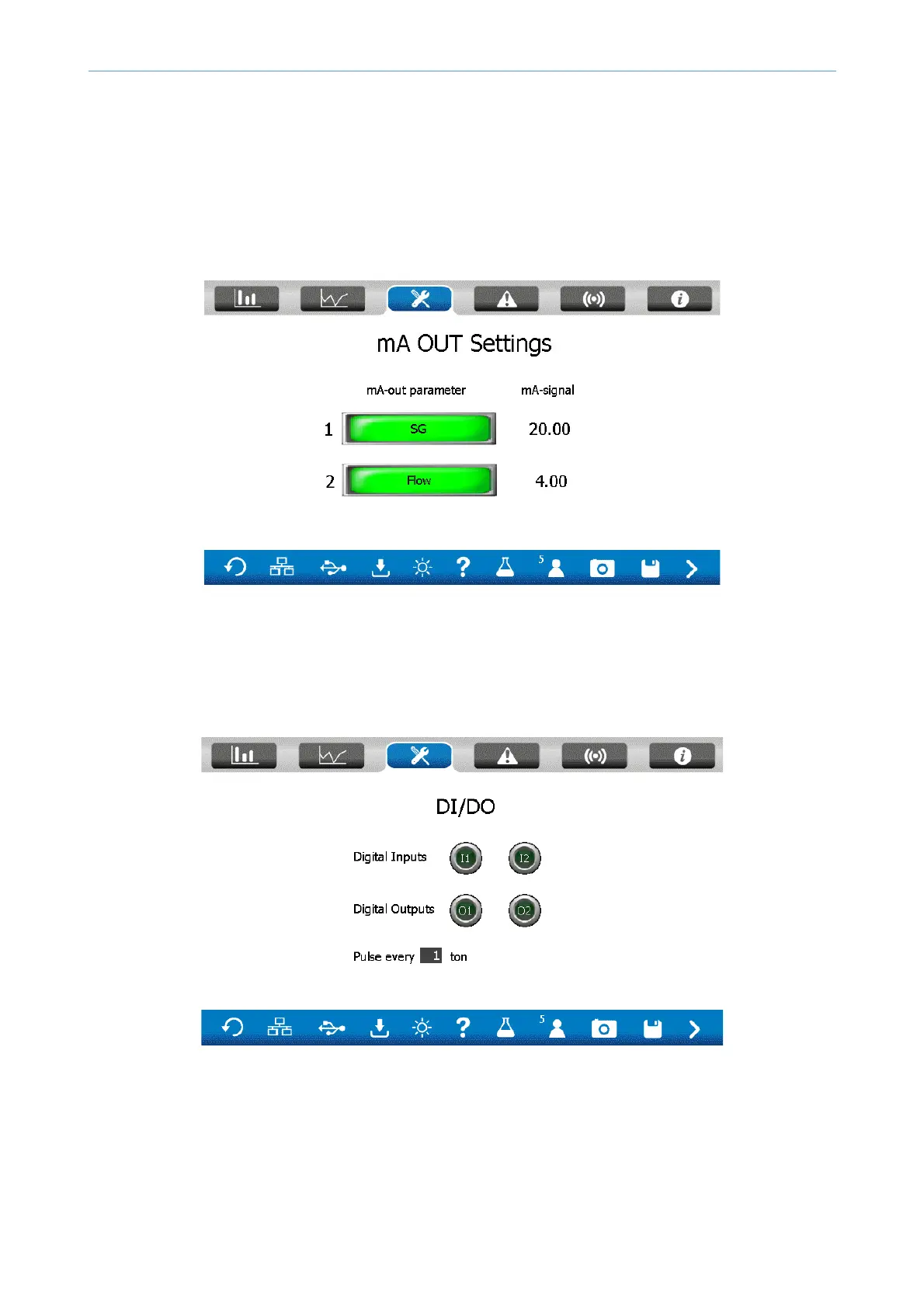

8.2.2 Menu bar: mA OUT Settings
Maximum 2 mA output signals can be configured in the IOM. Select the parameter of interest for
the selected output channel, like SG connected to the AO‐1. Flow to AO‐2.
8.2.3 Menu bar: DI/DO
The QM132‐IOM has digital inputs and outputs.
In this screen the status of each is shown. The lamps will turn ON when high.
The tonnage Dry Solids is available on the open collector output, as per Installation Manual. You
can select for how many tons produced dry solids, a pulse is provided on the output.
