User Manual – Arenal PCS – QA03-SDA Page 25/74

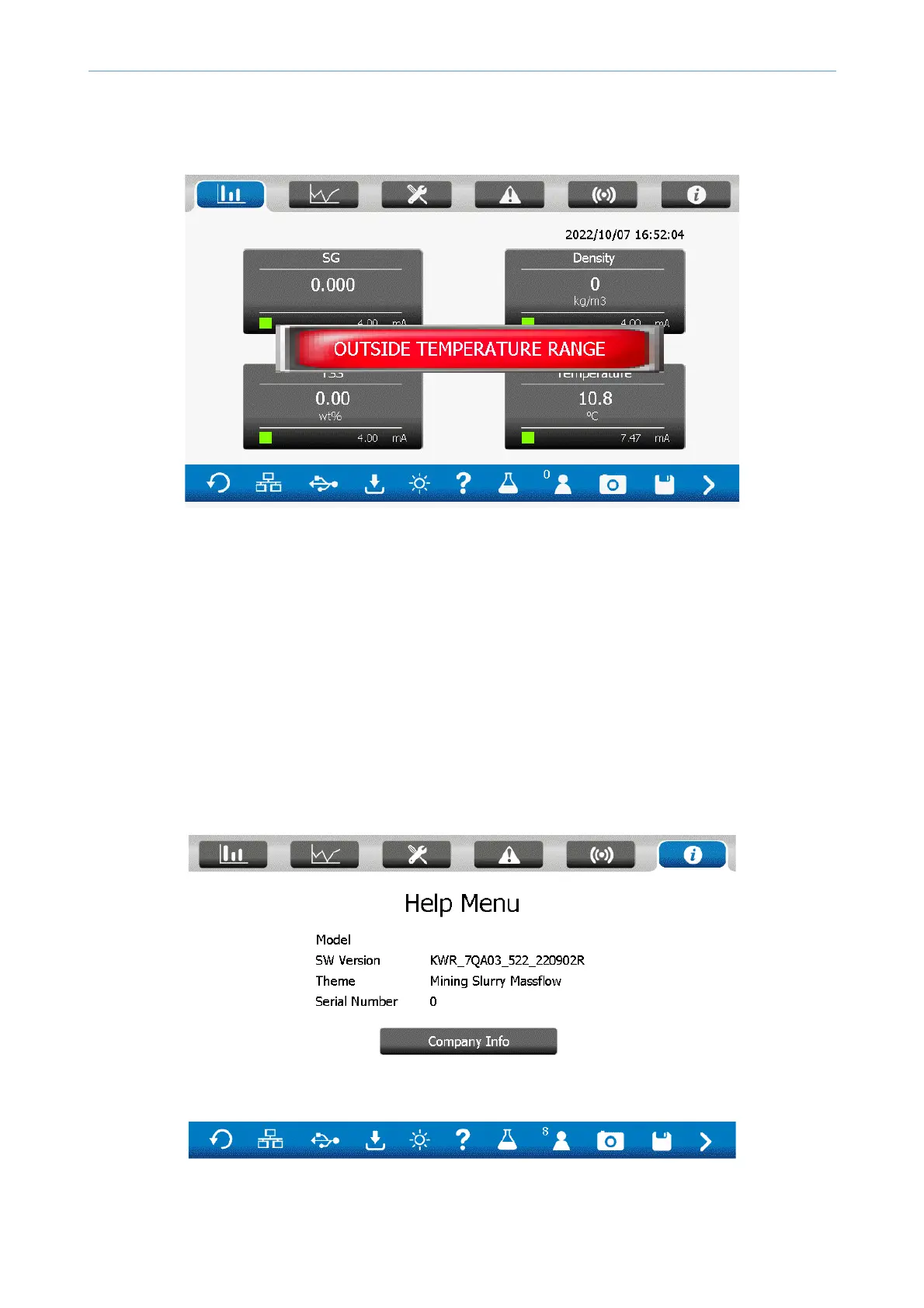

4.7.2 Screen warnings
The QA03 offers some warnings on the screen that will indicate that the unit is running, but will
give wrong values. Example:
When the analyzer is out of its calibrated measurement range, the readings are most likely not
accurate. The reading of Density, SG and TSS% can be inaccurate. To solve this, request a new
calibration from Arenal after consultation. Costs are involved to create new calibration files. This
file shall be added to the USB stick and shall be selected by the user. Alternatively, Arenal can
handle this procedure when the RMM is installed.
Other similar errors are: too low voltage on the flow meter. Check the power supply.
4.8 Help Menu
This is the information and support screen. It gives you information about the model, the software version,
the serial number and distributing company contact details.
