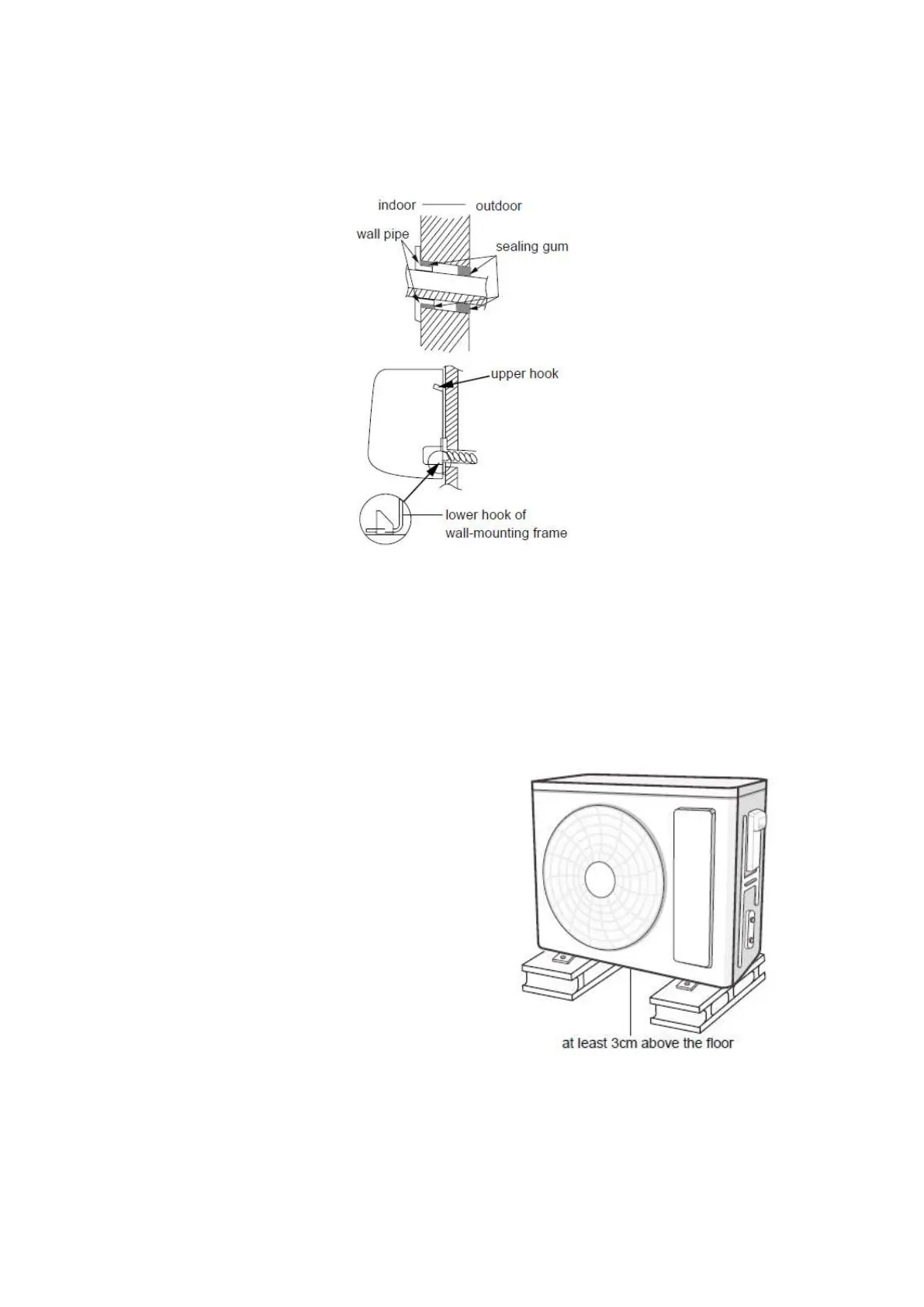

Step nine: hang the indoor unit
1. Insert the bound pipes into the wall pipe and route them through the hole in the wall.
2. Hang the indoor unit on the wall-installation plate.
3. Fill the gap between the pipes and the hole in the wall with sealant.
4. Secure the wall pipe.
5. Check that the indoor unit is securely installed and flush against the wall.
N.B.:
• Avoid bending the drain pipe too much in order to prevent clogging.
Outdoor unit installation
Step one: secure the outdoor unit support
1. Choose a location for the unit according to the structure of the house.
2. Use expansion screws to secure the outdoor unit support in the chosen position.
N.B.:
• Take the appropriate safety measures when
installing the outdoor unit.
• Make sure that the bracket can support at
least four times the weight of the unit.
• The outdoor unit must be connected at least
3 cm above the ground in order to install the
drain joint.
• Units with a cooling capacity of 2300 W –
5000 W require 6 expansion screws; units with
a cooling capacity of 6000 W – 8000 W require
8 expansion screws; units with a cooling
capacity of 10000 W – 16000 W require 10
expansion screws.
Step two: install the drain joint
1. Connect the outdoor drain joint into the hole
on the chassis, as shown below.
2. Connect the drain hose into the drain hole.
Step three: secure the outdoor unit
1. Position the outdoor unit on the support.
2. Secure the foot holes of the outdoor unit with
To Next Page
