Ariens Compact 24 User Manual

GB - 13
1. Gas Tank and Cap
2. Oil Fill and Dipstick
3. Fuel Shut-off Valve
4. Recoil Starter Handle
5. Electric Starter
6. Throttle (Engine Stop)
7. Choke
8. Ignition Switch
9. Primer Bulb
10. Engine Shutoff Switch

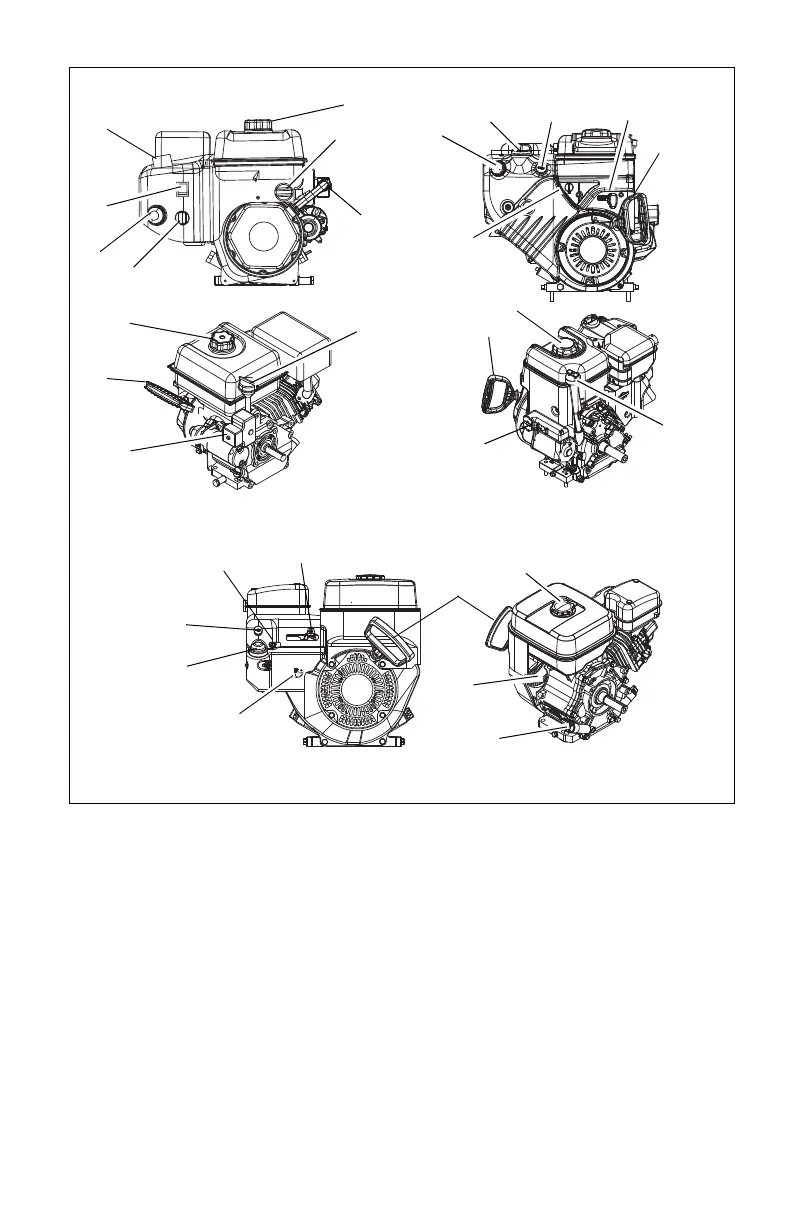

Figure 11
2
5
1
4
9
7
8
3
6
920013 – Subaru
9
920014, 015 – Briggs & Strattion
2
4
1
8
6
7
4
5
3
920012 – Ariens
3
9
8
4
4
1
2
1
5
10
OS8075
OS8077
OS8080
OS8085
OS8090
OS8095
7

Ariens Compact 24 Specifications

General

Clearing Width	24 inches
Engine Power	208cc
Stage Type	Two-stage
Start Type	Electric start
Fuel Type	Gasoline
Engine Displacement	208cc
Drive Type	Wheel Drive
Fuel Tank Capacity	2.9 quarts
Intake Height	20 inches
Auger Material	Steel
Throw Distance	Up to 40 ft
Chute Control	Remote
Transmission	6 forward, 2 reverse
Drive System	Disc-O-Matic
