GB - 21
CHECK CLUTCH OPERATION
Auger / impeller must stop within 5 seconds
when attachment clutch/impeller brake lever
is released.
Wheels must stop quickly when traction drive
clutch lever is released.
If clutches do not engage or disengage
properly, adjust or repair before operation
(see Attachment Clutch/Brake Adjustment on
page 27 and Traction Drive Clutch
Adjustment on page 29).
CHECK CLUTCH SPRING
ADJUSTMENT
Make sure the attachment clutch and traction
drive clutch are adjusted to the range
specified in Attachment Clutch/Brake
Adjustment on page 27 andTraction Drive
Clutch Adjustment on page 29.
CLEAN ENGINE
Refer to Engine Manual for detailed
instructions.
CHECK ENGINE OIL
The engine crankcase oil should be checked
every 5 hours of operation. Oil level MUST be
maintained in safe operating range on
dipstick at all times or engine damage will
result (See Engine Manual).
Park unit on a level surface. Refer to Engine
Manual for detailed instructions.
CHANGE ENGINE OIL
Change oil after first 2 hours of operation,
thereafter change oil every 25 hours (more
often if required). Refer to Engine Manual for
detailed instructions.
Run engine just prior to changing oil. Warm
oil will flow more freely and carry away more
contamination. Remove the oil drain plug
from the rear of the unit and tip the unit back
to help drain all the oil.
CHECK TIRE PRESSURE
Keep tires at pressure listed on the tire
sidewall. (see Check Tire Pressure on
page 11).
CHECK AUGER GEARCASE
(Figure 17)
IMPORTANT: Proper oil level must be
maintained.
Gear cases are filled to the correct level at
the factory. Unless there is evidence of
leakage, no additional lubricant should be
required. Check oil level each season or
every 25 hours of operation.
To ensure adequate lubricant level:
1. Remove filler plug (Figure 17). Lubricant
must be at least up to bottom of lubricant
filler hole with unit resting on a level-
surface.
2. Add lubricant if required. Allow oil to
drain to level of plug and replace plug.
IMPORTANT: Use only Ariens L-3 synthetic
severe duty gear lube (Part Number
00068800).
NOTE: Gearcase filler plug may require an
application of Loc-Tite® 565 thread sealant
with repeated servicing. If Loc-Tite® 565 is
not available, use PTFE pipe sealing tape on
the filler plug.

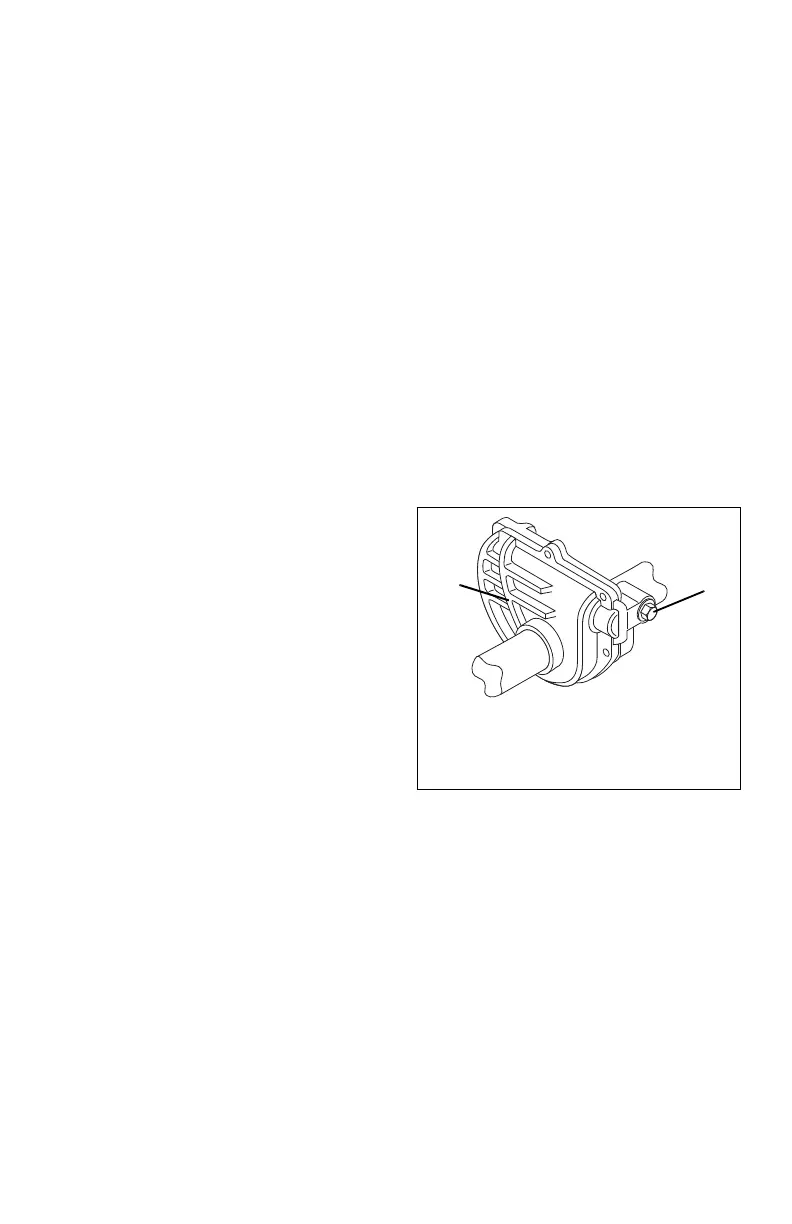

Figure 17
1. Auger Gearcase
2. Filler Plug
OS8195
