GB - 8
For extended storage, clean unit thoroughly.
See Engine Manual for proper storage.
Use only attachments or accessories
designed for your unit.
Check components frequently. If worn or
damaged, replace with manufacturer’s
recommended parts.
PACKAGE CONTENTS
ASSEMBLY
Tools Required:
• Pliers
• Open-End Wrenches: 3/8, 7/16, 1/2,
9/16 in. and/or Adjustable Wrench
•Tire Gauge
Unfold Handlebar
(Figure 4)
1. Remove the lower and loosen the upper
hardware on the handlebar assembly.
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the sixth
forward position.
4. Rotate the handlebars into operating
position.
NOTE: Be careful not to damage cable spring
hooks when rotating handlebars upward.
5. Install and tighten the hardware on the
handlebar assembly and shift rod.
.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.

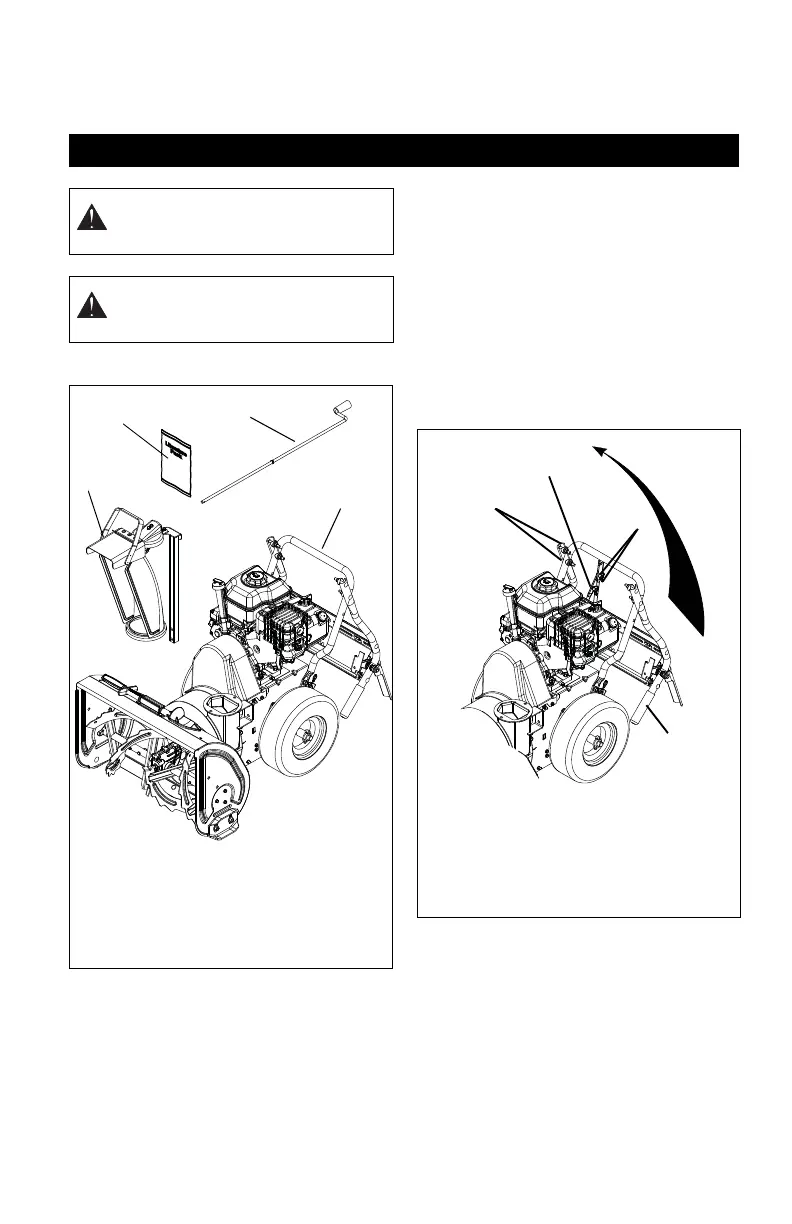

Figure 3
1. Sno-Thro Unit
2. Discharge Chute
3. Chute Crank
4. Literature Pack with Extra Shear Bolts
1
2
4
3
OS8020
Figure 4
OS8040
1
2
3
1. Shift Rod
2. Upper and Lower Handlebar
Hardware
3. Shift Rod Hardware
4. Handlebar
4
