GB - 9
Install Headlight (920012, 014, 015)
(Figure 5)
1. Remove headlight from location under
dash panel. Keep nut for installation.
2. Attach headlight to bolt on right side of
the dash. Fasten with nut removed in
step 1.
3. Plug wireharness into headlight.
.
Install Discharge Chute
(Figure 6)
1. Grease underside of discharge chute
ring (if not already greased).
2. Remove mounting hardware from the
bottom of the chute pedestal mount.
3. Install discharge chute over opening in
the auger housing and secure pedestal
to auger housing with hardware
removed in step 2.
Install Discharge Chute Crank
(Figure 7)
1. Slide Chute Crank through the opening
in the control panel.
NOTE: Be careful not to damage nylon
bushing when attaching crank to the dash.
2. Connect the chute crank to the pinion
gear on discharge chute with hairpin.

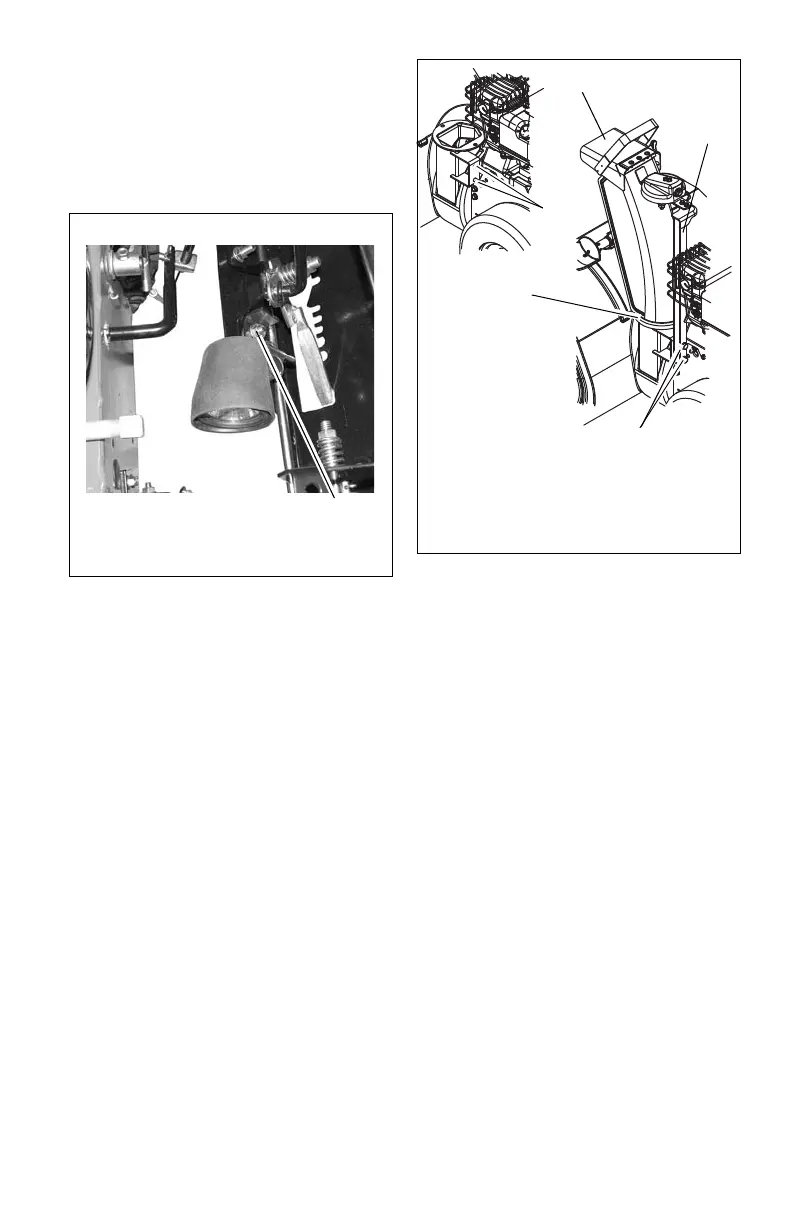

Figure 5
Remove nut to detach headlight from under
dash. Keep nut to mount light on unit.
Light Shipping Location
OS8045
Figure 6
4
1
3
2
1. Mounting Hardware
2. Discharge Chute
3. Discharge Chute Ring
4. Chute Pedestal
1
OS8050
To Next Page
