Ariens Razor Push Service Guide

EN – 20
3. Rotate clutch actuating lever clockwise to remove
tension from clutch cable spring and remove spring
from lever. See Figure 44.
4. Remove clutch cable from deck.
5. Return unit to operating position.
6. Remove hardware retaining blade-brake clutch lever
and remove lever from handlebar. See Figure 45.
Install Blade-Brake Clutch Lever
1. Secure blade-brake clutch lever to handlebar with one
machine screw. See Figure 45.
2. Route clutch cable down handlebar and through hole
in deck top. See Figure 46.
3. Place unit in service position.

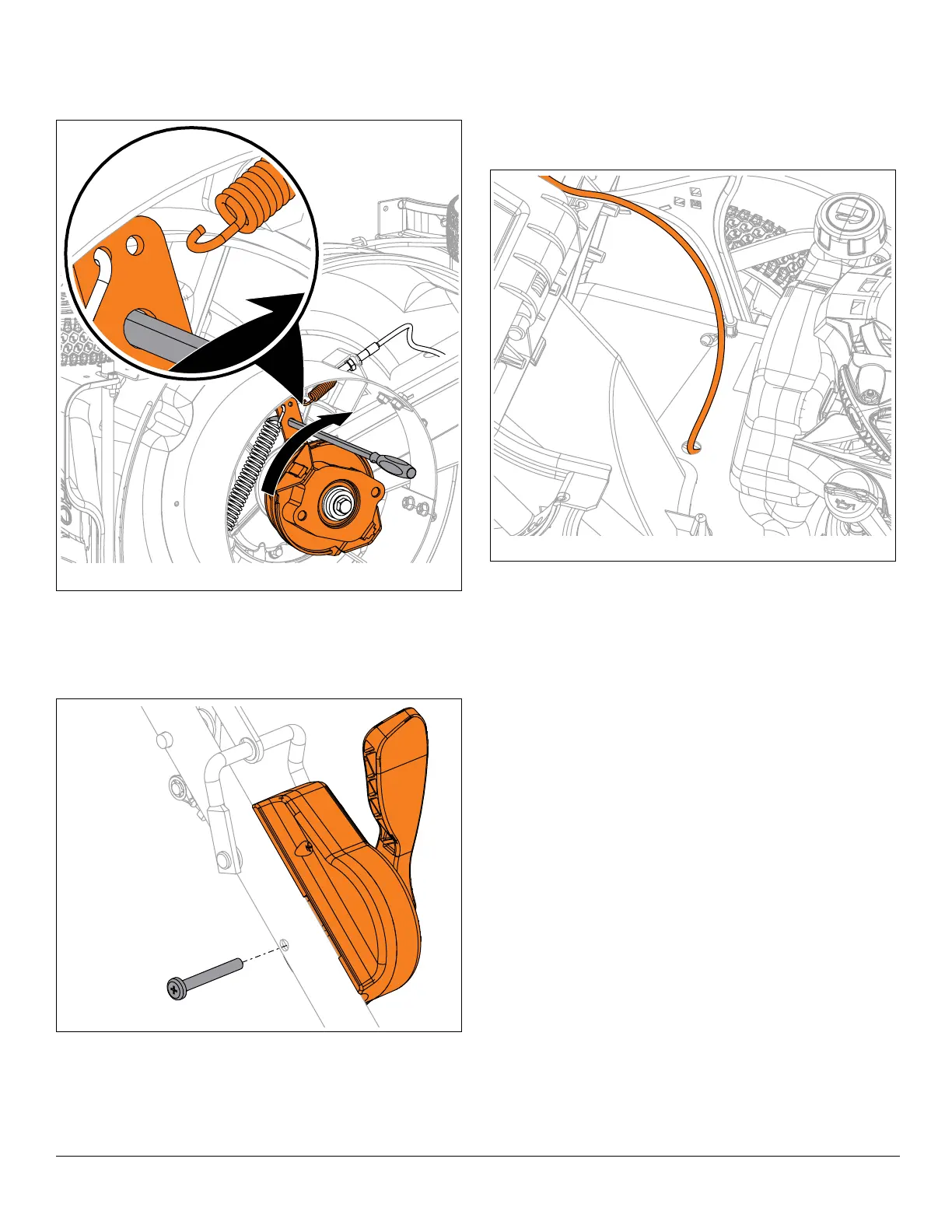

Figure 44
Figure 45
Figure 46
