Ariens Razor Push Service Guide

EN – 14
Install Drive Belt
See Figure 25.
1. Install belt onto drive pulley.
2. Secure belt guide to gearbox with three Torx screws.
See Figure 26.
3. Return rear axle assembly into original position and
secure each axle hub to deck with two tapping screws.
4. Route belt through deck channel.
See Figure 27.
5. Position belt around crankshaft.
6. Align engine sheave keyway with crankshaft key and
reinstall engine sheave onto crankshaft.
7. Install belt onto engine sheave. See Figure 28.
8. Secure each inner belt guide to deck with one tapping
screw. See Figure 17.
IMPORTANT: Models 911175, 911179, 911188, 911190,
911375, 911379: Continue to step 9.
Models 911177, 911189: Advance to step 13.

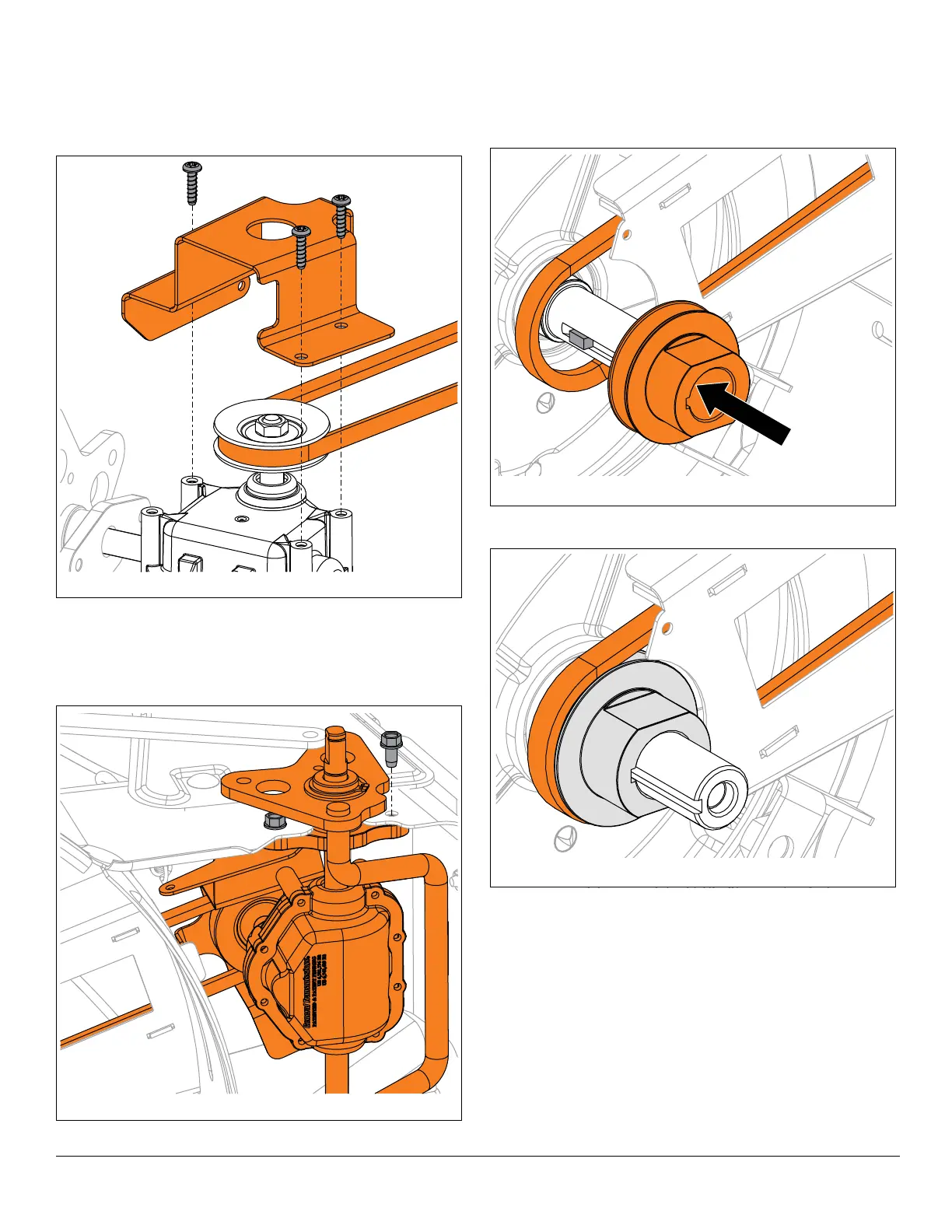

Figure 25
Figure 26
Figure 27
Figure 28
