Ariens Razor Push Service Guide

EN – 11

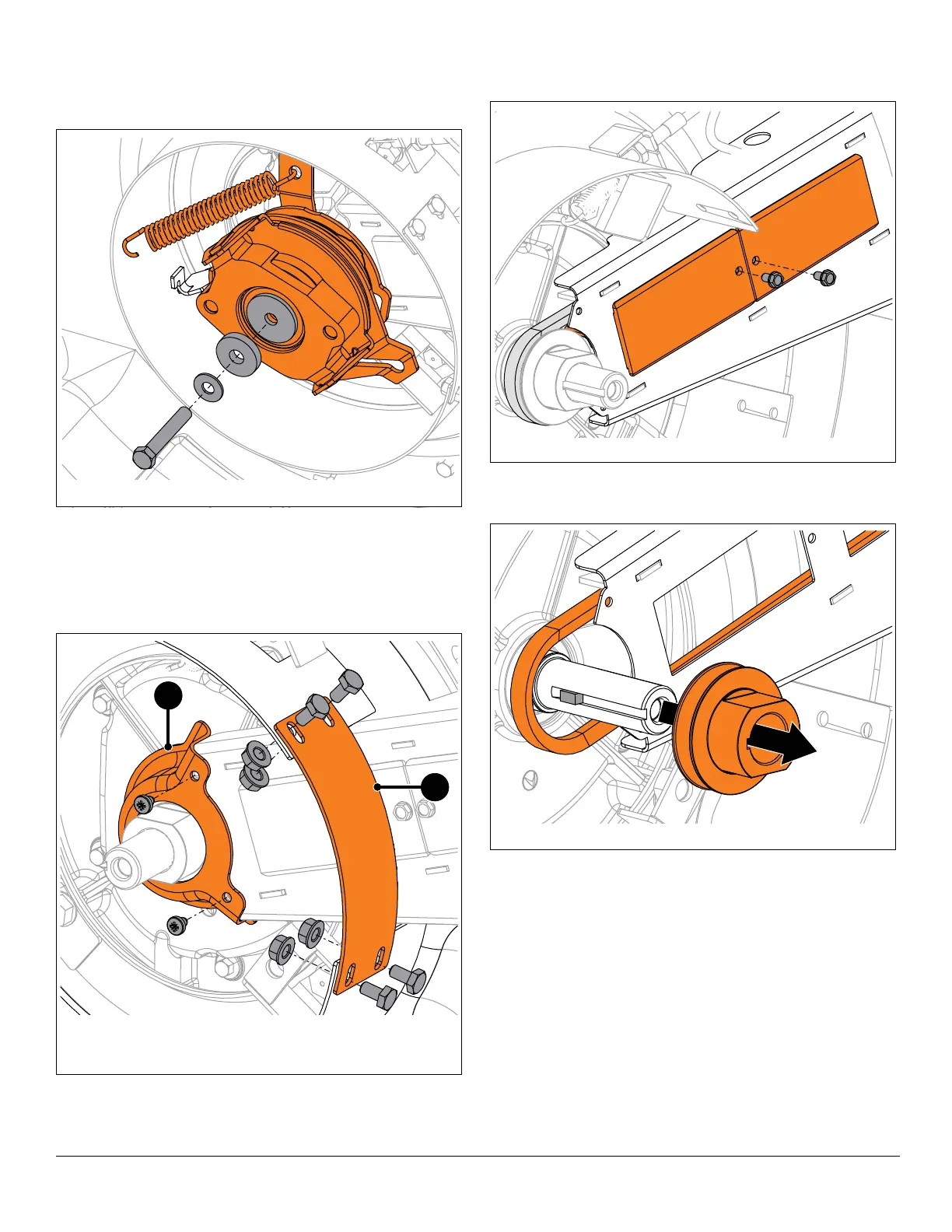

See Figure 15.
21. Remove clutch spring from spring anchor.
22. Remove hardware retaining clutch and remove clutch.
See Figure 16.
23. Remove hardware retaining outer belt guide and
remove belt guide.
24. Remove hardware retaining clutch baffle and remove
baffle.
25. Remove hardware retaining inner belt guides and
remove guides. See Figure 17.
26. Remove belt from engine sheave and remove engine
sheave from crankshaft. See Figure 18.
Figure 15
Figure 16
1. Belt Guide
2. Clutch Baffle
1
2
Figure 17
Figure 18
