Aries AL234046 - Installation Steps; Step 1: Locate Mounting Tabs; Step 2: Attach Driver Side Bracket; Step 3: Secure Bracket with Clip Nut

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • AL234046-INS-RA • PAGE 2

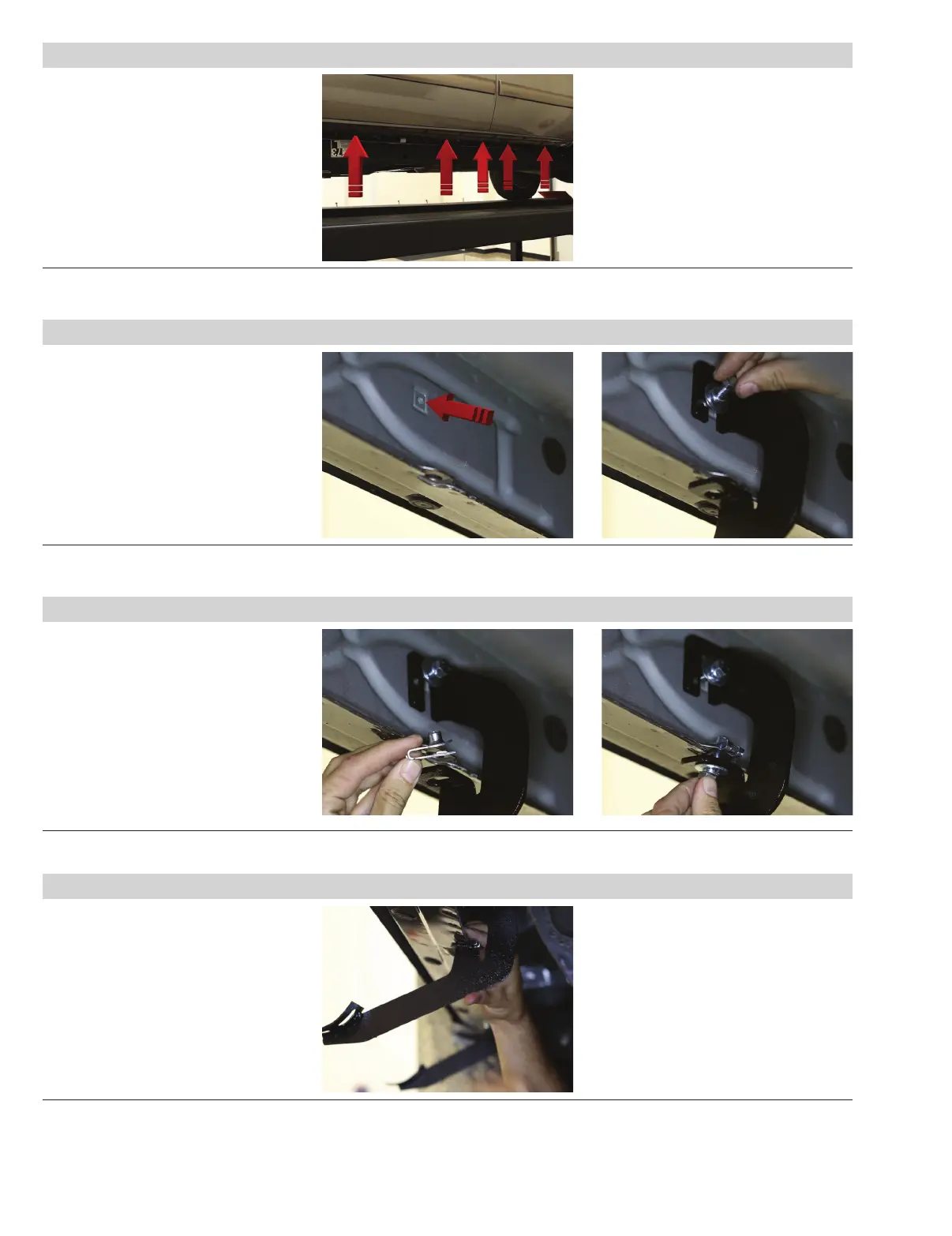

Step 1
Locate the five mounting tabs along
the bottom edge of the vehicle body.
This installation will use the first,
third and fifth mounting tabs.
Step 2
Starting at the front driver side mounting
location, locate the threaded hole
on the inside of the body panel.
Attach a universal mounting bracket to
the body panel using an 8mm hex bolt
with a lock and flat washer.
Snug the hardware,
but do not fully tighten
Step 3
Rotate the bottom of the bracket
to the side to expose the hole in
the mounting tab.
Slide an 8mm clip-nut over the
mounting tab and rotate the bracket
back into position.
Secure the bracket with a second
M8 hex bolt, lock washer and flat washer.
Snug the hardware,
but do not fully tighten
Step 4
Repeat steps 2 and 3 to install the
second bracket over the third
mounting tab location from step 1.
