Installation Instructions:
THE GUARANTEE IS SUBJECT TO CORRECT INSTALLATION.
The instant water heater is a novel appliance designed to supply hot water instantly while conserving
energy. When the pressure switch is on, then the heating element heats the flowing water.
General information
1. The appliance must be installed and commissioned by a qualified technician in accordance with
established regulations and local health and safety regulations.
2. It is recommended that a residual current device(ELCB)will be incorporated in the circuit.
3. Installation of water pipeline must be completed prior to the installation of the heater and must be
checked to assure that there are no water leaks.
4. This appliance requires water pressure of minimum 0.3 bar. The appliance must be installed
horizontally where water supply comes from the left side.
5. WARNING! You must use only the supplied outlet accessories. The water outlet should always be
left open as the operating principle is based on an open water outlet.
6. Without supervision the use of the appliance by young children or infirm person is forbidden.
Playing with the unit by young children is forbidden.
Installation of sink& shower unit 3 kW - 9.5 kW
1. The shower unit should be installed on the wall.
2. Remove cover in order to connect the electric cable to the terminal block inside the unit.(unscrew
4 screws)
3. The unit should have a separate electric cable in the switch board (see table 2)
4. The recommended electric cable for 2-Phase unit up to 9.5kW is 5 x 4.0mm
2
5. A 110V/5kW device must be connected to a separate 40A fuse and a feeding cable
of 3X6 mm
2
.
6. Connect the appliance to the water network and check if there are no leaks as soon as the unit is
connected. Use the hoses supplied with the appliance, do not re-use old hoses
7. After connecting the water inlet to the unit, connect the electric cable to the designed terminal
blocks. The appliance must be earthed and the earth cable (show with a letter in the drawing) is
fixed to the terminal marked by the symbol
.
WARNING! The appliance must be grounded
8. The unit must be connected to the electric supply by a 2-pole
switch (for one phase unit) and to the multi-pole switch (in
case of multi phase unit)
9. Before performing any operations, disconnect the appliance
from the electricty mains using the external switch then
connect the power to cable to the appliance.
10. Connect the electric cable with the designated clamp.
11. Return the cover (4 screws)
AURES
SLIM

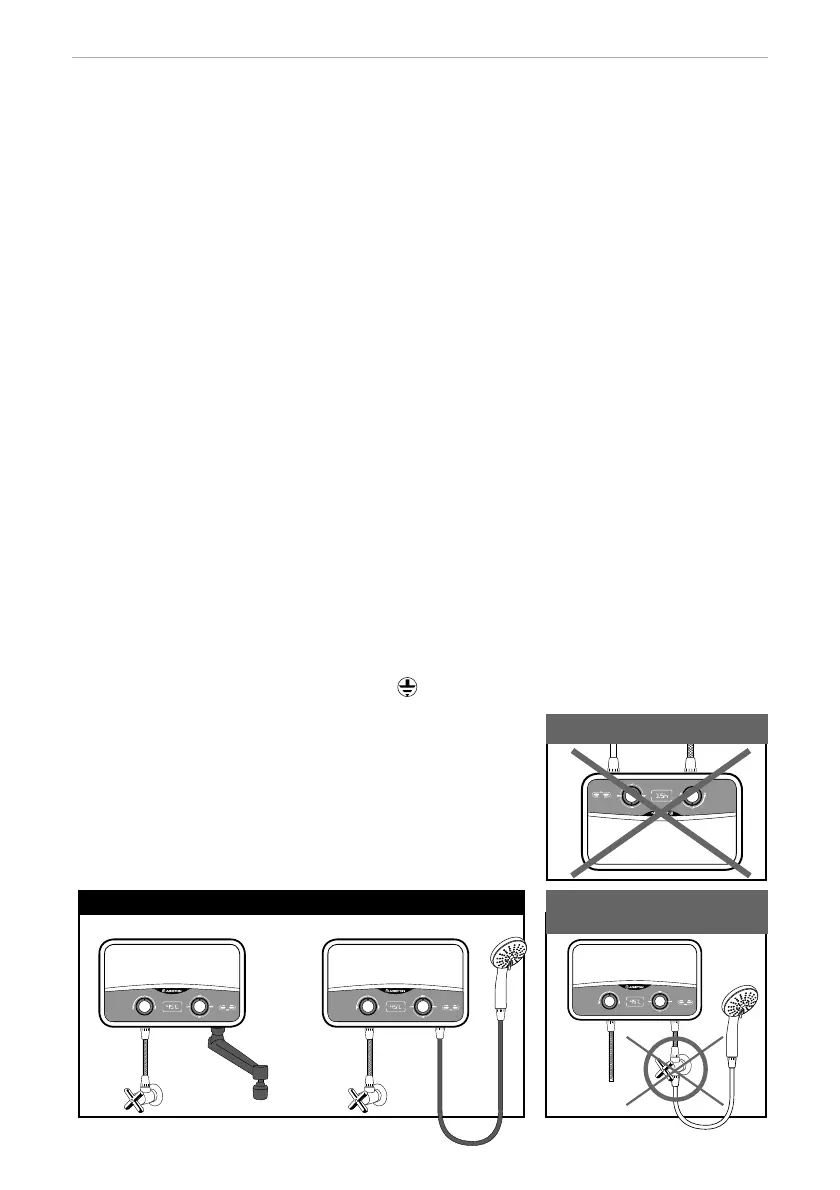

Incorrect Installation
Danger!!!
Incorrect Installation
Correct Installation
AURES
SLIM
Water
Inlet
Water
Inlet
Water
Outlet
Sink Shower
Water
Outlet
Faucet Faucet
AURES
SLIM
AURES
SLIM
